Introduction
We compare post-processed results with the original results: https://sq-96.github.io/multigroup_ctwas_analysis/multi_group_6traits_15weights_ess.html
The post-processing steps include the following:
Region Merging
For the regions with
susie_pip > 0.5LD Mismatch Fixing
- Regions were selected where nonSNP_PIP > 0.5.
- For genes with
susie_pip > thresholds(0.5 and 0.2), we performed LD mismatch diagnosis. - To address LD mismatches, two strategies were employed:
- Fine-mapping the region without LD.
- Removing mismatched SNPs for all genes in the problematic regions, updating gene Z-scores, re-estimated L, and re-fine-mapping with LD.
The problematic regions here are the regions 1) reported by
diagnose_LD_mismatch_susie function & 2) containing at
least 1 problematic genes reported by get_problematic_genes
function.
library(ctwas)
library(EnsDb.Hsapiens.v86)
library(ggplot2)
library(gridExtra)
library(dplyr)
ens_db <- EnsDb.Hsapiens.v86
mapping_predictdb <- readRDS("/project2/xinhe/shared_data/multigroup_ctwas/weights/mapping_files/PredictDB_mapping.RDS")
mapping_munro <- readRDS("/project2/xinhe/shared_data/multigroup_ctwas/weights/mapping_files/Munro_mapping.RDS")
mapping_two <- rbind(mapping_predictdb,mapping_munro)aFib-ebi-a-GCST006414
trait <- "aFib-ebi-a-GCST006414"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5

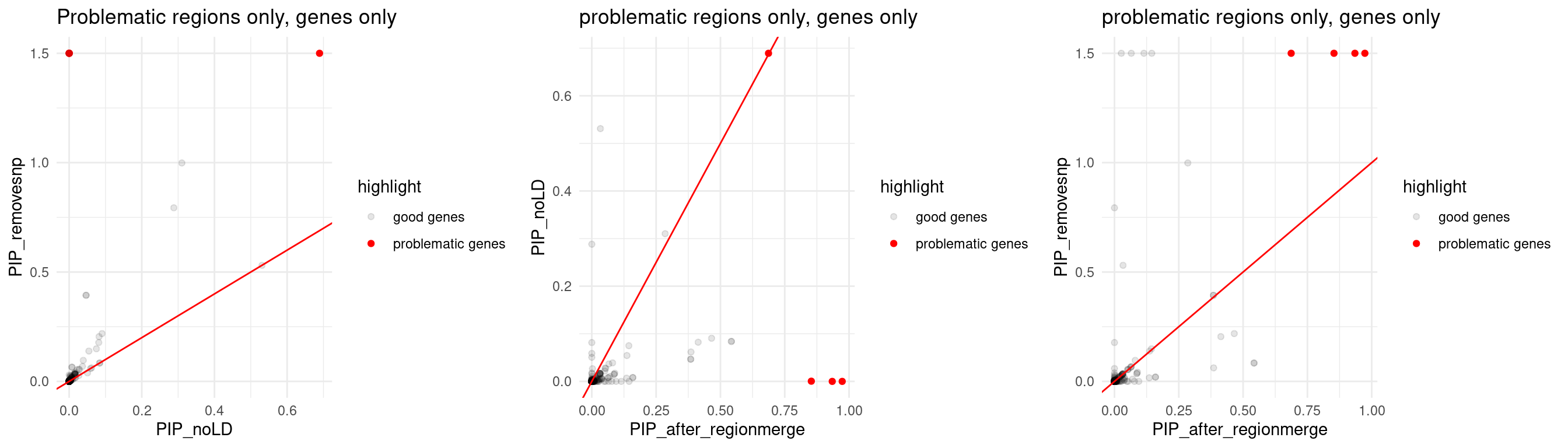

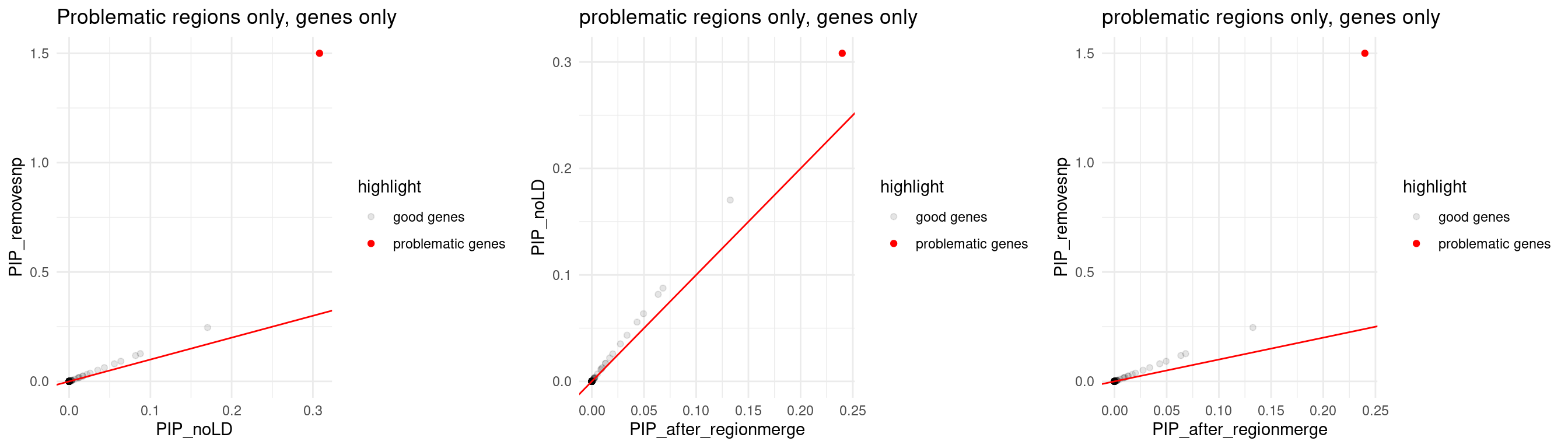

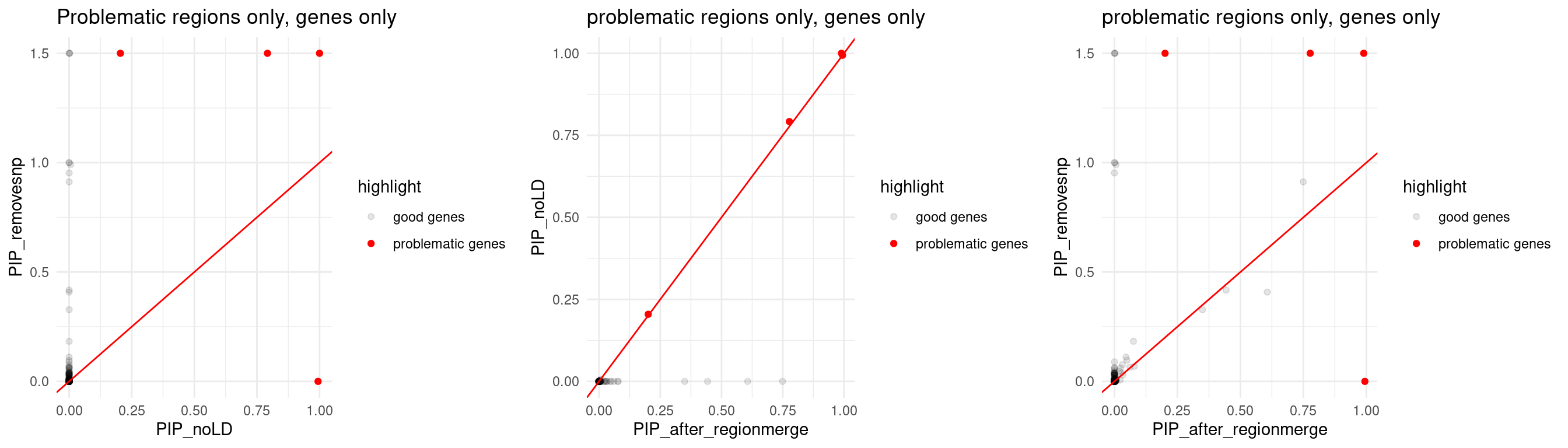

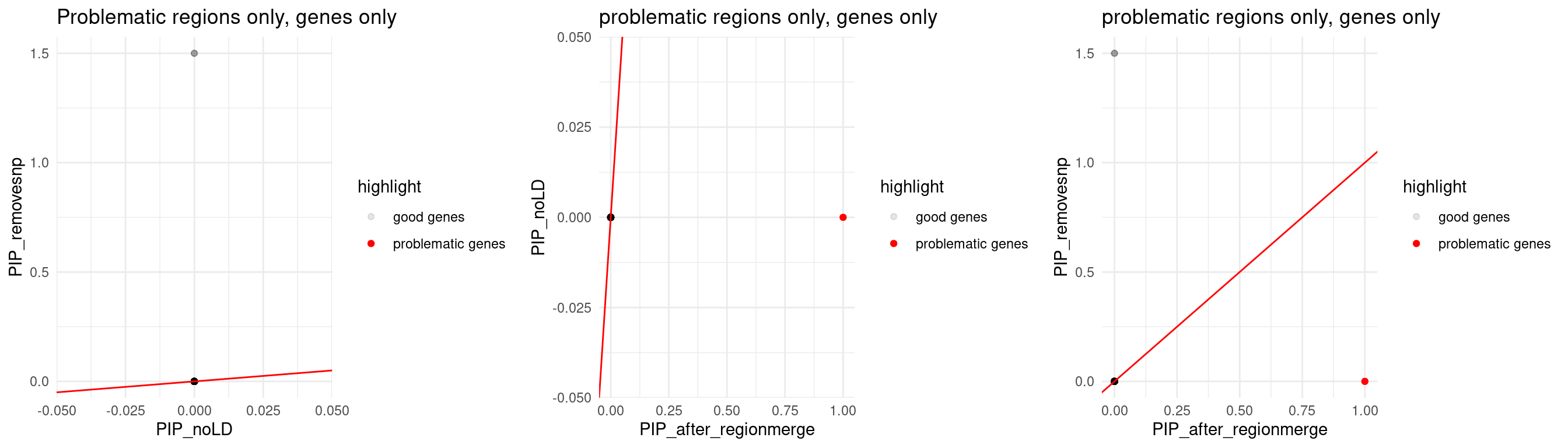

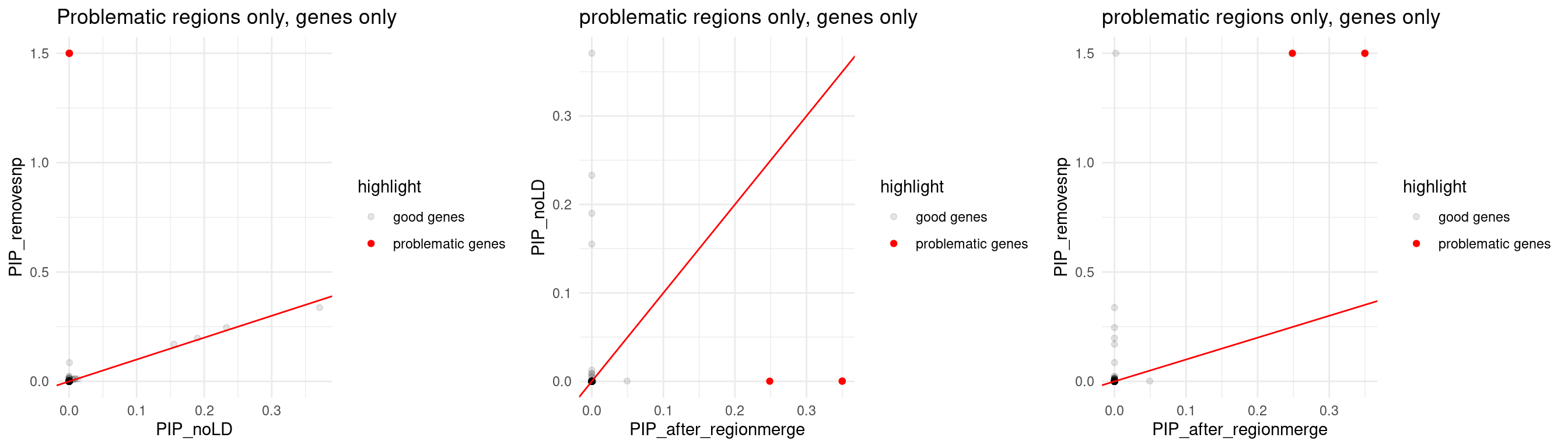

p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "Total number of molecular traits in problematic regions = 1516"
[1] "Number of molecular traits disappeared after removing prblematic SNPs = 8"
[1] "The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic"
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |

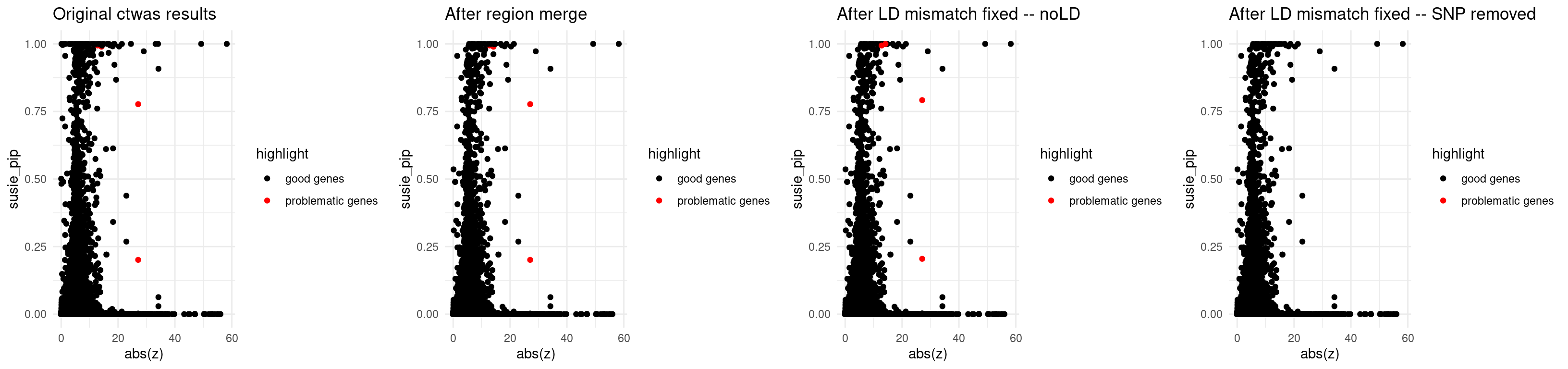

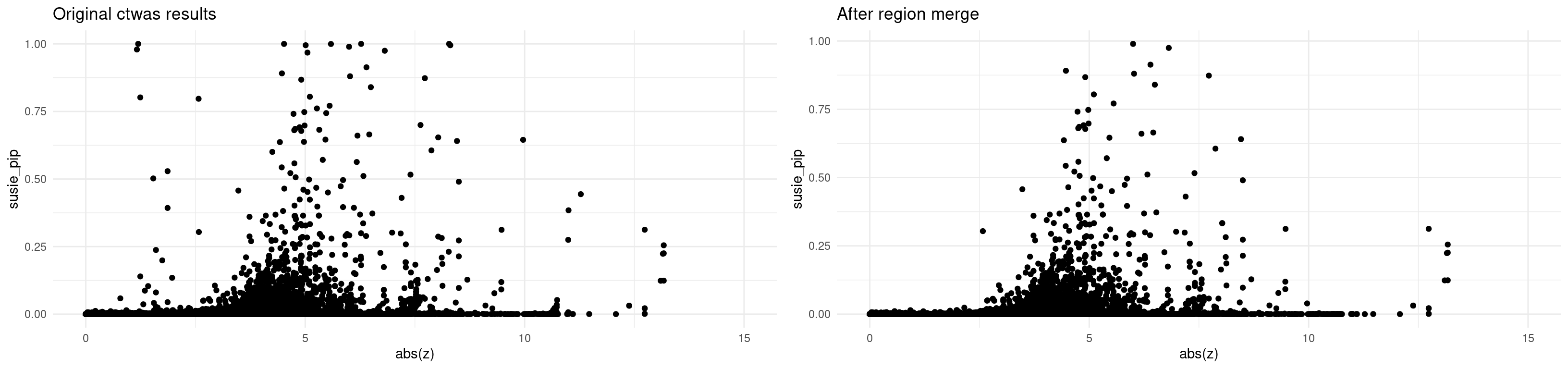

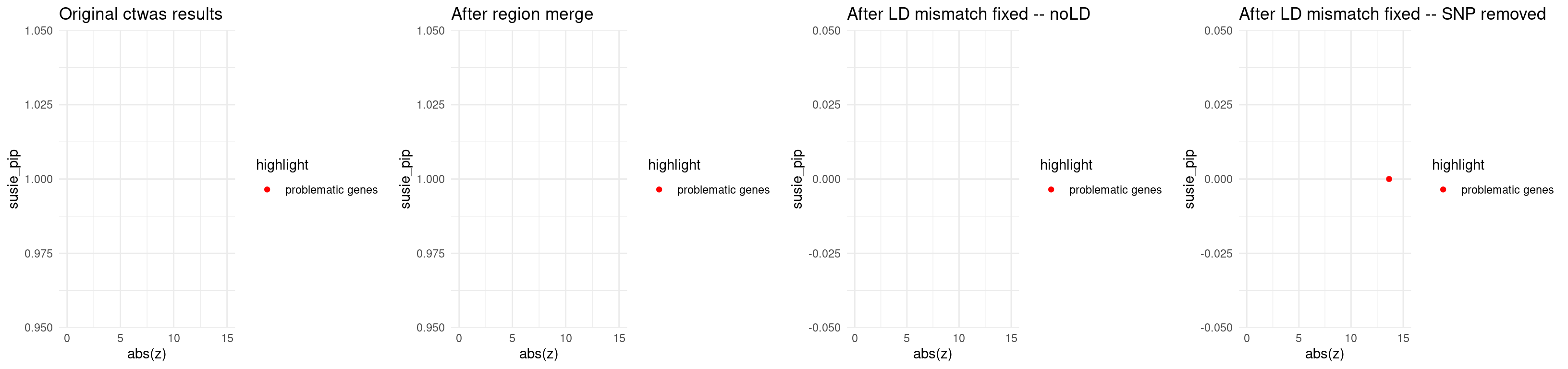

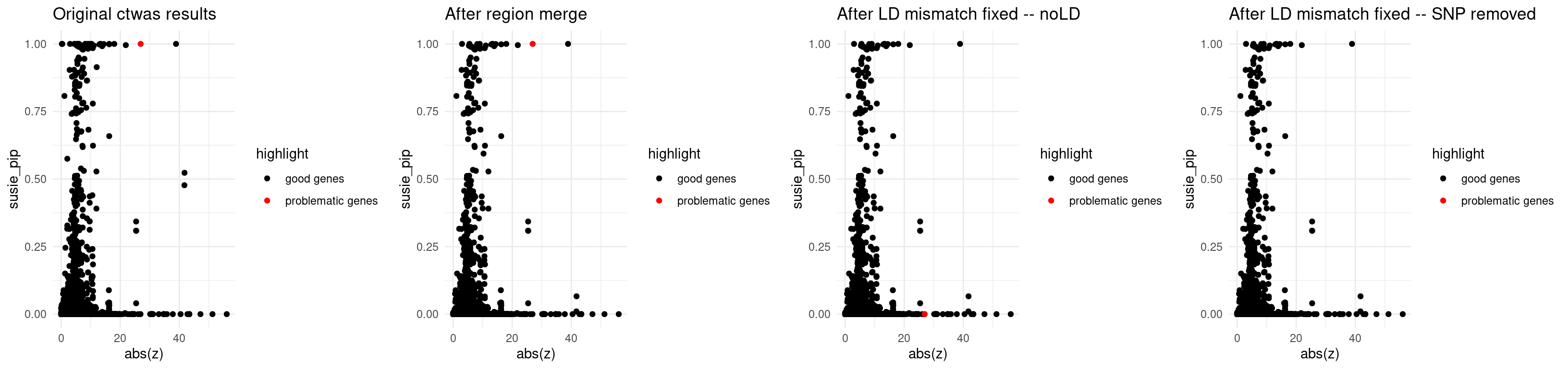

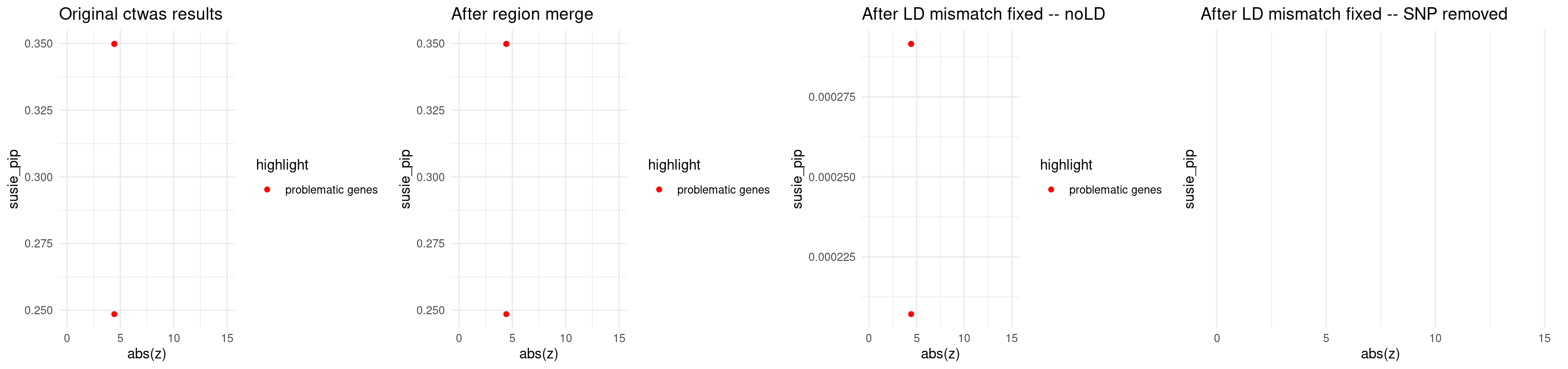

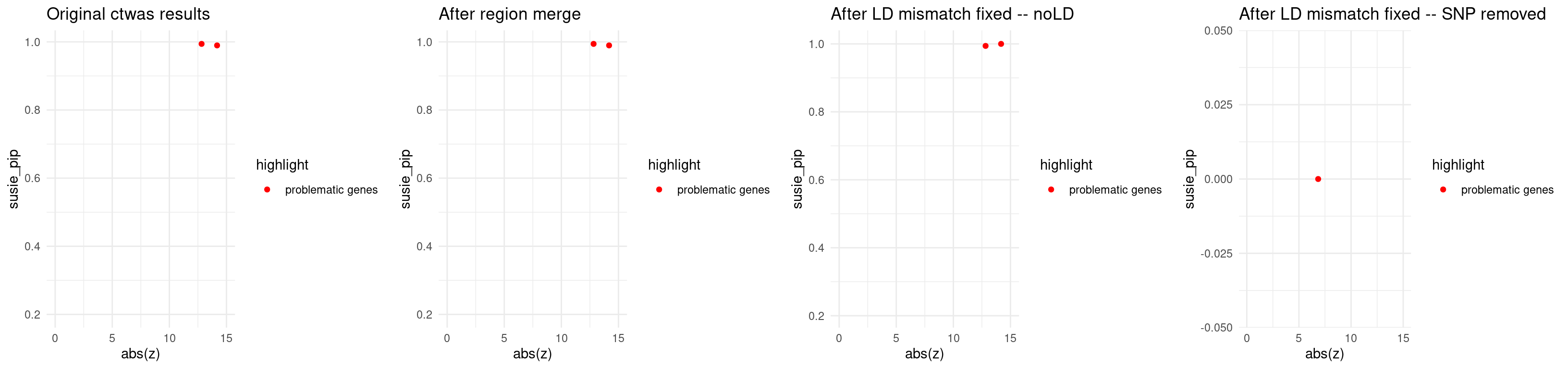

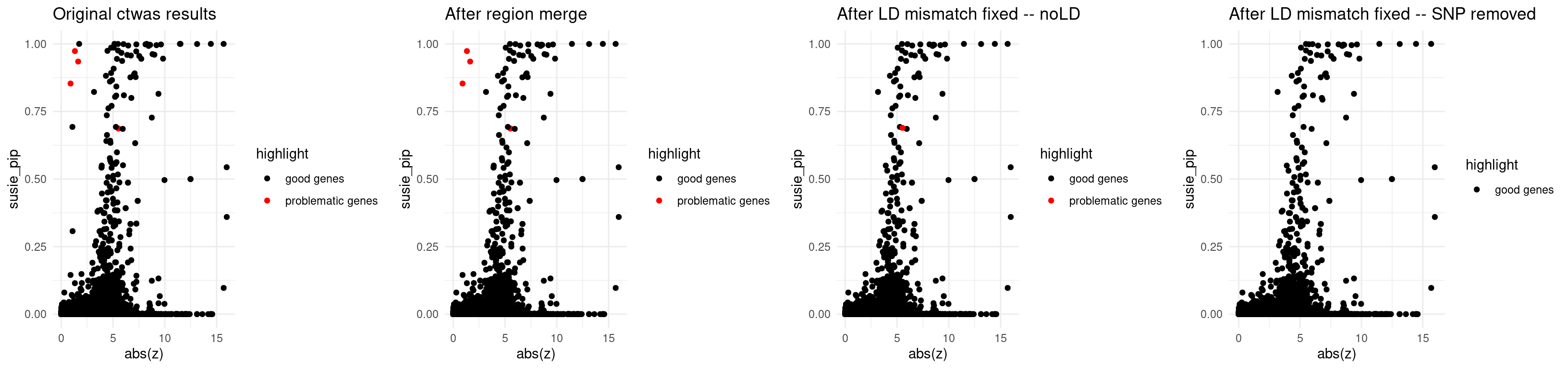

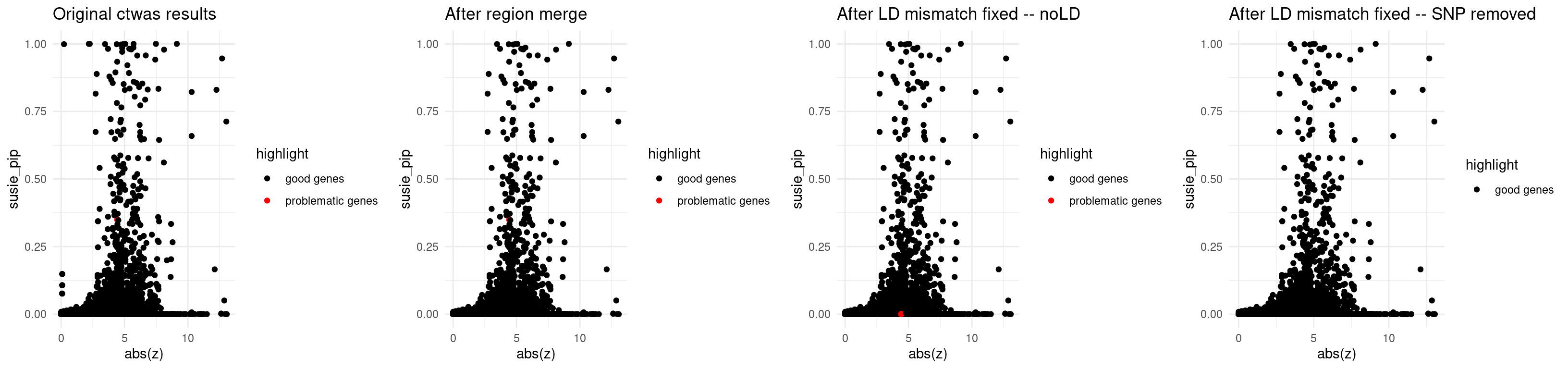

Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{

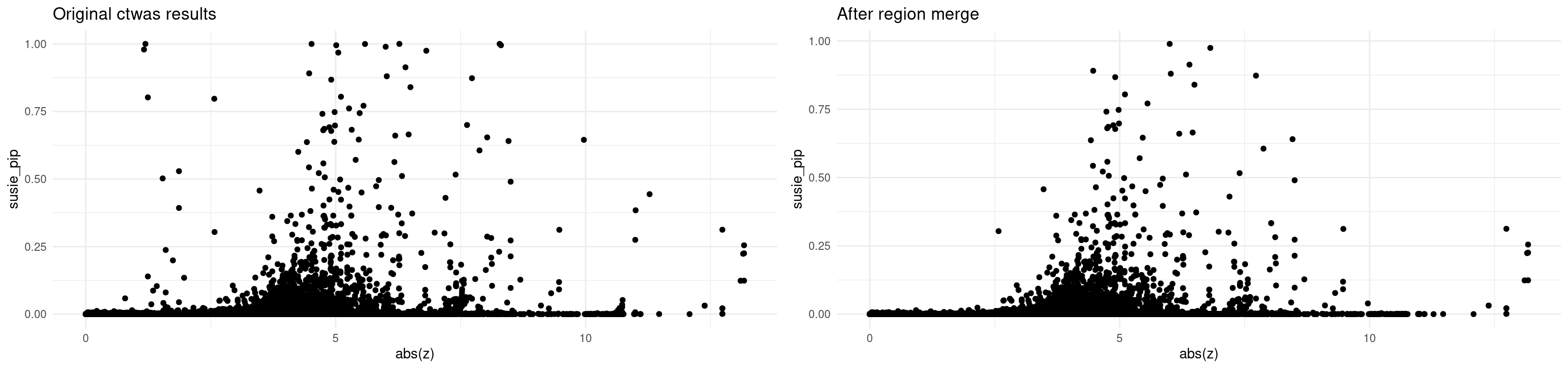

print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
[1] "L - estimated in region merge step"
3_110794923_113096852 10_110801735_113568673 11_116512631_117876395
3 3 3
12_121569746_124493434
5
[1] "L - re-estimated after updating z_scores, region data"
3_110794923_113096852 10_110801735_113568673 11_116512631_117876395
2 1 1
12_121569746_124493434

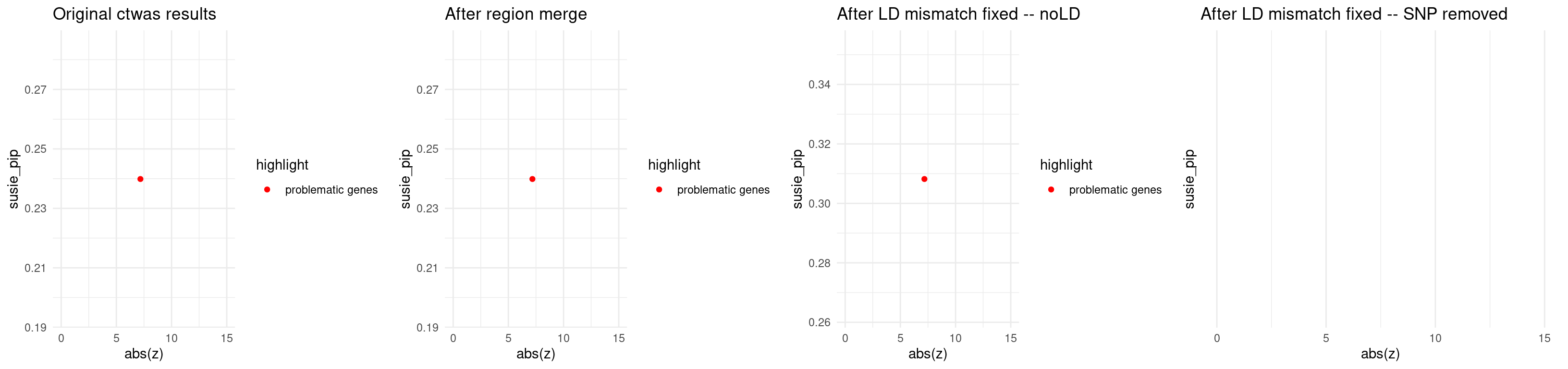

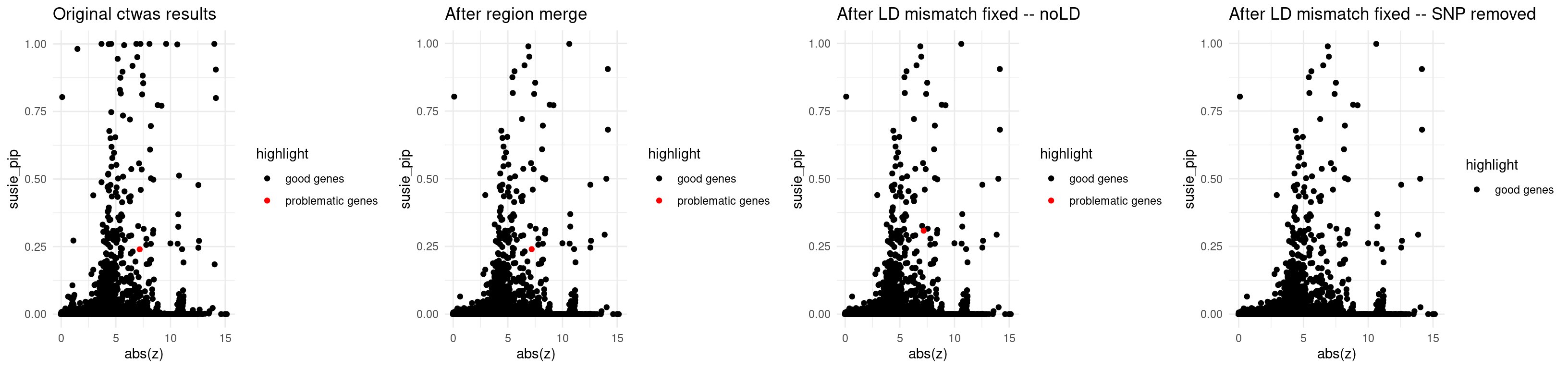

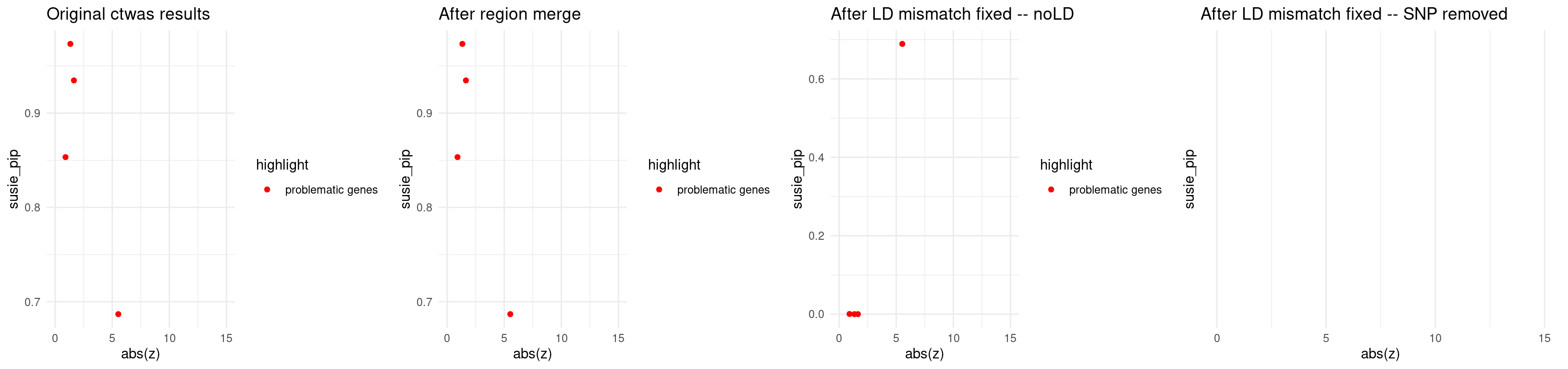

3 print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Examples for LD-mismatch fixing
weights_origin <- readRDS(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/",trait,".preprocessed.weights.RDS"))
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_weights_updated_nozfilter_",trait,".rdata"))
region_id <- "10_110801735_113568673"
finemap_res_rm <- anno_finemap_res(finemap_res_rm,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:44:48 INFO::Annotating fine-mapping result ...
2024-12-19 14:44:48 INFO::Map molecular traits to genes
2024-12-19 14:44:49 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:44:57 INFO::Add gene positions
2024-12-19 14:44:57 INFO::Add SNP positionsfinemap_res_ldmm_nold <- anno_finemap_res(finemap_res_ldmm_nold,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:45:08 INFO::Annotating fine-mapping result ...
2024-12-19 14:45:08 INFO::Map molecular traits to genes
2024-12-19 14:45:09 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:45:14 INFO::Add gene positions
2024-12-19 14:45:15 INFO::Add SNP positionsfinemap_res_ldmm_removesnp <- anno_finemap_res(finemap_res_ldmm_removesnp,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:45:21 INFO::Annotating fine-mapping result ...
2024-12-19 14:45:21 INFO::Map molecular traits to genes
2024-12-19 14:45:22 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:45:24 INFO::Add gene positions
2024-12-19 14:45:24 INFO::Add SNP positionsfinemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

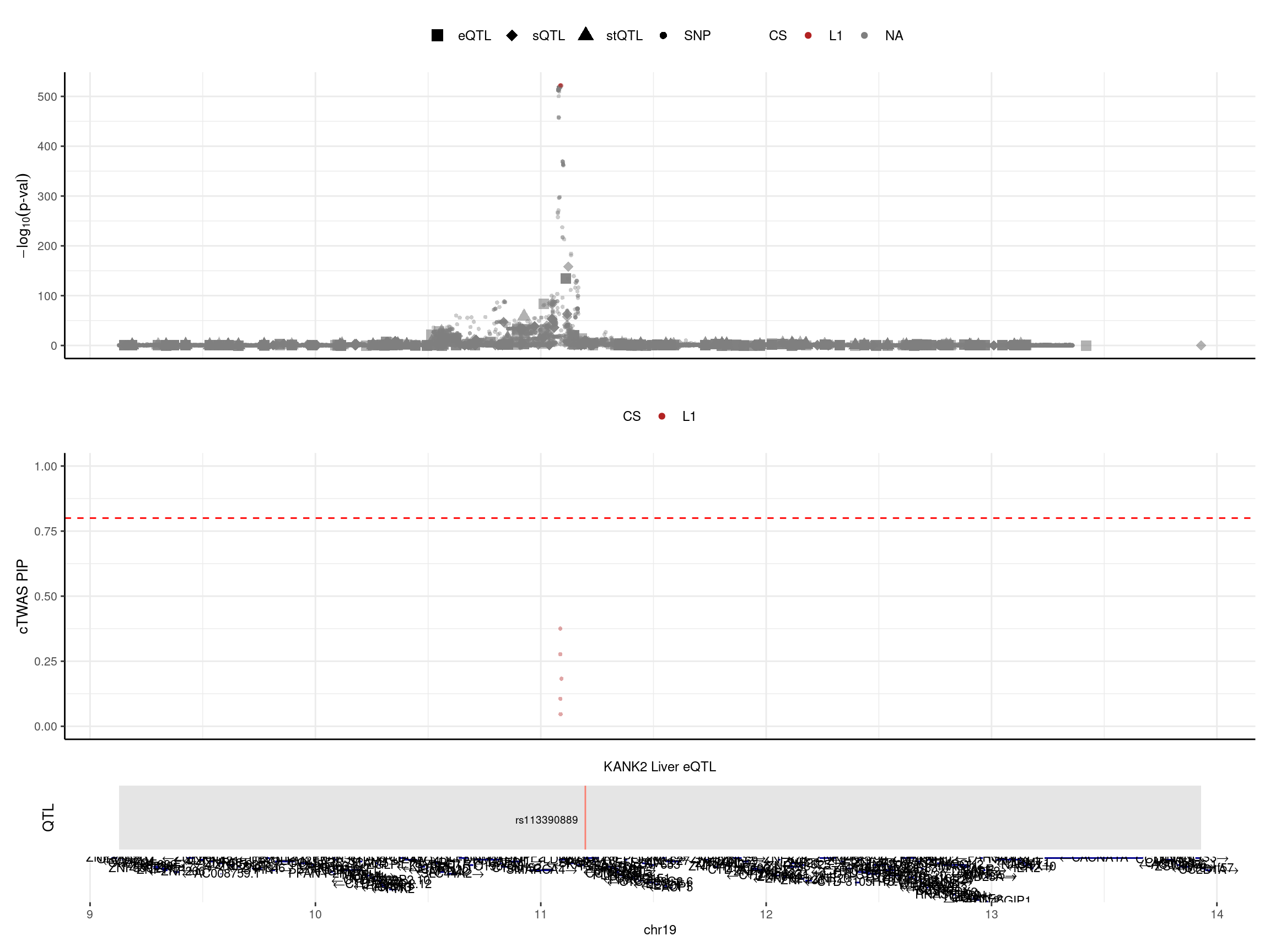

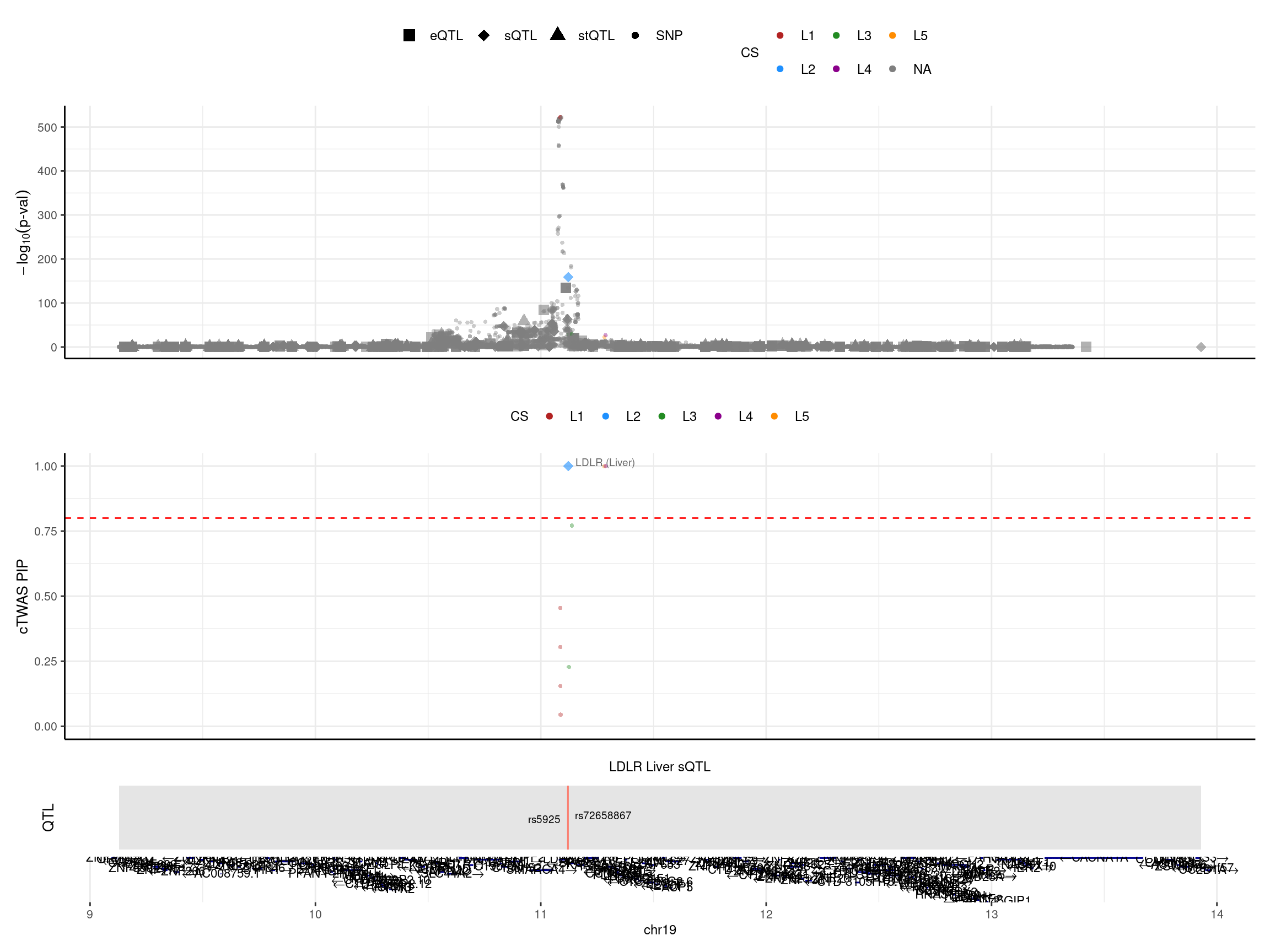

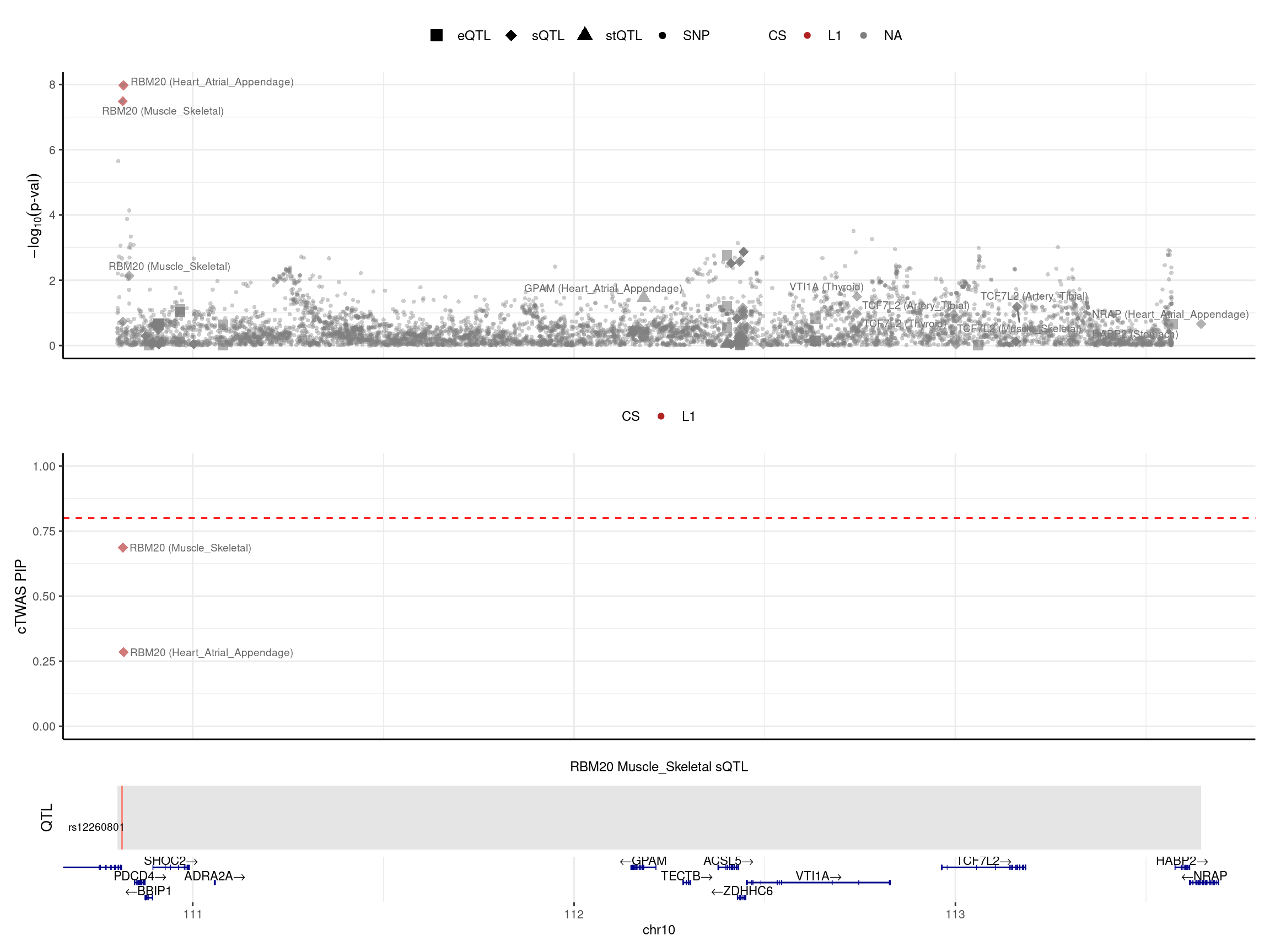

print("locus plot -- after region merge")[1] "locus plot -- after region merge"make_locusplot(finemap_res_rm,
region_id = region_id,
ens_db = ens_db,
weights = weights_origin,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:45:32 INFO::Limit to protein coding genes
2024-12-19 14:45:32 INFO::focal id: intron_10_110812947_110820072|Muscle_Skeletal_sQTL
2024-12-19 14:45:32 INFO::focal molecular trait: RBM20 Muscle_Skeletal sQTL
2024-12-19 14:45:32 INFO::Range of locus: chr10:110801998-113644532
2024-12-19 14:45:32 INFO::focal molecular trait QTL positions: 110814644
2024-12-19 14:45:32 INFO::Limit PIPs to credible sets

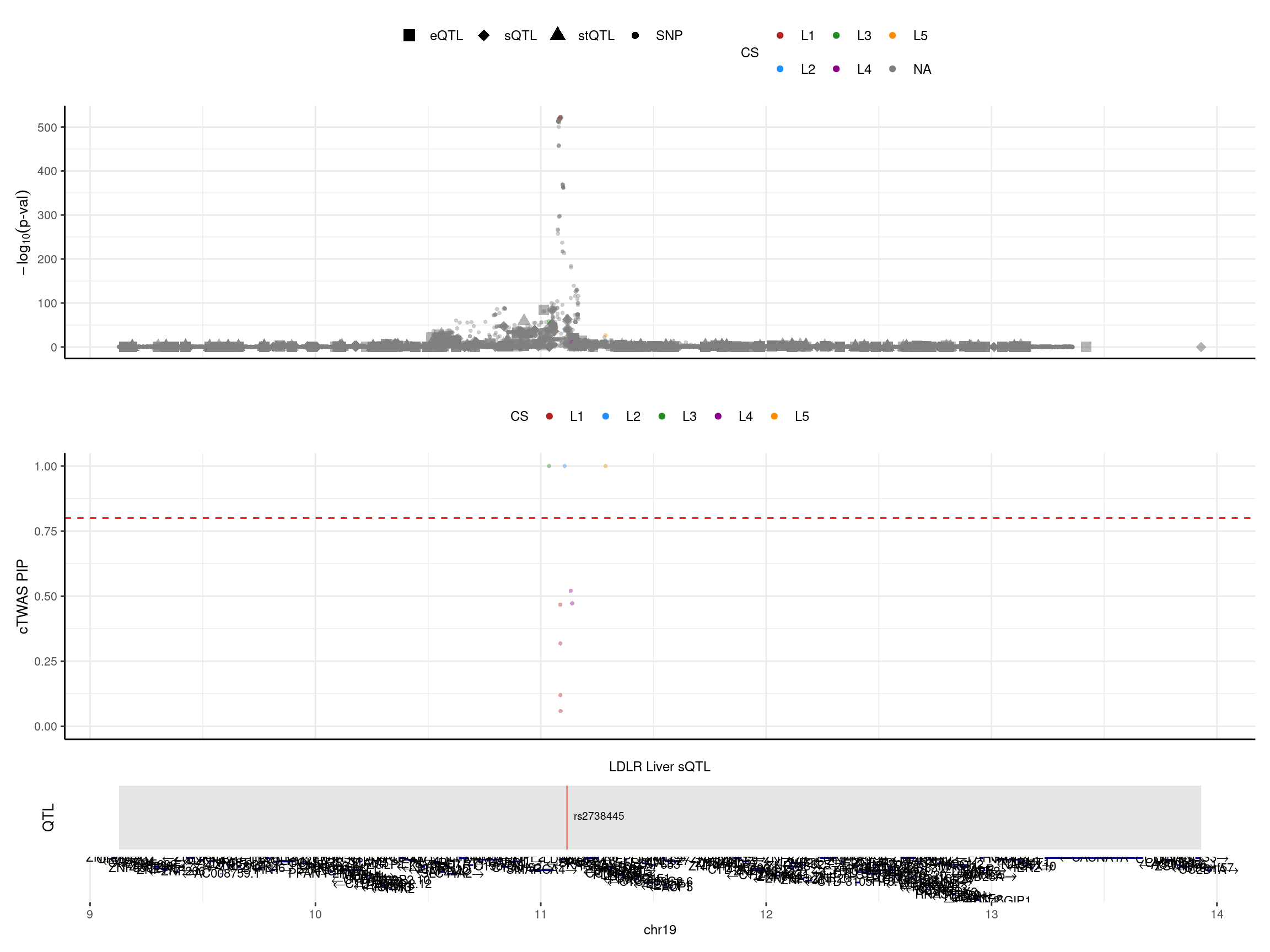

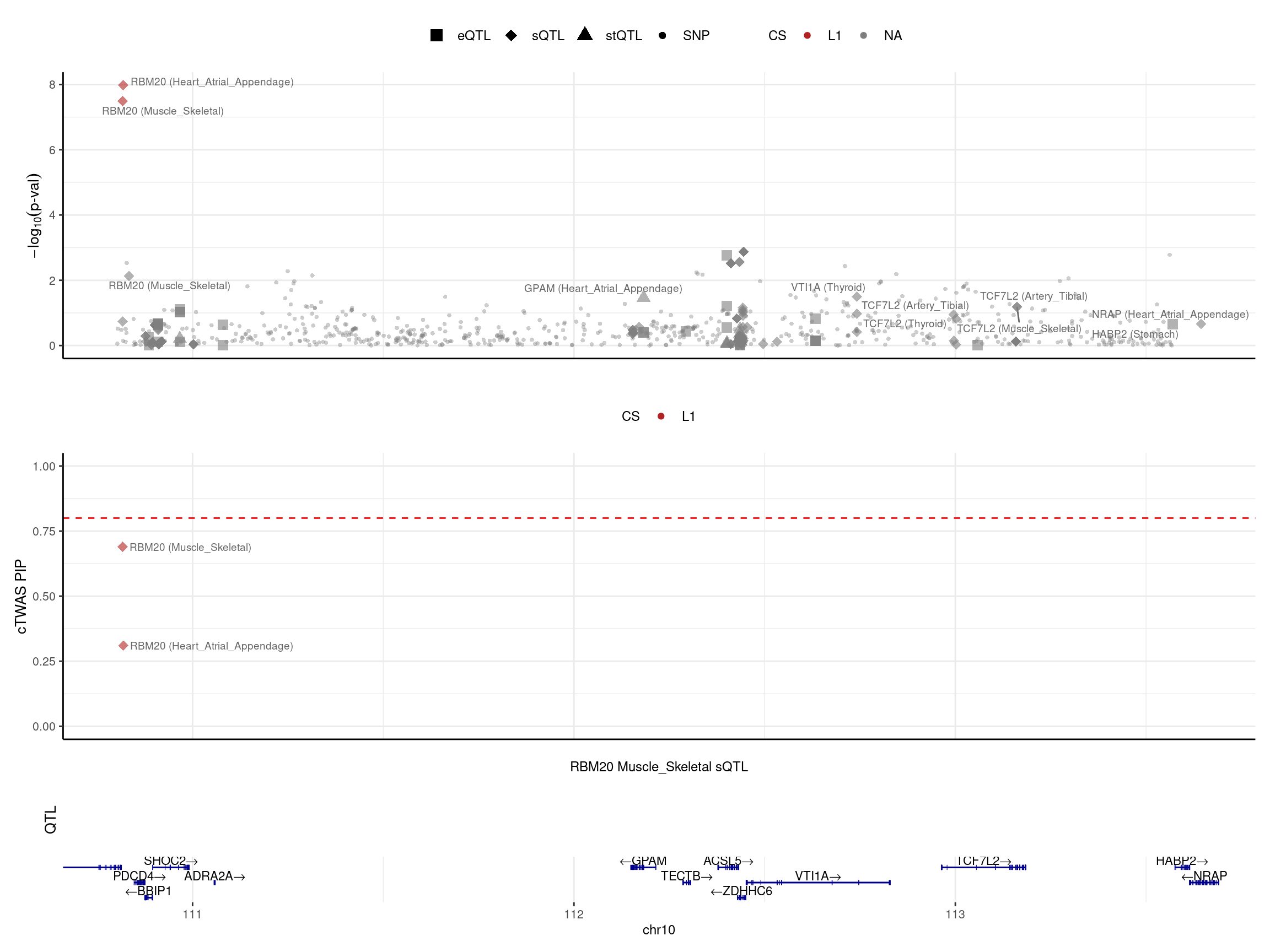

print("locus plot -- LD mismatch: no LD")[1] "locus plot -- LD mismatch: no LD"make_locusplot(finemap_res_ldmm_nold,
region_id = region_id,
ens_db = ens_db,
weights = weights_origin,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:45:33 INFO::Limit to protein coding genes
2024-12-19 14:45:33 INFO::focal id: intron_10_110812947_110820072|Muscle_Skeletal_sQTL
2024-12-19 14:45:33 INFO::focal molecular trait: RBM20 Muscle_Skeletal sQTL
2024-12-19 14:45:33 INFO::Range of locus: chr10:110802487-113644532
2024-12-19 14:45:33 INFO::focal molecular trait QTL positions:
2024-12-19 14:45:33 INFO::Limit PIPs to credible sets

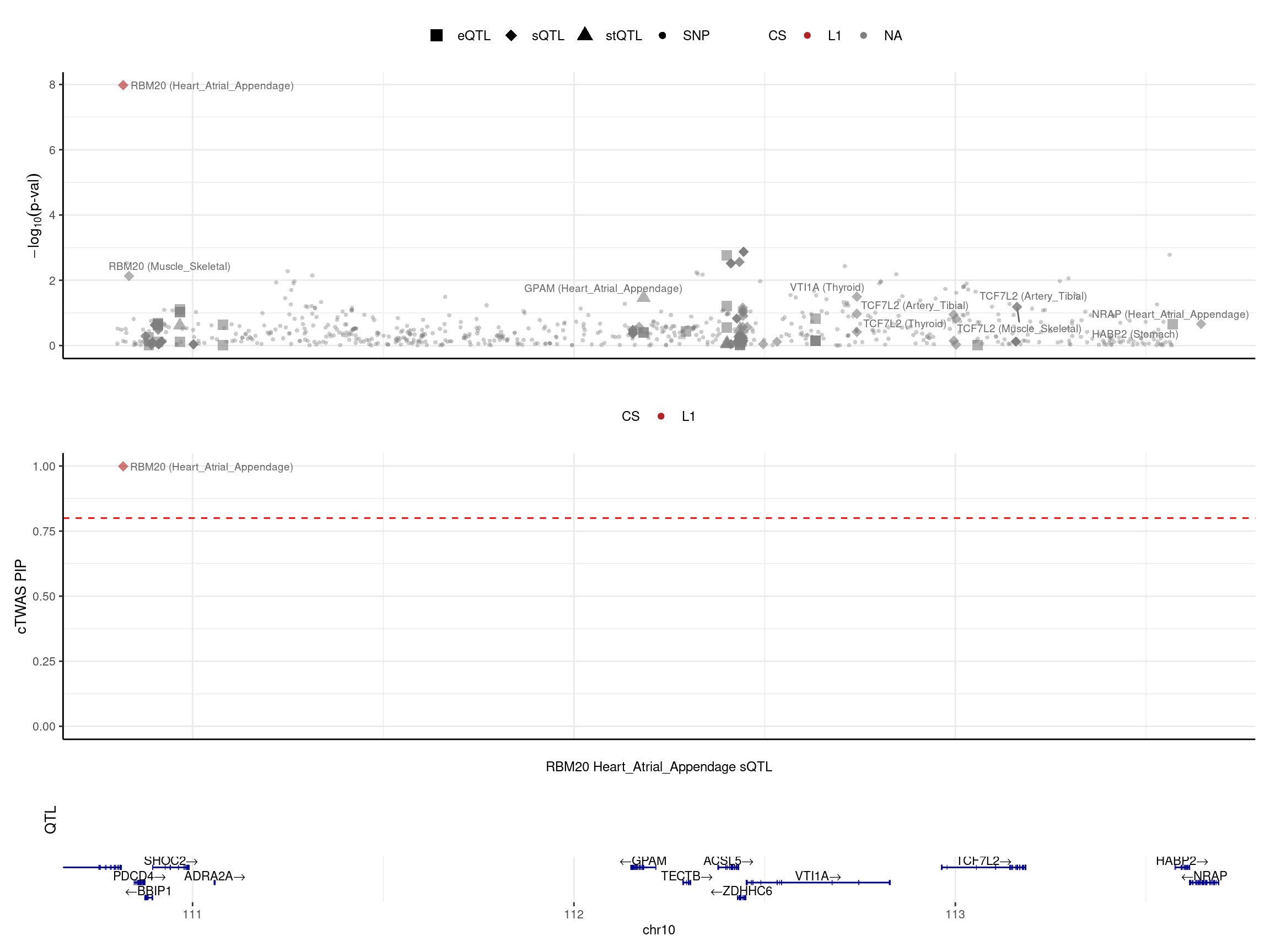

print("locus plot -- LD mismatch: snp removed")[1] "locus plot -- LD mismatch: snp removed"make_locusplot(finemap_res_ldmm_removesnp,
region_id = region_id,
ens_db = ens_db,
weights = weights_updated,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:45:35 INFO::Limit to protein coding genes
2024-12-19 14:45:35 INFO::focal id: intron_10_110816811_110820072|Heart_Atrial_Appendage_sQTL
2024-12-19 14:45:35 INFO::focal molecular trait: RBM20 Heart_Atrial_Appendage sQTL
2024-12-19 14:45:35 INFO::Range of locus: chr10:110802487-113644532
2024-12-19 14:45:35 INFO::focal molecular trait QTL positions:
2024-12-19 14:45:35 INFO::Limit PIPs to credible sets
finemap_res_rm_gene_region <- finemap_res_rm_gene[finemap_res_rm_gene$region_id == region_id,]
finemap_res_ldmm_removesnp_gene_region <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$region_id == region_id,]
merged_region_gene <- merge(finemap_res_rm_gene_region,finemap_res_ldmm_removesnp_gene_region,by = "id",all.x=T)
merged_region_gene <- merged_region_gene[,c("id","gene_name.x","z.x","susie_pip.x","cs.x","z.y","susie_pip.y","cs.y")]
colnames(merged_region_gene) <- c("id","gene_name","z_regionmerge","susie_pip_regionmerge","cs_regionmerge","z_ldmismatch","susie_pip_ldmismatch","cs_ldmismatch")
merged_region_gene$highlight <- ifelse(merged_region_gene$id %in% problematic_genes, "problematic genes", "good genes")
merged_region_gene$z_ldmismatch[is.na(merged_region_gene$z_ldmismatch)] <- 10
print("The dots showing z_ldmismatch =10 means: these genes were removed since the only QTLs of them are problematic")[1] "The dots showing z_ldmismatch =10 means: these genes were removed since the only QTLs of them are problematic"ggplot(data = merged_region_gene, aes(x= z_regionmerge, y= z_ldmismatch, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.3)) +

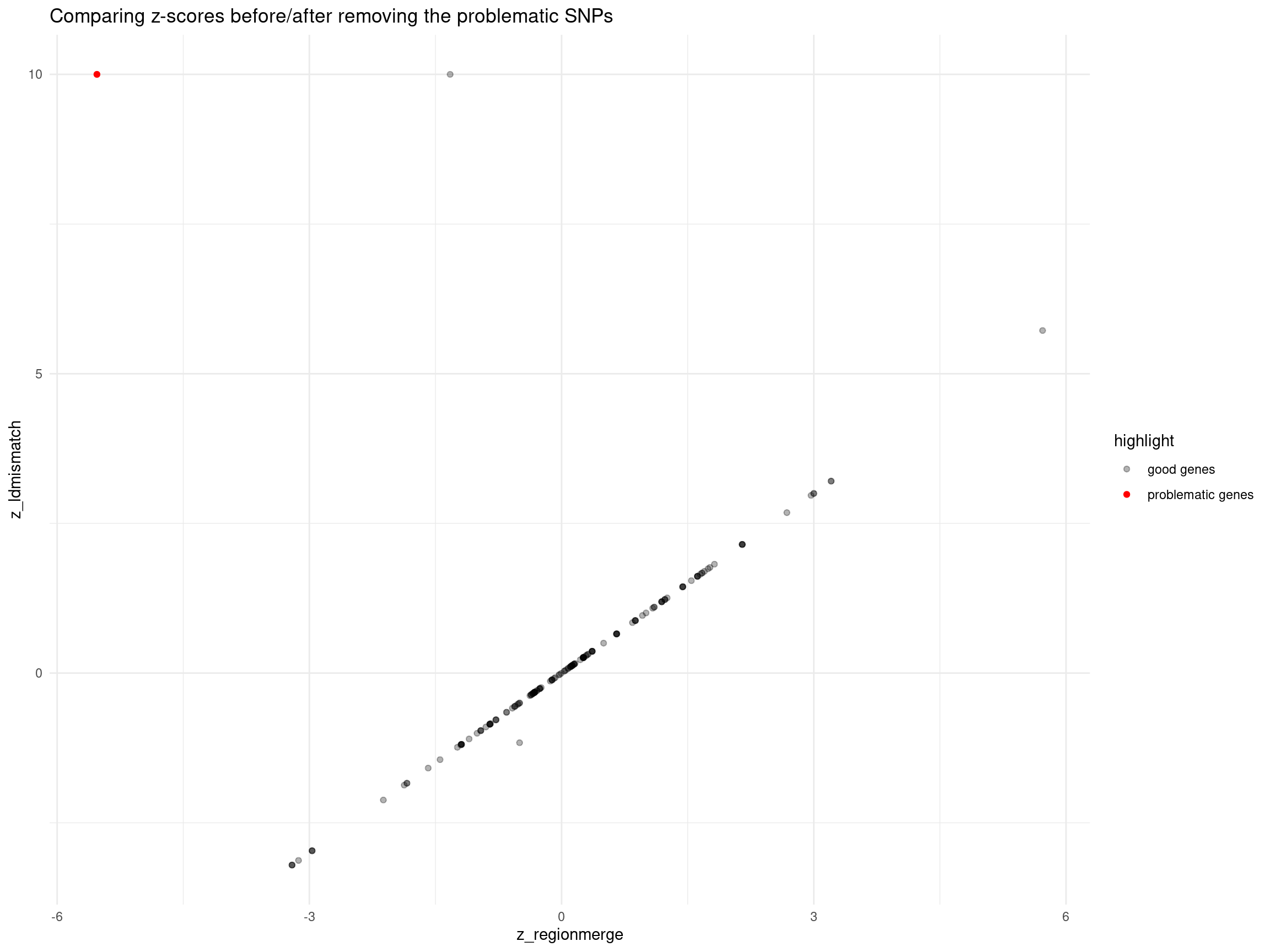

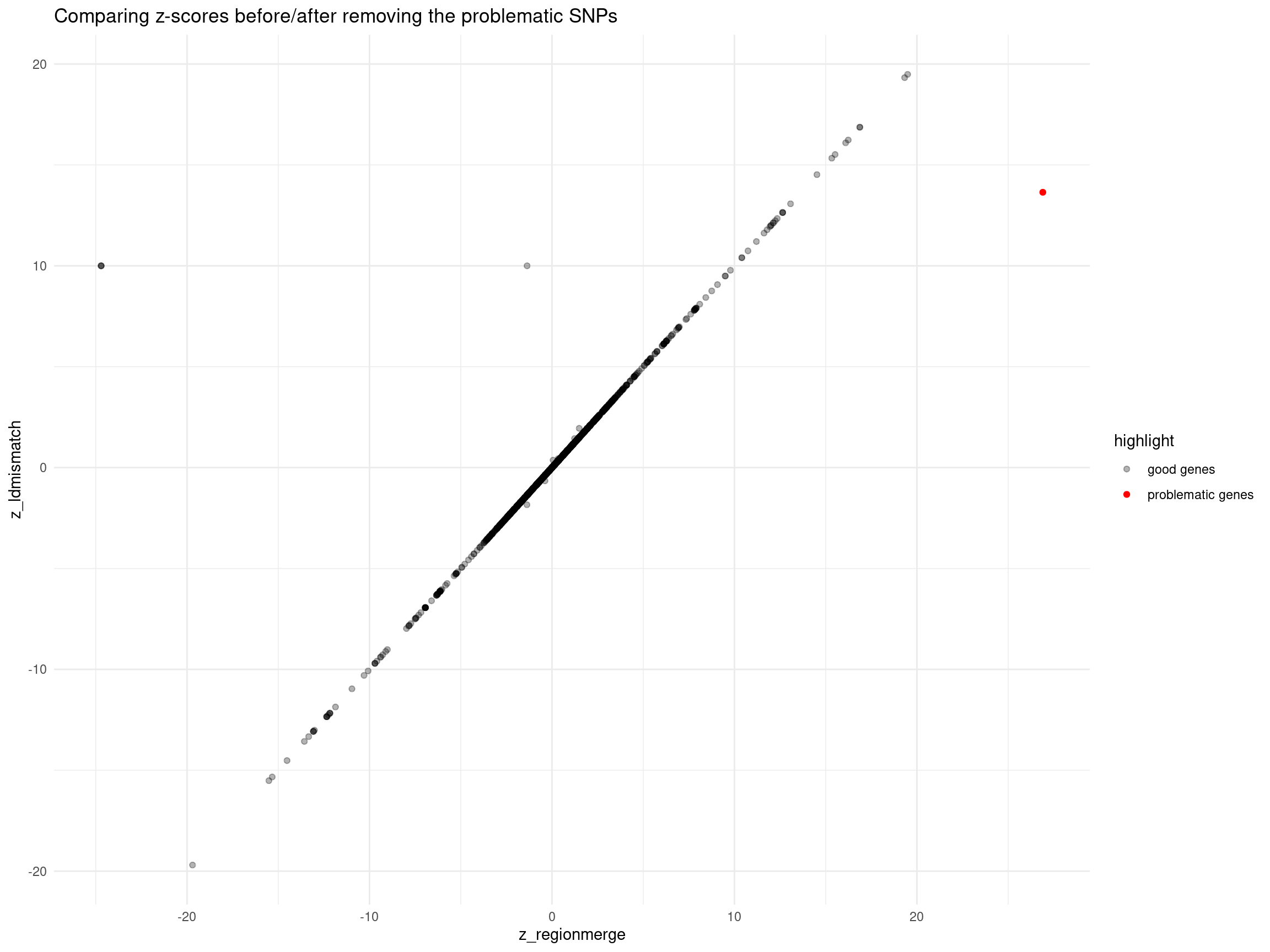

ggtitle("Comparing z-scores before/after removing the problematic SNPs") +
theme_minimal()
DT::datatable(merged_region_gene[merged_region_gene$z_ldmismatch != merged_region_gene$z_regionmerge,],caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Genes with different z before / after removing the problematic SNPs'),options = list(pageLength = 10) )LDL-ukb-d-30780_irnt
trait <- "LDL-ukb-d-30780_irnt"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold02)) {
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold05)) {
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5
p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
print("Notes: 2 intron overlapped")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "Total number of molecular traits in problematic regions = 1643"
[1] "Number of molecular traits disappeared after removing prblematic SNPs = 4"
[1] "The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic"
[1] "Notes: 2 intron overlapped"
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
[1] "L - estimated in region merge step"
19_9127717_13360313
5
[1] "L - re-estimated after updating z_scores, region data"
19_9127717_13360313
5 print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Examples for LD-mismatch fixing
weights_origin <- readRDS(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/",trait,".preprocessed.weights.RDS"))
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_weights_updated_nozfilter_",trait,".rdata"))
region_id <- "19_9127717_13360313"
finemap_res_rm <- anno_finemap_res(finemap_res_rm,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:46:37 INFO::Annotating fine-mapping result ...
2024-12-19 14:46:37 INFO::Map molecular traits to genes
2024-12-19 14:46:37 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:46:42 INFO::Add gene positions
2024-12-19 14:46:42 INFO::Add SNP positionsfinemap_res_ldmm_nold <- anno_finemap_res(finemap_res_ldmm_nold,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:46:45 INFO::Annotating fine-mapping result ...
2024-12-19 14:46:45 INFO::Map molecular traits to genes
2024-12-19 14:46:46 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:46:49 INFO::Add gene positions
2024-12-19 14:46:49 INFO::Add SNP positionsfinemap_res_ldmm_removesnp <- anno_finemap_res(finemap_res_ldmm_removesnp,
snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
mapping_table = mapping_two,
add_gene_annot = TRUE,
map_by = "molecular_id",
drop_unmapped = TRUE,
add_position = TRUE,
use_gene_pos = "mid")2024-12-19 14:46:52 INFO::Annotating fine-mapping result ...
2024-12-19 14:46:52 INFO::Map molecular traits to genes
2024-12-19 14:46:54 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-19 14:46:57 INFO::Add gene positions
2024-12-19 14:46:57 INFO::Add SNP positionsfinemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
print("locus plot -- after region merge")[1] "locus plot -- after region merge"make_locusplot(finemap_res_rm,
region_id = region_id,
ens_db = ens_db,
weights = weights_origin,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:47:01 INFO::Limit to protein coding genes
2024-12-19 14:47:01 INFO::focal id: intron_19_11120522_11123174|Liver_sQTL
2024-12-19 14:47:01 INFO::focal molecular trait: LDLR Liver sQTL
2024-12-19 14:47:01 INFO::Range of locus: chr19:9127860-13930432
2024-12-19 14:47:01 INFO::focal molecular trait QTL positions: 11120205,11120527
2024-12-19 14:47:01 INFO::Limit PIPs to credible sets
print("locus plot -- LD mismatch: no LD")[1] "locus plot -- LD mismatch: no LD"make_locusplot(finemap_res_ldmm_nold,
region_id = region_id,
ens_db = ens_db,
weights = weights_origin,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:47:06 INFO::Limit to protein coding genes
2024-12-19 14:47:06 INFO::focal id: ENSG00000197256.10|Liver_eQTL
2024-12-19 14:47:06 INFO::focal molecular trait: KANK2 Liver eQTL
2024-12-19 14:47:06 INFO::Range of locus: chr19:9127860-13930432
2024-12-19 14:47:06 INFO::focal molecular trait QTL positions: 11197621
2024-12-19 14:47:06 INFO::Limit PIPs to credible sets
print("locus plot -- LD mismatch: snp removed")[1] "locus plot -- LD mismatch: snp removed"make_locusplot(finemap_res_ldmm_removesnp,
region_id = region_id,
ens_db = ens_db,
weights = weights_updated,
highlight_pip = 0.8,
filter_protein_coding_genes = TRUE,
filter_cs = TRUE,
color_pval_by = "cs",
color_pip_by = "cs",panel.heights = c(4,4,1,1))2024-12-19 14:47:11 INFO::Limit to protein coding genes
2024-12-19 14:47:11 INFO::focal id: intron_19_11116212_11120092|Liver_sQTL
2024-12-19 14:47:11 INFO::focal molecular trait: LDLR Liver sQTL
2024-12-19 14:47:11 INFO::Range of locus: chr19:9127860-13930432
2024-12-19 14:47:11 INFO::focal molecular trait QTL positions: 11116394
2024-12-19 14:47:11 INFO::Limit PIPs to credible sets
finemap_res_rm_gene_region <- finemap_res_rm_gene[finemap_res_rm_gene$region_id == region_id,]
finemap_res_ldmm_removesnp_gene_region <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$region_id == region_id,]
merged_region_gene <- merge(finemap_res_rm_gene_region,finemap_res_ldmm_removesnp_gene_region,by = "id",all.x=T)
merged_region_gene <- merged_region_gene[,c("id","gene_name.x","z.x","susie_pip.x","cs.x","z.y","susie_pip.y","cs.y")]
colnames(merged_region_gene) <- c("id","gene_name","z_regionmerge","susie_pip_regionmerge","cs_regionmerge","z_ldmismatch","susie_pip_ldmismatch","cs_ldmismatch")
merged_region_gene$highlight <- ifelse(merged_region_gene$id %in% problematic_genes, "problematic genes", "good genes")
merged_region_gene$z_ldmismatch[is.na(merged_region_gene$z_ldmismatch)] <- 10
print("The dots showing z_ldmismatch =10 means: these genes were removed since the only QTLs of them are problematic")[1] "The dots showing z_ldmismatch =10 means: these genes were removed since the only QTLs of them are problematic"ggplot(data = merged_region_gene, aes(x= z_regionmerge, y= z_ldmismatch, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.3)) +
ggtitle("Comparing z-scores before/after removing the problematic SNPs") +
theme_minimal()
DT::datatable(merged_region_gene[merged_region_gene$z_ldmismatch != merged_region_gene$z_regionmerge,],caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Genes with different z before / after removing the problematic SNPs'),options = list(pageLength = 10) )IBD-ebi-a-GCST004131
trait <- "IBD-ebi-a-GCST004131"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold02)) {
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold05)) {
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5
p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "Total number of molecular traits in problematic regions = 201"
[1] "Number of molecular traits disappeared after removing prblematic SNPs = 1"
[1] "The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic"
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}
[1] "L - estimated in region merge step"
5_96627815_97979897
1
[1] "L - re-estimated after updating z_scores, region data"
5_96627815_97979897
1 print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}
SBP-ukb-a-360
trait <- "SBP-ukb-a-360"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold02)) {
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold05)) {
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5
p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "Total number of molecular traits in problematic regions = 229"
[1] "Number of molecular traits disappeared after removing prblematic SNPs = 4"
[1] "The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic"
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}
[1] "L - estimated in region merge step"
3_133533329_135738064
2
[1] "L - re-estimated after updating z_scores, region data"
3_133533329_135738064
2 print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}
SCZ-ieu-b-5102
trait <- "SCZ-ieu-b-5102"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold02)) {
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold05)) {
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5
p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "There's no problematic genes, no need to compare"Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}[1] "There's no problematic genes"
print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}[1] "There's no problematic genes"
WBC-ieu-b-30
trait <- "WBC-ieu-b-30"
results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))
finemap_res_origin <- ctwas_res_origin$finemap_resRegion merge
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))
finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]
finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")
DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )LD-mismatch
Diagnosis
file_pipthreshold02 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold02)) {
load(file_pipthreshold02)
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))
pip_02 <- data.frame(
"PIP Threshold" = "0.2",
"Number of Selected Regions Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
file_pipthreshold05 <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_nozfilter_", trait, ".rdata")
if (file.exists(file_pipthreshold05)) {
load(file_pipthreshold05)
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = length(problematic_genes),
"Number of Problematic Regions" = length(problematic_region_ids),
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}else{
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))
pip_05 <- data.frame(
"PIP Threshold" = "0.5",
"Number of Selected Regions" = length(selected_region_ids),
"Number of Problematic Genes" = 0,
"Number of Problematic Regions" = 0,
"Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
"Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)
}
results_table <- rbind(pip_02, pip_05)
DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black; font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )Comparing 2 LD mismatch fixing methods
file_ldmismatch_results <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_nold_nozfilter_",trait,".rdata")
if(file.exists(file_ldmismatch_results)) {
load(file_pipthreshold02)
load(file_ldmismatch_results)
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_nozfilter_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res
finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]
merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x=T)
merge_2method$highlight <- ifelse(merge_2method$id %in% problematic_genes, "problematic genes", "good genes")
merge_2method$susie_pip.y[is.na(merge_2method$susie_pip.y)] <- 1.5
p1 <- ggplot(data = merge_2method, aes(x = susie_pip.x, y = susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
labs(x = "PIP_noLD", y = "PIP_removesnp") +
geom_abline(slope = 1, intercept = 0, col = "red") +
ggtitle("Problematic regions only, genes only") +
theme_minimal()
finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]
merge_rm_ldmm_nold <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id",all.x=T)
merge_rm_ldmm_nold$highlight <- ifelse(merge_rm_ldmm_nold$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_nold$susie_pip.y[is.na(merge_rm_ldmm_nold$susie_pip.y)] <- 1.5
p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_noLD") +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
merge_rm_ldmm_removesnp <- merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id",all.x =T)
merge_rm_ldmm_removesnp$highlight <- ifelse(merge_rm_ldmm_removesnp$id %in% problematic_genes, "problematic genes", "good genes")
merge_rm_ldmm_removesnp$susie_pip.y[is.na(merge_rm_ldmm_removesnp$susie_pip.y)] <- 1.5
p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y, color = highlight, alpha = highlight)) +
geom_point() +
labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.1)) +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
geom_abline(slope = 1, intercept = 0, col ="red") +
ggtitle("problematic regions only, genes only") +
theme_minimal()
print(sprintf("Total number of molecular traits in problematic regions = %s",nrow(merge_rm_ldmm_removesnp)))
print(sprintf("Number of molecular traits disappeared after removing prblematic SNPs = %s", sum(merge_rm_ldmm_removesnp$susie_pip.y == 1.5)))
print("The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic")
grid.arrange(p1,p2,p3, ncol = 3)
}else{
print("There's no problematic genes, no need to compare")
}[1] "Total number of molecular traits in problematic regions = 1309"
[1] "Number of molecular traits disappeared after removing prblematic SNPs = 6"
[1] "The dots showing PIP =1.5 means: these genes were removed since the only QTLs of them are problematic"
| Version | Author | Date |
|---|---|---|
| 65c1ad1 | XSun | 2024-12-19 |
Comparing z-scores and susie_pip
if(file.exists(file_ldmismatch_results)){
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
finemap_res_origin_gene$highlight <- ifelse(finemap_res_origin_gene$id %in% problematic_genes, "problematic genes", "good genes")
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_rm_gene$highlight <- ifelse(finemap_res_rm_gene$id %in% problematic_genes, "problematic genes", "good genes")
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After region merge") +
theme_minimal()
finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]
finemap_res_ldmm_nold_gene$highlight <- ifelse(finemap_res_ldmm_nold_gene$id %in% problematic_genes, "problematic genes", "good genes")
p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal()
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]
finemap_res_ldmm_removesnp_gene$highlight <- ifelse(finemap_res_ldmm_removesnp_gene$id %in% problematic_genes, "problematic genes", "good genes")
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip, color = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal()
grid.arrange(p1,p2,p3,p4, ncol = 4)
print("L - estimated in region merge step")
print(updated_data_res_regionmerge$updated_region_L[problematic_region_ids])
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres02_removesnp_rescreenregion_nozfilter_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")
print(screen_res$screened_region_L)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()
grid.arrange(p1,p2, ncol = 2)
}
[1] "L - estimated in region merge step"
2_217530757_219589829 5_68555033_71944629 19_43358303_44239955
3 1 3
[1] "L - re-estimated after updating z_scores, region data"
2_217530757_219589829 5_68555033_71944629 19_43358303_44239955
4 1 4 print("Zoom in the z<15 part")[1] "Zoom in the z<15 part"if(file.exists(file_ldmismatch_results)){
finemap_res_origin_gene_prob <- finemap_res_origin_gene[finemap_res_origin_gene$highlight == "problematic genes",]
p1 <- ggplot(data = finemap_res_origin_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("Original ctwas results") +
theme_minimal() +
xlim(0, 15)
finemap_res_rm_gene_prob <- finemap_res_rm_gene[finemap_res_rm_gene$highlight == "problematic genes",]
p2 <- ggplot(data = finemap_res_rm_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After region merge") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_nold_gene_prob <- finemap_res_ldmm_nold_gene[finemap_res_ldmm_nold_gene$highlight == "problematic genes",]
p3 <- ggplot(data = finemap_res_ldmm_nold_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- noLD") +
theme_minimal() +
xlim(0, 15)
finemap_res_ldmm_removesnp_gene_prob <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$highlight == "problematic genes",]
p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene_prob,
aes(x = abs(z), y = susie_pip, color = highlight, alpha = highlight)) +
geom_point() +
scale_color_manual(values = c("problematic genes" = "red", "good genes" = "black")) +
scale_alpha_manual(values = c("problematic genes" = 1, "good genes" = 0.01)) +
ggtitle("After LD mismatch fixed -- SNP removed") +
theme_minimal() +
xlim(0, 15)
grid.arrange(p1,p2,p3,p4, ncol = 4)
}else{
print("There's no problematic genes")
finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]
p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("Original ctwas results") +
theme_minimal()+
xlim(0, 15)
finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
geom_point() +
ggtitle("After region merge") +
theme_minimal()+
xlim(0, 15)
grid.arrange(p1,p2, ncol = 2)
}
sessionInfo()R version 4.2.0 (2022-04-22)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)
Matrix products: default
BLAS/LAPACK: /software/openblas-0.3.13-el7-x86_64/lib/libopenblas_haswellp-r0.3.13.so
locale:
[1] C
attached base packages:
[1] stats4 stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] dplyr_1.1.4 gridExtra_2.3
[3] ggplot2_3.5.1 EnsDb.Hsapiens.v86_2.99.0
[5] ensembldb_2.20.2 AnnotationFilter_1.20.0
[7] GenomicFeatures_1.48.3 AnnotationDbi_1.58.0
[9] Biobase_2.56.0 GenomicRanges_1.48.0
[11] GenomeInfoDb_1.39.9 IRanges_2.30.0
[13] S4Vectors_0.34.0 BiocGenerics_0.42.0
[15] ctwas_0.4.20.9001
loaded via a namespace (and not attached):
[1] colorspace_2.0-3 rjson_0.2.21
[3] ellipsis_0.3.2 rprojroot_2.0.3
[5] XVector_0.36.0 locuszoomr_0.2.1
[7] fs_1.5.2 rstudioapi_0.13
[9] farver_2.1.0 DT_0.22
[11] ggrepel_0.9.1 bit64_4.0.5
[13] fansi_1.0.3 xml2_1.3.3
[15] codetools_0.2-18 logging_0.10-108
[17] cachem_1.0.6 knitr_1.39
[19] jsonlite_1.8.0 workflowr_1.7.0
[21] Rsamtools_2.12.0 dbplyr_2.1.1
[23] png_0.1-7 readr_2.1.2
[25] compiler_4.2.0 httr_1.4.3
[27] assertthat_0.2.1 Matrix_1.5-3
[29] fastmap_1.1.0 lazyeval_0.2.2
[31] cli_3.6.1 later_1.3.0
[33] htmltools_0.5.2 prettyunits_1.1.1
[35] tools_4.2.0 gtable_0.3.0
[37] glue_1.6.2 GenomeInfoDbData_1.2.8
[39] rappdirs_0.3.3 Rcpp_1.0.12
[41] jquerylib_0.1.4 vctrs_0.6.5
[43] Biostrings_2.64.0 rtracklayer_1.56.0
[45] crosstalk_1.2.0 xfun_0.41
[47] stringr_1.5.1 lifecycle_1.0.4
[49] irlba_2.3.5 restfulr_0.0.14
[51] XML_3.99-0.14 zlibbioc_1.42.0
[53] zoo_1.8-10 scales_1.3.0
[55] gggrid_0.2-0 hms_1.1.1
[57] promises_1.2.0.1 MatrixGenerics_1.8.0
[59] ProtGenerics_1.28.0 parallel_4.2.0
[61] SummarizedExperiment_1.26.1 LDlinkR_1.2.3
[63] yaml_2.3.5 curl_4.3.2
[65] memoise_2.0.1 sass_0.4.1
[67] biomaRt_2.54.1 stringi_1.7.6
[69] RSQLite_2.3.1 highr_0.9
[71] BiocIO_1.6.0 filelock_1.0.2
[73] BiocParallel_1.30.3 rlang_1.1.2
[75] pkgconfig_2.0.3 matrixStats_0.62.0
[77] bitops_1.0-7 evaluate_0.15
[79] lattice_0.20-45 purrr_1.0.2
[81] labeling_0.4.2 GenomicAlignments_1.32.0
[83] htmlwidgets_1.5.4 cowplot_1.1.1
[85] bit_4.0.4 tidyselect_1.2.0
[87] magrittr_2.0.3 R6_2.5.1
[89] generics_0.1.2 DelayedArray_0.22.0
[91] DBI_1.2.2 withr_2.5.0
[93] pgenlibr_0.3.3 pillar_1.9.0
[95] whisker_0.4 KEGGREST_1.36.3
[97] RCurl_1.98-1.7 mixsqp_0.3-43
[99] tibble_3.2.1 crayon_1.5.1
[101] utf8_1.2.2 BiocFileCache_2.4.0
[103] plotly_4.10.0 tzdb_0.4.0
[105] rmarkdown_2.25 progress_1.2.2
[107] grid_4.2.0 data.table_1.14.2
[109] blob_1.2.3 git2r_0.30.1
[111] digest_0.6.29 tidyr_1.3.0
[113] httpuv_1.6.5 munsell_0.5.0
[115] viridisLite_0.4.0 bslib_0.3.1
