Introduction

We compare post-processed results with the original results: https://sq-96.github.io/multigroup_ctwas_analysis/multi_group_6traits_15weights_ess.html

The post-processing steps include the following:

Region Merging

For the regions with susie_pip > 0.5
LD Mismatch Fixing

Regions were selected where nonSNP_PIP > 0.5.
For genes with susie_pip > thresholds (0.5 and 0.2), we performed LD mismatch diagnosis.
To address LD mismatches, two strategies were employed:
- Fine-mapping the region without LD.
- Removing mismatched SNPs for all genes in the problematic regions, updating gene Z-scores, re-estimated L, and re-fine-mapping with LD.

library(ctwas)
library(EnsDb.Hsapiens.v86)
library(ggplot2)
library(gridExtra)
library(dplyr)

ens_db <- EnsDb.Hsapiens.v86

mapping_predictdb <- readRDS("/project2/xinhe/shared_data/multigroup_ctwas/weights/mapping_files/PredictDB_mapping.RDS")
mapping_munro <- readRDS("/project2/xinhe/shared_data/multigroup_ctwas/weights/mapping_files/Munro_mapping.RDS")
mapping_two <- rbind(mapping_predictdb,mapping_munro)
#
#
# compute_pip_per_cs <- function(combined_data, susie_data) {
#   # Initialize an empty list to store results
#   details <- list()
#
#   # Iterate over each unique gene name in the combined data
#   unique_genes <- unique(combined_data$gene_name)
#
#   for (genename in unique_genes) {
#     # dplyr::filter susie data for the current gene
#     susie_alpha_res_multi_per_gene <- susie_data %>%
#       dplyr::filter(gene_name == genename)
#
#     # Get all unique credible sets for the current gene
#     cs_all <- unique(susie_alpha_res_multi_per_gene$susie_set[susie_alpha_res_multi_per_gene$in_cs])
#
#     if (length(cs_all) > 1) {
#       # dplyr::filter complete cases and those in credible sets
#       susie_alpha_res_multi_per_gene <- susie_alpha_res_multi_per_gene %>%
#         dplyr::filter(complete.cases(cs), in_cs)
#
#       # Summarize the data
#       summed_alpha_with_details <- susie_alpha_res_multi_per_gene %>%
#         group_by(susie_set) %>%
#         summarise(
#           total_susie_alpha = round(sum(susie_alpha, na.rm = TRUE), digits = 3),
#           num_molecular_traits = n(),
#           ids_pip = paste0(id, "(", round(susie_alpha, digits = 3), ")", collapse = ", ")
#         )
#
#       # Add gene name to the summarized data
#       summed_alpha_with_details$gene_name <- genename
#
#       # Append the result to the details list
#       details[[length(details) + 1]] <- summed_alpha_with_details
#     }
#   }
#
#   # Combine all results into a single data frame
#   final_details <- bind_rows(details)
#
#   if(nrow(final_details) > 0){
#     final_details <- final_details[,c("gene_name","susie_set","total_susie_alpha","num_molecular_traits","ids_pip")]
#     colnames(final_details) <- c("gene_name","CS","total_PIP_CS","num_molecular_traits_CS","ids_pip_CS")
#   }
#
#
#   return(final_details)
# }

aFib-ebi-a-GCST006414

trait <- "aFib-ebi-a-GCST006414"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

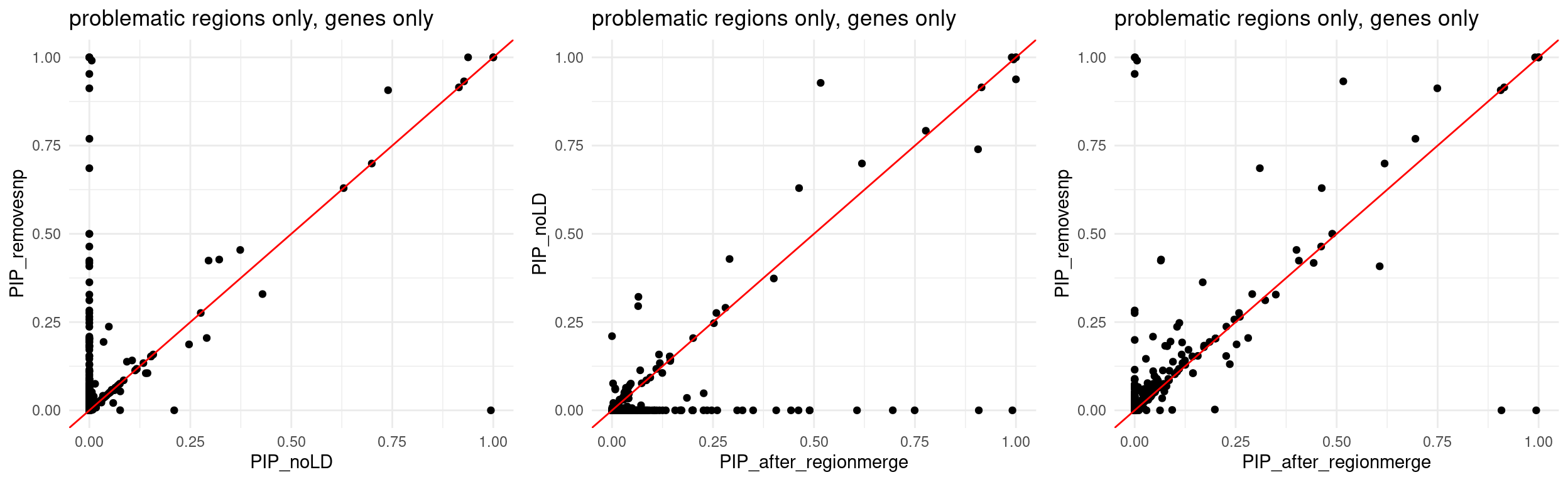

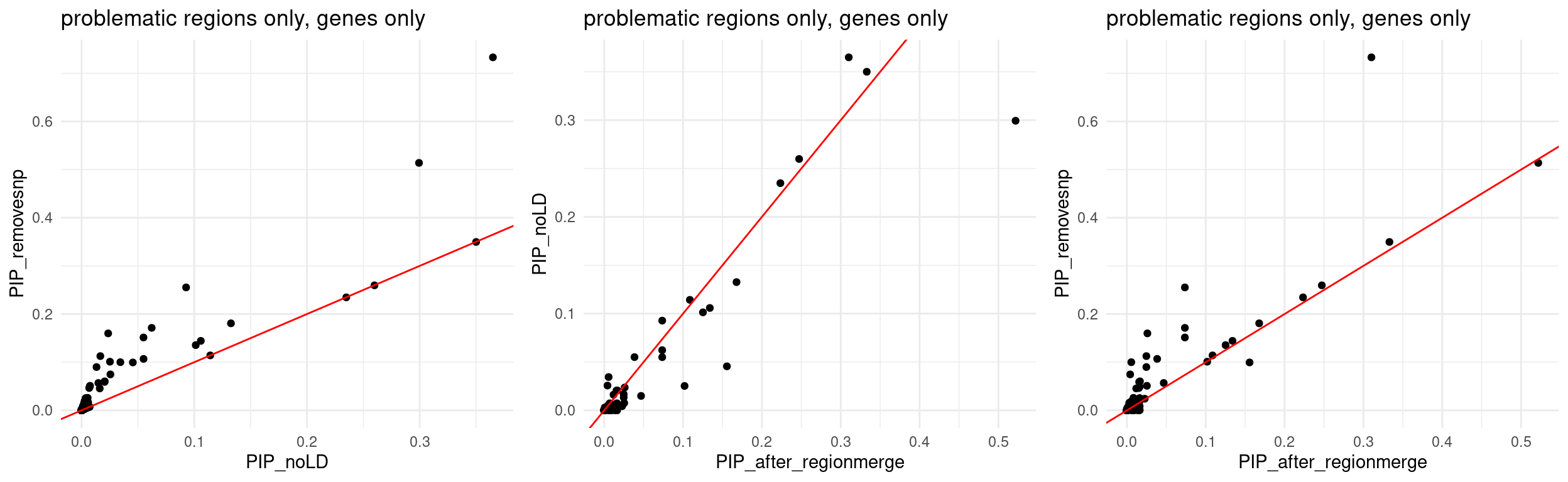

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

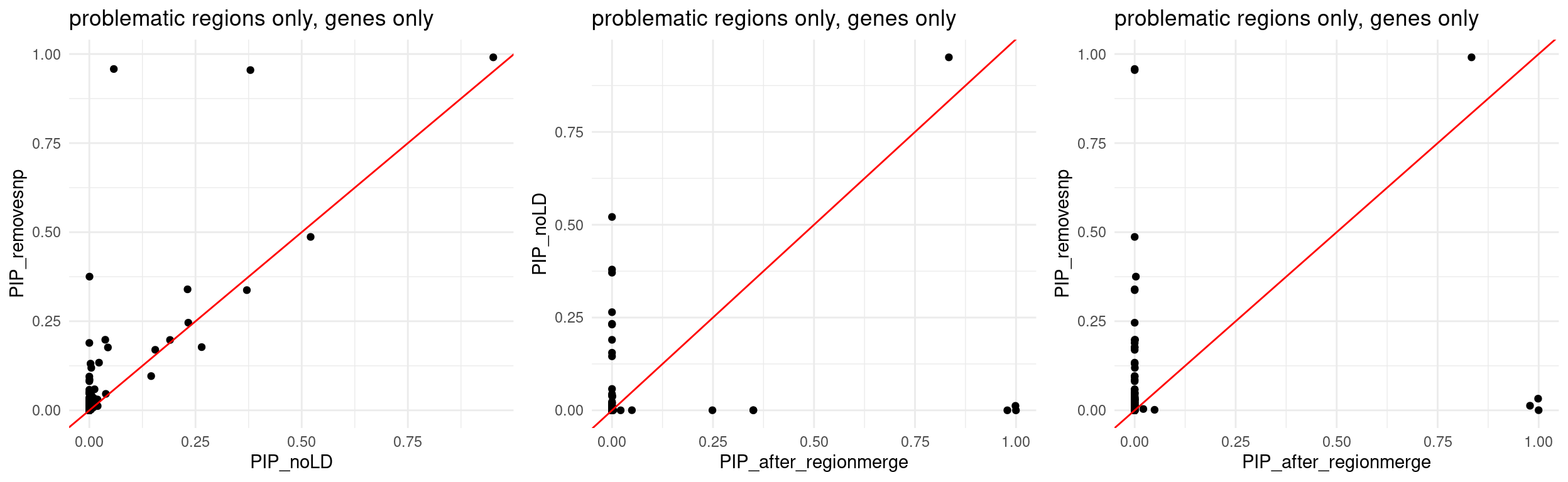

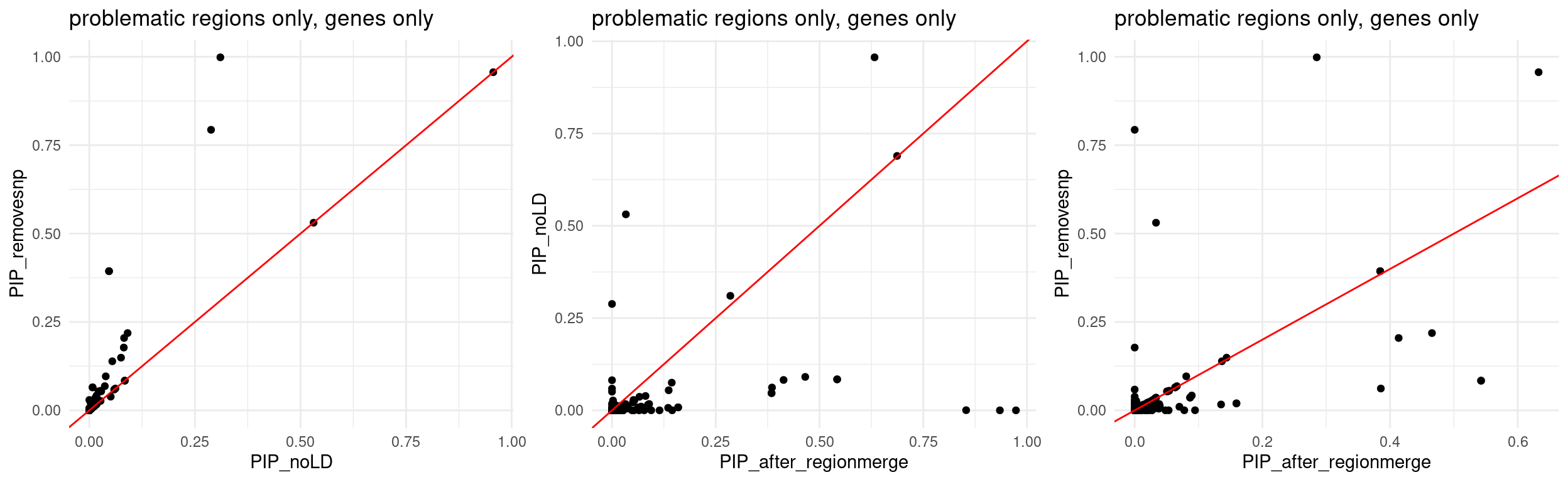

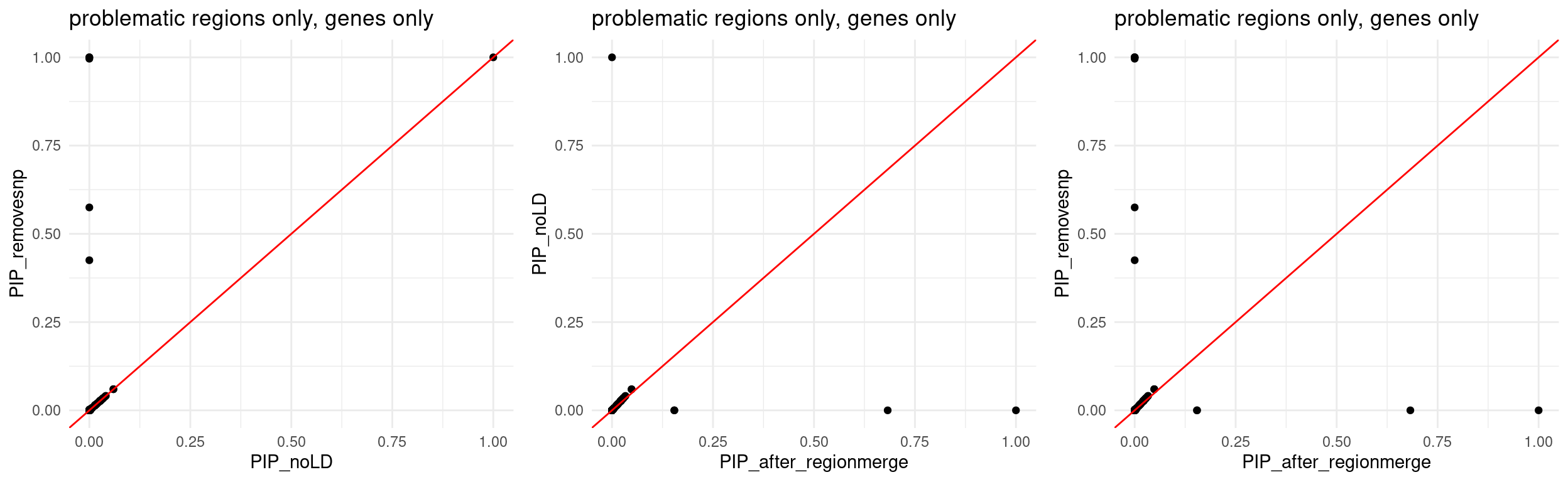

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
8578389	XSun	2024-12-10
fc17945	XSun	2024-12-10

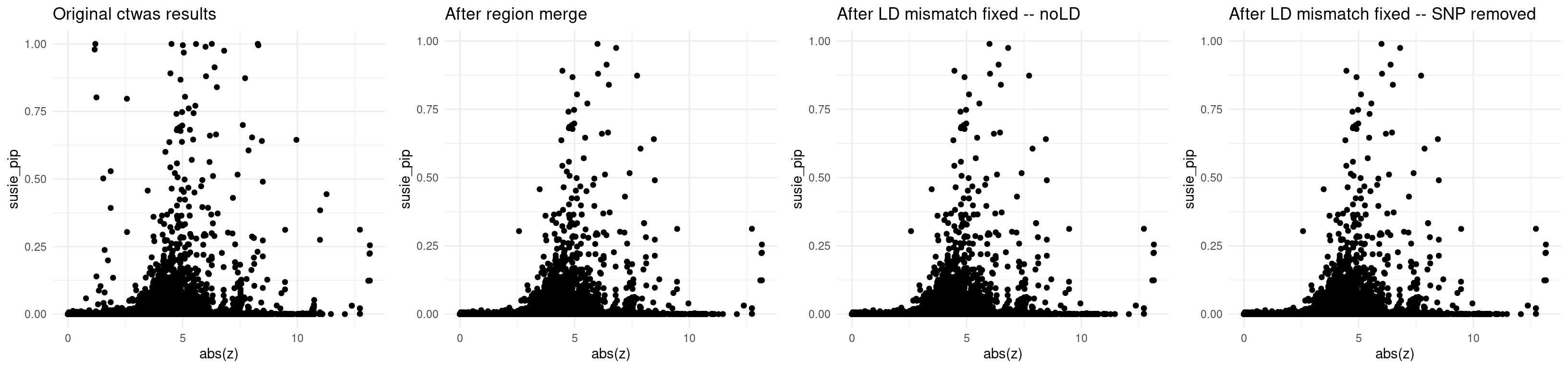

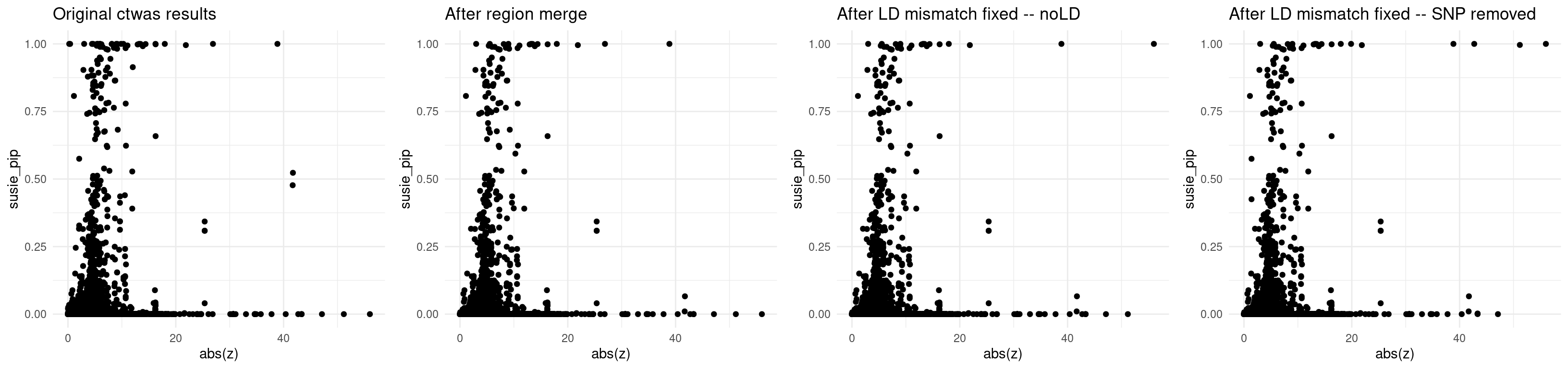

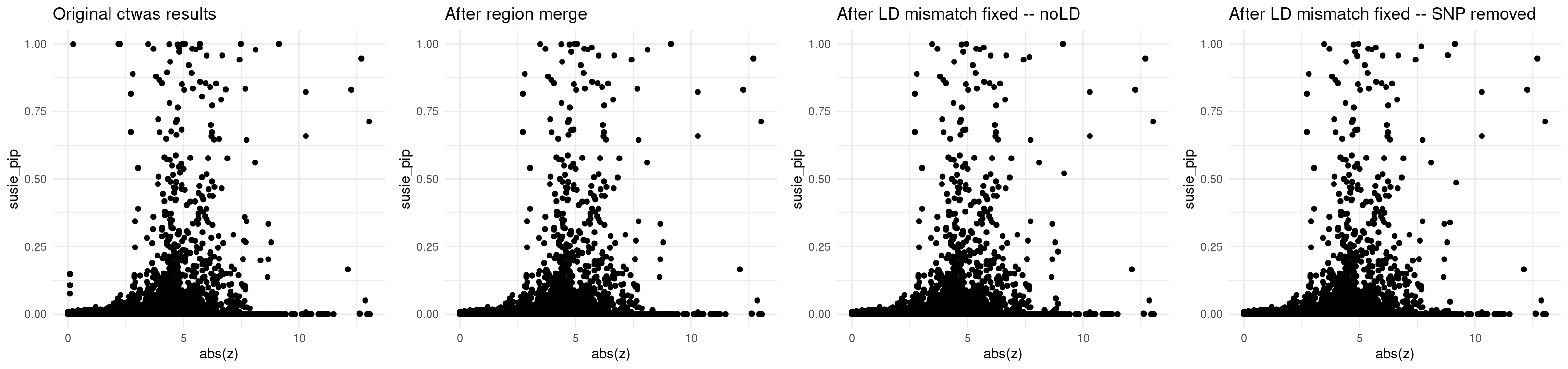

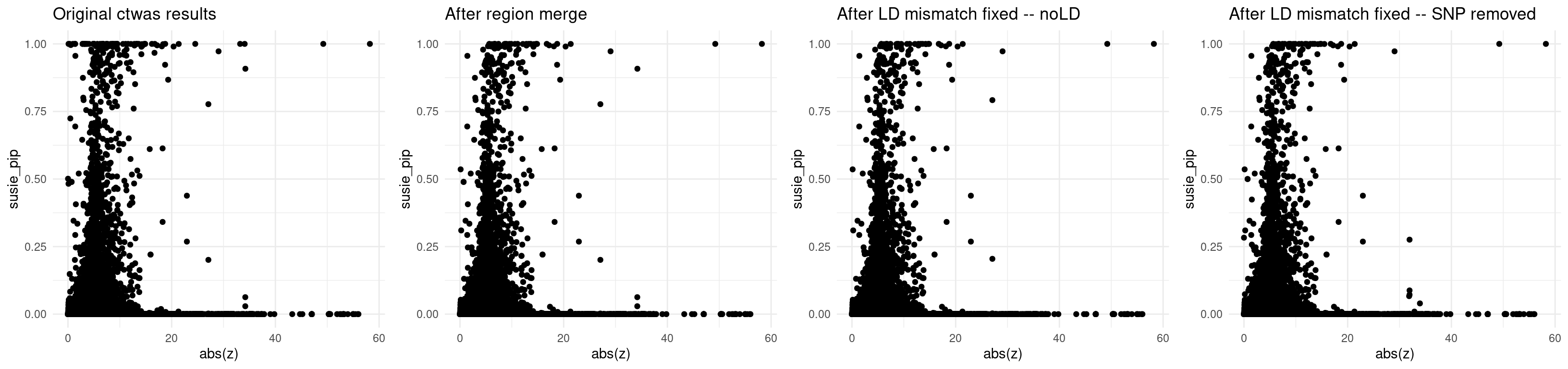

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

Version	Author	Date
6b46378	XSun	2024-12-11
8578389	XSun	2024-12-10
fc17945	XSun	2024-12-10

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

   1_51248054_53760589  3_110794923_113096852 10_110801735_113568673
                     1                      3                      3
11_116512631_117876395 12_121569746_124493434
                     3                      5

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

   1_51248054_53760589  3_110794923_113096852 10_110801735_113568673
                     1                      2                      1
11_116512631_117876395 12_121569746_124493434
                     1                      3

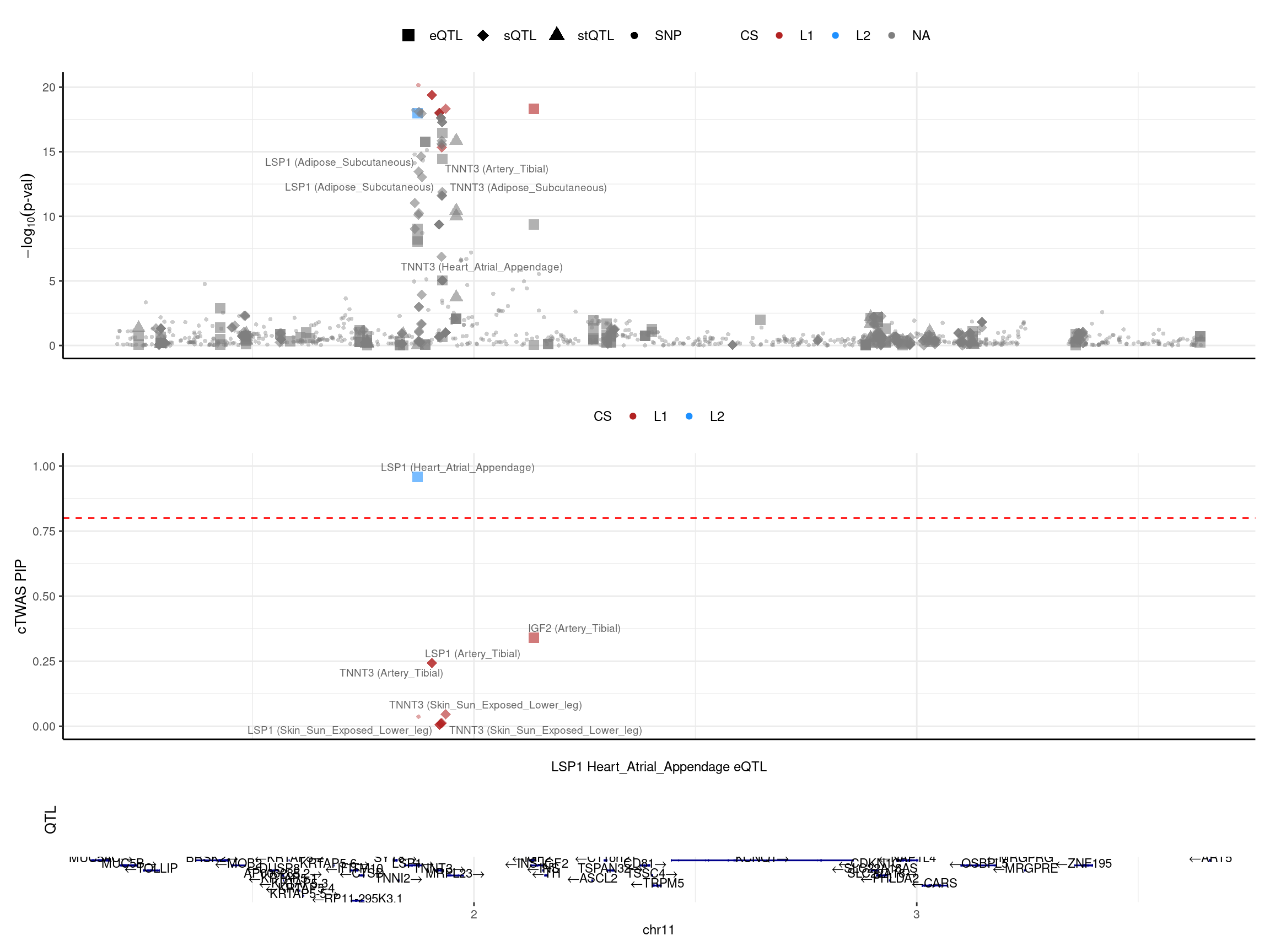

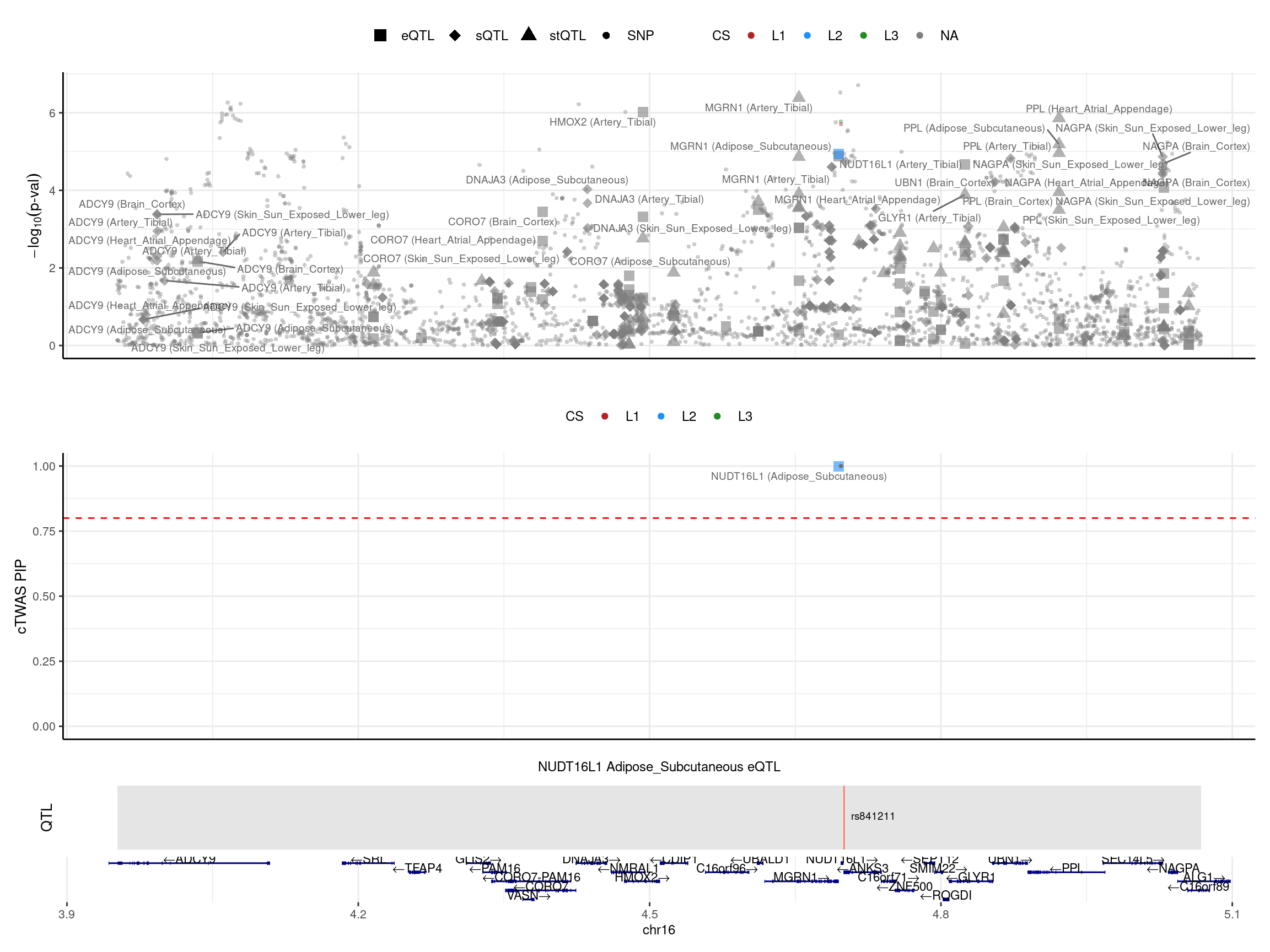

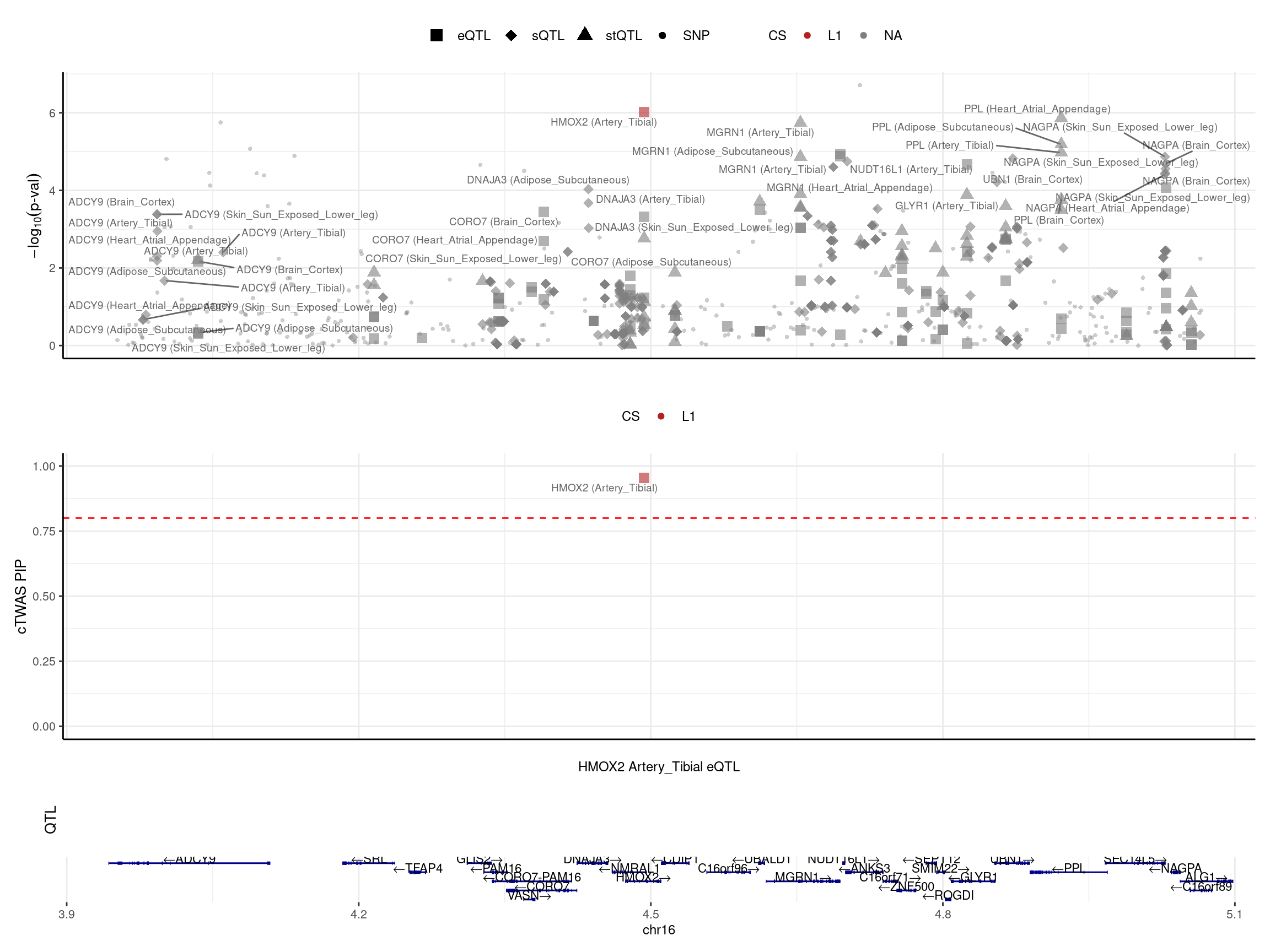

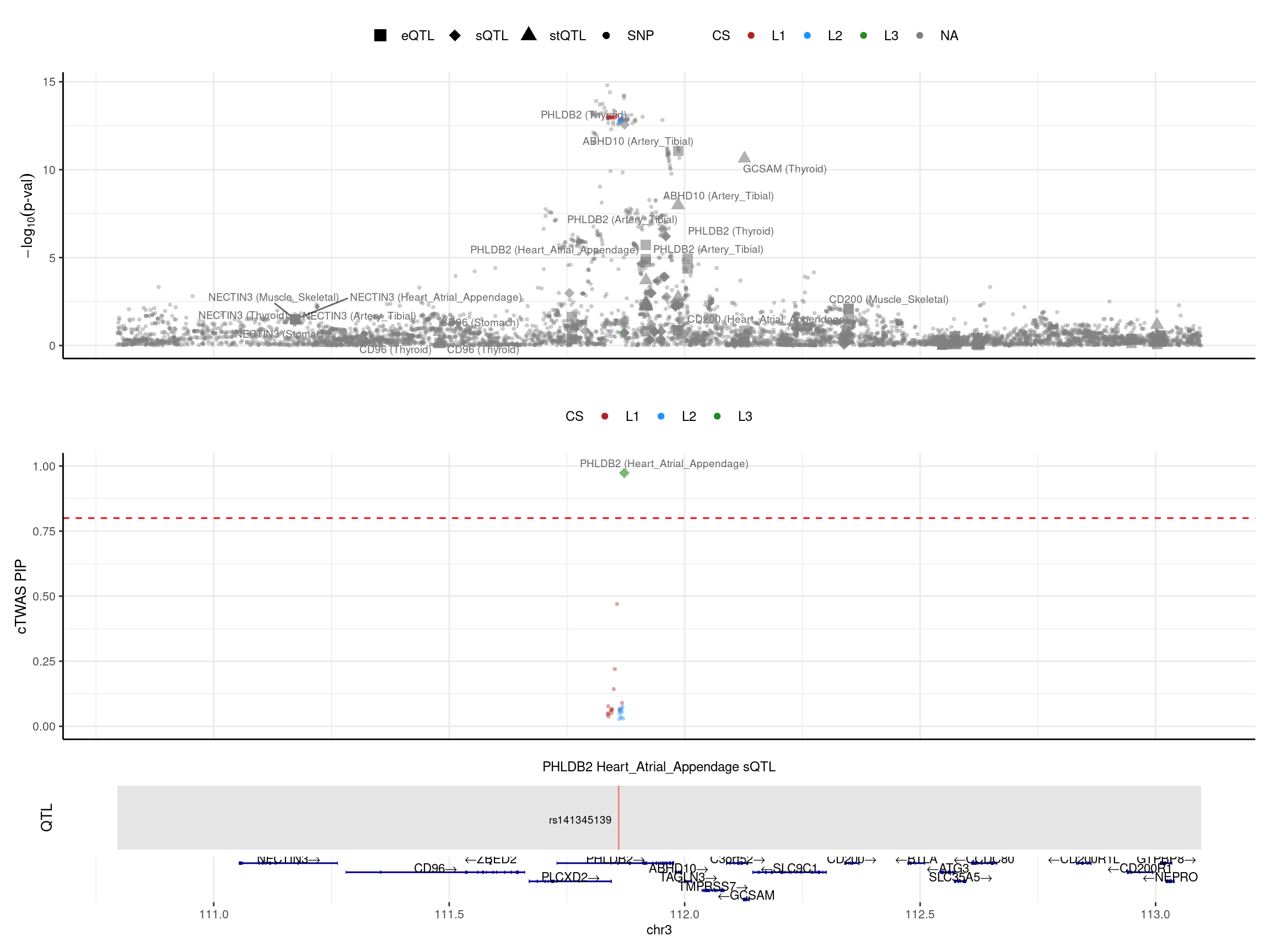

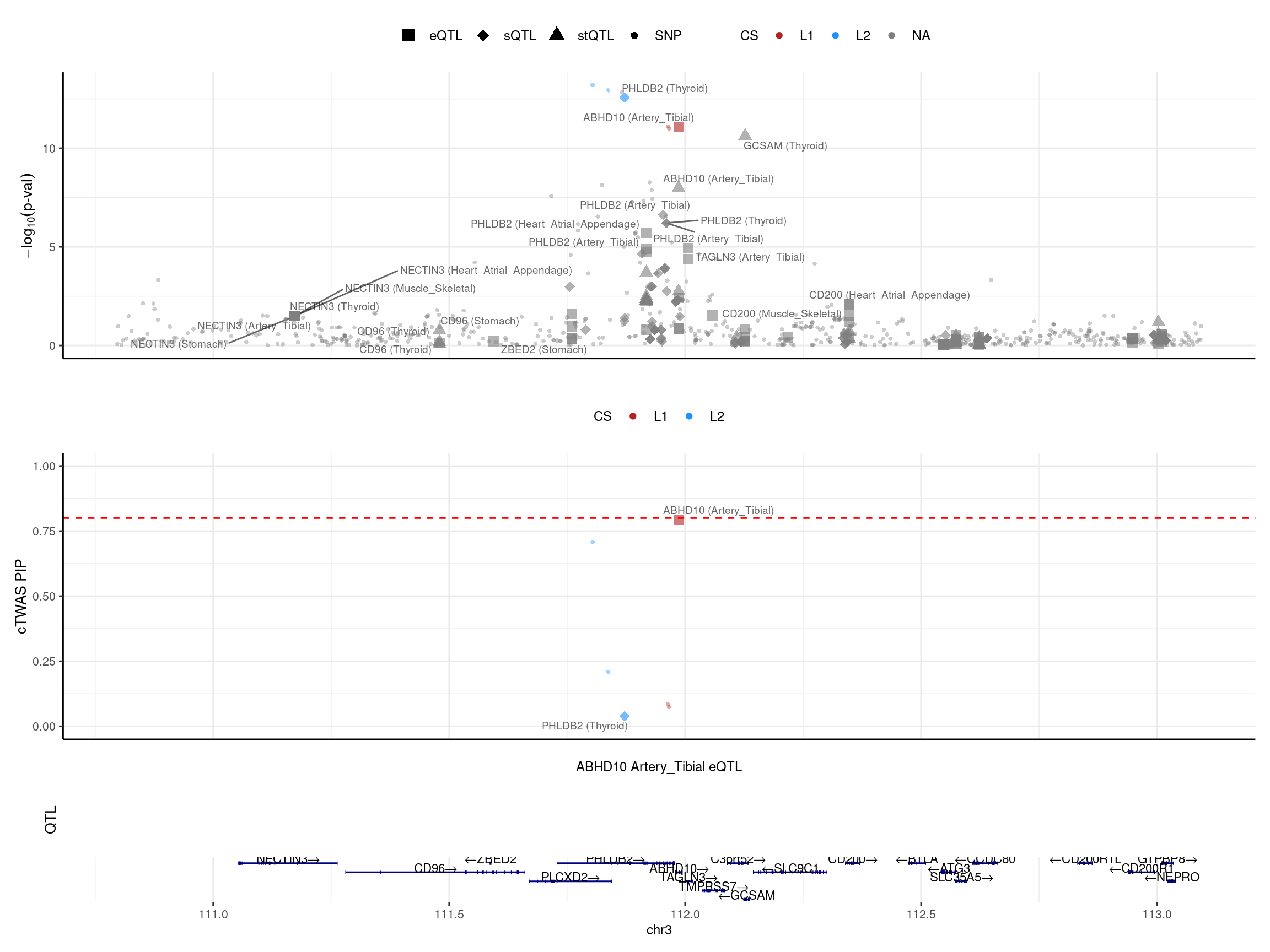

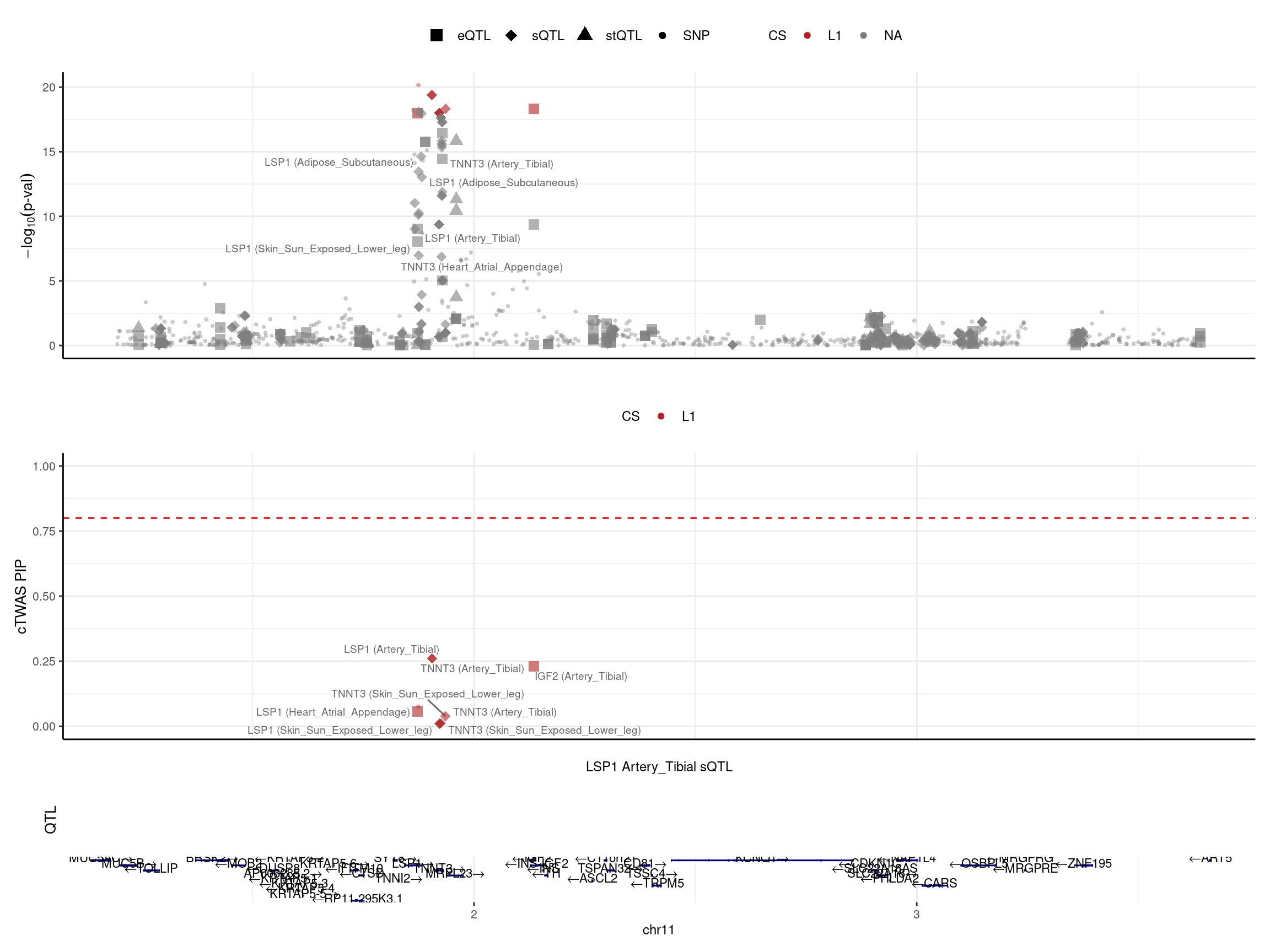

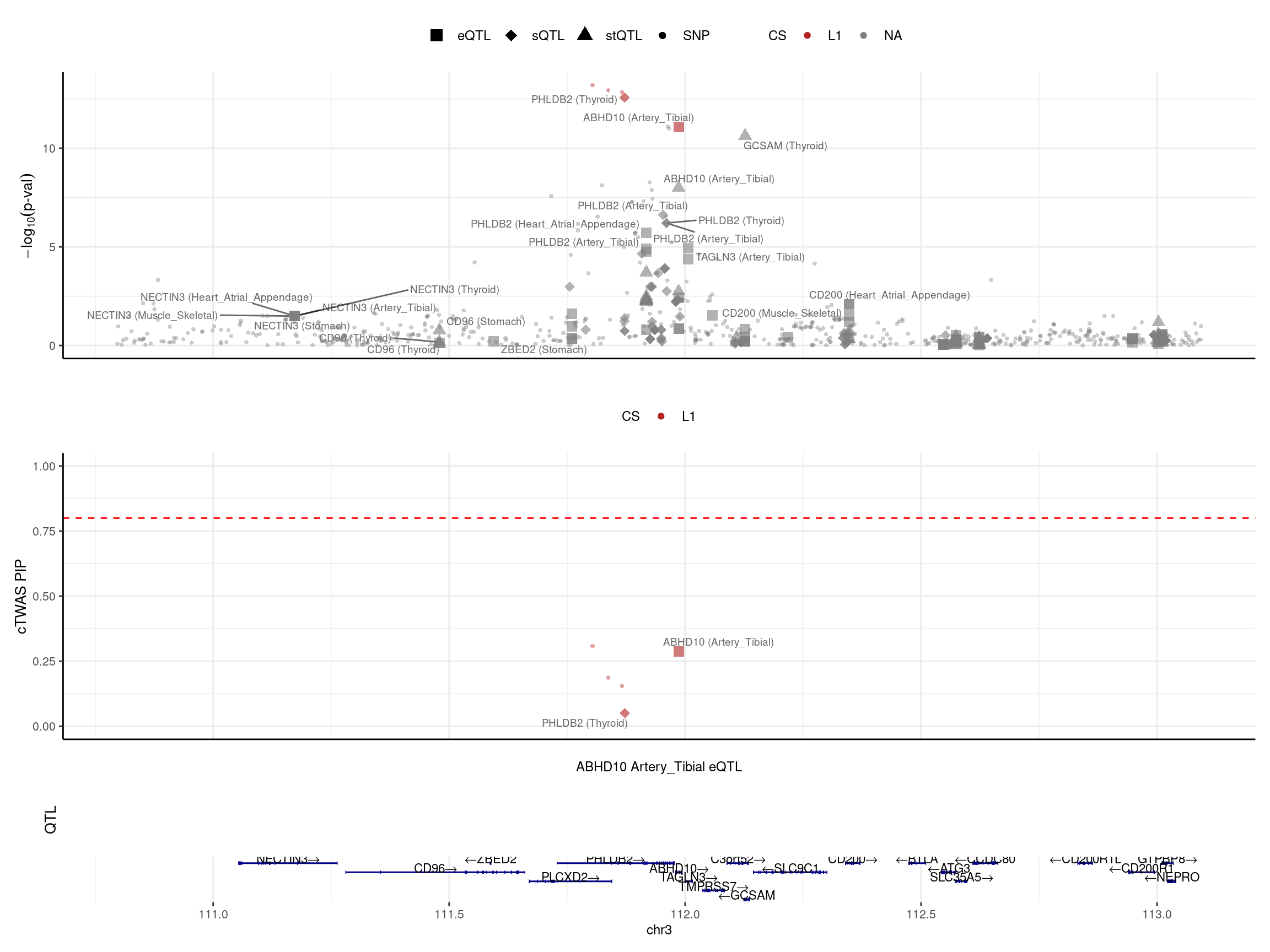

Examples for LD-mismatch fixing

weights_origin <- readRDS(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/",trait,".preprocessed.weights.RDS"))

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_weights_updated_",trait,".rdata"))

region_id <- "3_110794923_113096852"

finemap_res_rm <- anno_finemap_res(finemap_res_rm,
                                          snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                          mapping_table = mapping_two,
                                          add_gene_annot = TRUE,
                                          map_by = "molecular_id",
                                          drop_unmapped = TRUE,
                                          add_position = TRUE,
                                          use_gene_pos = "mid")

2024-12-17 14:57:51 INFO::Annotating fine-mapping result ...
2024-12-17 14:57:51 INFO::Map molecular traits to genes
2024-12-17 14:57:51 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 14:57:59 INFO::Add gene positions
2024-12-17 14:58:00 INFO::Add SNP positions

finemap_res_ldmm_nold <- anno_finemap_res(finemap_res_ldmm_nold,
                                          snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                          mapping_table = mapping_two,
                                          add_gene_annot = TRUE,
                                          map_by = "molecular_id",
                                          drop_unmapped = TRUE,
                                          add_position = TRUE,
                                          use_gene_pos = "mid")

2024-12-17 14:58:10 INFO::Annotating fine-mapping result ...
2024-12-17 14:58:10 INFO::Map molecular traits to genes
2024-12-17 14:58:11 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 14:58:17 INFO::Add gene positions
2024-12-17 14:58:17 INFO::Add SNP positions

finemap_res_ldmm_removesnp <- anno_finemap_res(finemap_res_ldmm_removesnp,
                                   snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                   mapping_table = mapping_two,
                                   add_gene_annot = TRUE,
                                   map_by = "molecular_id",
                                   drop_unmapped = TRUE,
                                   add_position = TRUE,
                                   use_gene_pos = "mid")

2024-12-17 14:58:21 INFO::Annotating fine-mapping result ...
2024-12-17 14:58:21 INFO::Map molecular traits to genes
2024-12-17 14:58:21 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 14:58:24 INFO::Add gene positions
2024-12-17 14:58:25 INFO::Add SNP positions

finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]



print("locus plot -- after region merge")

[1] "locus plot -- after region merge"

make_locusplot(finemap_res_rm,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 14:58:32 INFO::Limit to protein coding genes
2024-12-17 14:58:32 INFO::focal id: intron_3_111859878_111884064|Heart_Atrial_Appendage_sQTL
2024-12-17 14:58:32 INFO::focal molecular trait: PHLDB2 Heart_Atrial_Appendage sQTL
2024-12-17 14:58:32 INFO::Range of locus: chr3:110795153-113096727
2024-12-17 14:58:33 INFO::focal molecular trait QTL positions: 111859891
2024-12-17 14:58:33 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: no LD")

[1] "locus plot -- LD mismatch: no LD"

make_locusplot(finemap_res_ldmm_nold,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 14:58:35 INFO::Limit to protein coding genes
2024-12-17 14:58:35 INFO::focal id: ENSG00000144827.8|Artery_Tibial_eQTL
2024-12-17 14:58:35 INFO::focal molecular trait: ABHD10 Artery_Tibial eQTL
2024-12-17 14:58:35 INFO::Range of locus: chr3:110796774-113093472
2024-12-17 14:58:35 INFO::focal molecular trait QTL positions:
2024-12-17 14:58:35 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: snp removed")

[1] "locus plot -- LD mismatch: snp removed"

make_locusplot(finemap_res_ldmm_removesnp,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_updated,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 14:58:37 INFO::Limit to protein coding genes
2024-12-17 14:58:37 INFO::focal id: ENSG00000144827.8|Artery_Tibial_eQTL
2024-12-17 14:58:37 INFO::focal molecular trait: ABHD10 Artery_Tibial eQTL
2024-12-17 14:58:37 INFO::Range of locus: chr3:110796774-113093472
2024-12-17 14:58:37 INFO::focal molecular trait QTL positions:
2024-12-17 14:58:37 INFO::Limit PIPs to credible sets

finemap_res_rm_gene_region <- finemap_res_rm_gene[finemap_res_rm_gene$region_id == region_id,]
finemap_res_ldmm_removesnp_gene_region <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$region_id == region_id,]
merged_region_gene <- merge(finemap_res_rm_gene_region,finemap_res_ldmm_removesnp_gene_region,by = "id")
merged_region_gene <- merged_region_gene[,c("id","gene_name.x","z.x","susie_pip.x","cs.x","z.y","susie_pip.y","cs.y")]
colnames(merged_region_gene) <- c("id","gene_name","z_regionmerge","susie_pip_regionmerge","cs_regionmerge","z_ldmismatch","susie_pip_ldmismatch","cs_ldmismatch")


ggplot(data = merged_region_gene, aes(x= z_regionmerge, y= z_ldmismatch)) +
  geom_point() +

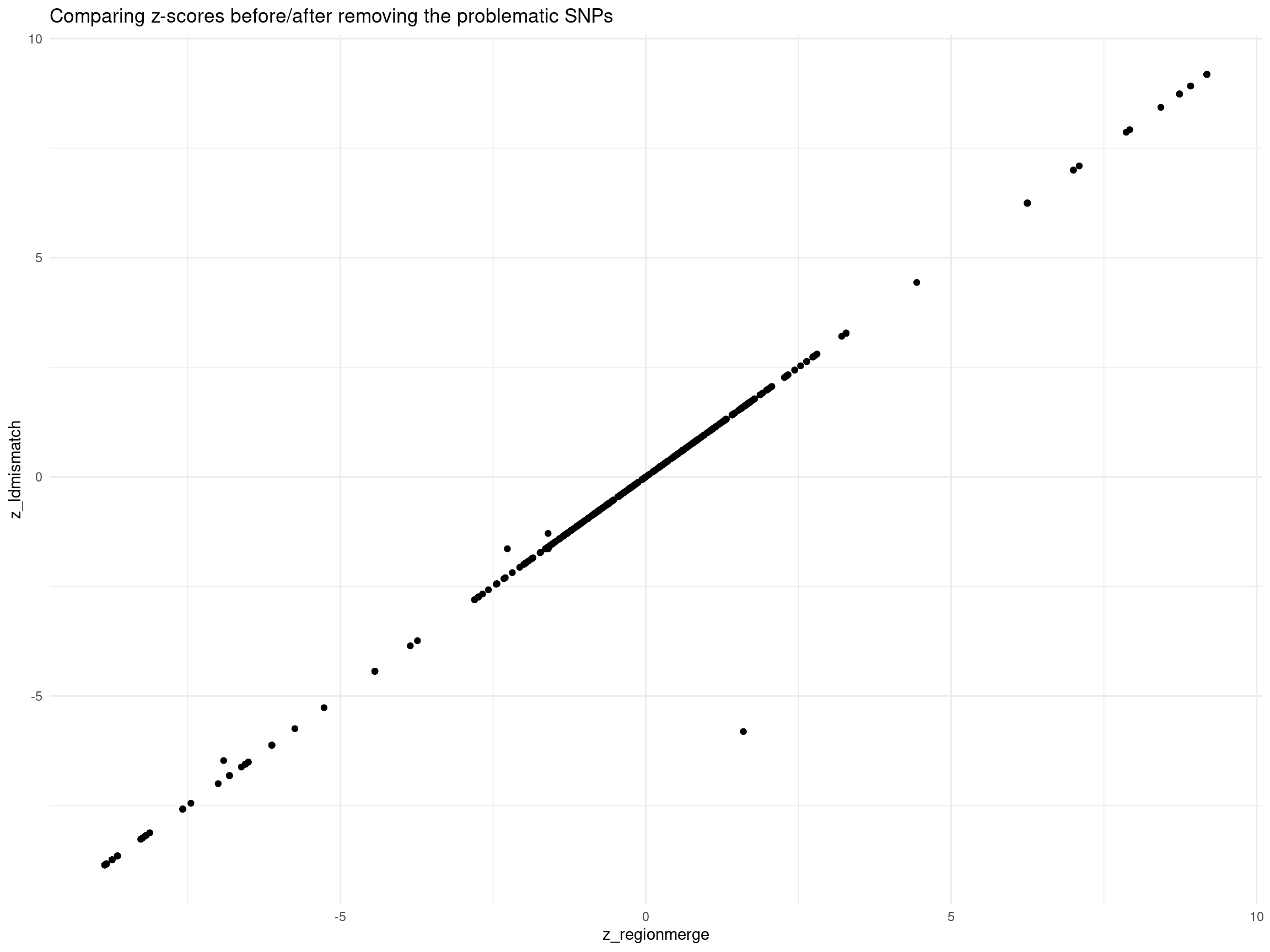

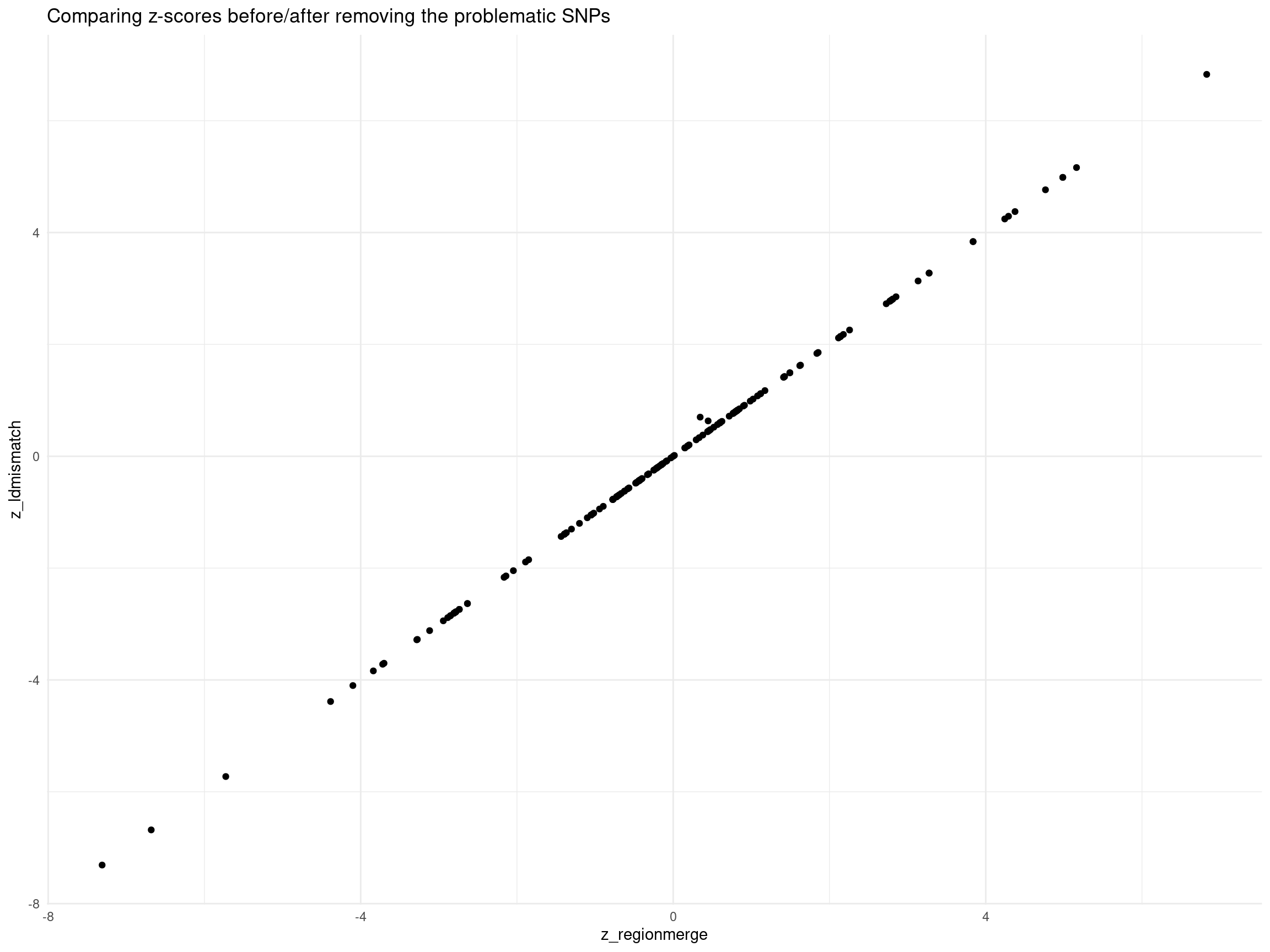

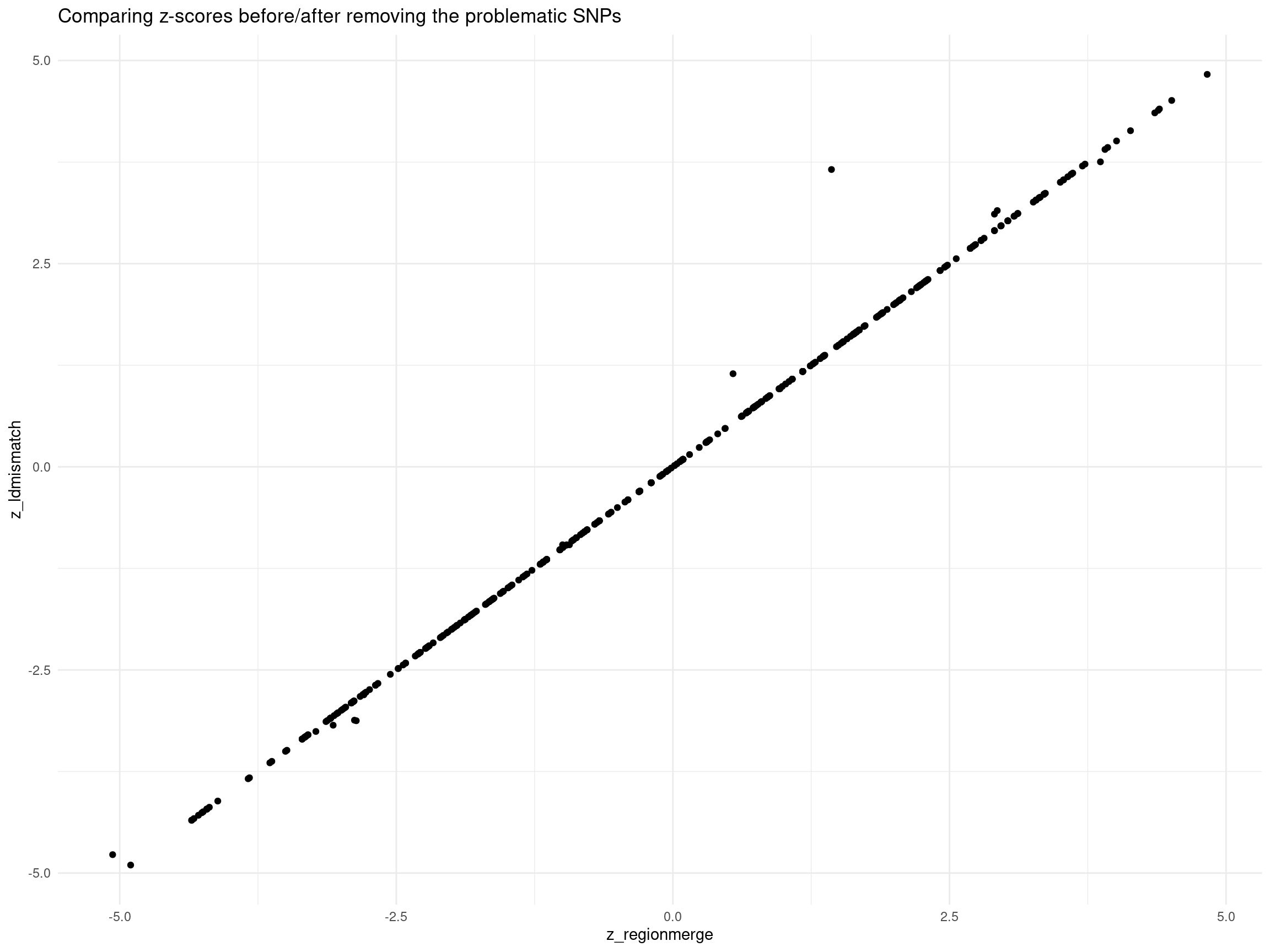

  ggtitle("Comparing z-scores before/after removing the problematic SNPs") +
  theme_minimal()

DT::datatable(merged_region_gene[merged_region_gene$z_ldmismatch != merged_region_gene$z_regionmerge,],caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Genes with different z before / after removing the problematic SNPs'),options = list(pageLength = 10) )

LDL-ukb-d-30780_irnt

trait <- "LDL-ukb-d-30780_irnt"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
8578389	XSun	2024-12-10
fc17945	XSun	2024-12-10

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

      5_11940_982137 19_44239955_45599439  19_9127717_13360313
                   1                    5                    5

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

      5_11940_982137 19_44239955_45599439  19_9127717_13360313
                   1                    5                    5

IBD-ebi-a-GCST004131

trait <- "IBD-ebi-a-GCST004131"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10
8578389	XSun	2024-12-10
fc17945	XSun	2024-12-10

finemap_res_ldmm_nold <- anno_finemap_res(finemap_res_ldmm_nold,
                                                        snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                                        mapping_table = mapping_two,
                                                        add_gene_annot = TRUE,
                                                        map_by = "molecular_id",
                                                        drop_unmapped = TRUE,
                                                        add_position = TRUE,
                                                        use_gene_pos = "mid")

2024-12-17 15:00:03 INFO::Annotating fine-mapping result ...
2024-12-17 15:00:03 INFO::Map molecular traits to genes
2024-12-17 15:00:03 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 15:00:06 INFO::Add gene positions
2024-12-17 15:00:07 INFO::Add SNP positions

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

  5_96627815_97979897 9_136047132_136605890  11_15721006_17556855
                    1                     2                     1
   17_3799018_4792966
                    1

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

  5_96627815_97979897 9_136047132_136605890  11_15721006_17556855
                    1                     2                     1
   17_3799018_4792966
                    1

SBP-ukb-a-360

trait <- "SBP-ukb-a-360"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10
8578389	XSun	2024-12-10
fc17945	XSun	2024-12-10

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

3_133533329_135738064   6_31603441_32714887    11_1192365_3644251
                    2                     3                     3
   16_3951195_5068344
                    3

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

3_133533329_135738064   6_31603441_32714887    11_1192365_3644251
                    2                     3                     3
   16_3951195_5068344
                    2

Examples for LD-mismatch fixing

Genes identified after LD mismatch fixing but not before

print("Two genes have PIP == 0 after region merging but PIP > 0.8 after LD mismatch fixed (remove snp method)")

[1] "Two genes have PIP == 0 after region merging but PIP > 0.8 after LD mismatch fixed (remove snp method)"

finemap_res_ldmm_removesnp_problematic_gene[finemap_res_ldmm_removesnp_problematic_gene$id %in% c("ENSG00000103415.11|Artery_Tibial_eQTL","ENSG00000130592.15|Heart_Atrial_Appendage_eQTL"),]

                                                    id       molecular_id type
2071100 ENSG00000130592.15|Heart_Atrial_Appendage_eQTL ENSG00000130592.15 eQTL
3183100          ENSG00000103415.11|Artery_Tibial_eQTL ENSG00000103415.11 eQTL
                       context                       group          region_id
2071100 Heart_Atrial_Appendage Heart_Atrial_Appendage|eQTL 11_1192365_3644251
3183100          Artery_Tibial          Artery_Tibial|eQTL 16_3951195_5068344
                z susie_pip      mu2 cs
2071100 -8.827064 0.9579495 45.68170 L2
3183100 -4.901233 0.9549517 23.23684 L1

weights_origin <- readRDS(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/",trait,".preprocessed.weights.RDS"))
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_weights_updated_",trait,".rdata"))


finemap_res_rm <- anno_finemap_res(finemap_res_rm,
                                          snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                          mapping_table = mapping_two,
                                          add_gene_annot = TRUE,
                                          map_by = "molecular_id",
                                          drop_unmapped = TRUE,
                                          add_position = TRUE,
                                          use_gene_pos = "mid")

2024-12-17 15:01:33 INFO::Annotating fine-mapping result ...
2024-12-17 15:01:33 INFO::Map molecular traits to genes
2024-12-17 15:01:33 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 15:01:39 INFO::Add gene positions
2024-12-17 15:01:39 INFO::Add SNP positions

finemap_res_ldmm_nold <- anno_finemap_res(finemap_res_ldmm_nold,
                                          snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                          mapping_table = mapping_two,
                                          add_gene_annot = TRUE,
                                          map_by = "molecular_id",
                                          drop_unmapped = TRUE,
                                          add_position = TRUE,
                                          use_gene_pos = "mid")

2024-12-17 15:01:50 INFO::Annotating fine-mapping result ...
2024-12-17 15:01:50 INFO::Map molecular traits to genes
2024-12-17 15:01:50 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 15:01:59 INFO::Add gene positions
2024-12-17 15:02:00 INFO::Add SNP positions

finemap_res_ldmm_removesnp <- anno_finemap_res(finemap_res_ldmm_removesnp,
                                   snp_map = updated_data_res_regionmerge[["updated_snp_map"]],
                                   mapping_table = mapping_two,
                                   add_gene_annot = TRUE,
                                   map_by = "molecular_id",
                                   drop_unmapped = TRUE,
                                   add_position = TRUE,
                                   use_gene_pos = "mid")

2024-12-17 15:02:04 INFO::Annotating fine-mapping result ...
2024-12-17 15:02:04 INFO::Map molecular traits to genes
2024-12-17 15:02:04 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-12-17 15:02:09 INFO::Add gene positions
2024-12-17 15:02:09 INFO::Add SNP positions

finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]
finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

region_id <- "11_1192365_3644251"

print("locus plot -- after region merge")

[1] "locus plot -- after region merge"

make_locusplot(finemap_res_rm,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:18 INFO::Limit to protein coding genes
2024-12-17 15:02:18 INFO::focal id: intron_11_1925116_1929810|Artery_Tibial_sQTL
2024-12-17 15:02:18 INFO::focal molecular trait: TNNT3 Artery_Tibial sQTL
2024-12-17 15:02:18 INFO::Range of locus: chr11:1192481-3644228
2024-12-17 15:02:19 INFO::focal molecular trait QTL positions: 1924654,1929361
2024-12-17 15:02:19 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: no LD")

[1] "locus plot -- LD mismatch: no LD"

make_locusplot(finemap_res_ldmm_nold,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:21 INFO::Limit to protein coding genes
2024-12-17 15:02:21 INFO::focal id: intron_11_1887576_1922857|Artery_Tibial_sQTL
2024-12-17 15:02:21 INFO::focal molecular trait: LSP1,TNNT3 Artery_Tibial,Artery_Tibial sQTL,sQTL
2024-12-17 15:02:21 INFO::Range of locus: chr11:1194372-3642292
2024-12-17 15:02:21 INFO::focal molecular trait QTL positions:
2024-12-17 15:02:21 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: snp removed")

[1] "locus plot -- LD mismatch: snp removed"

make_locusplot(finemap_res_ldmm_removesnp,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_updated,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:23 INFO::Limit to protein coding genes
2024-12-17 15:02:23 INFO::focal id: ENSG00000130592.15|Heart_Atrial_Appendage_eQTL
2024-12-17 15:02:23 INFO::focal molecular trait: LSP1 Heart_Atrial_Appendage eQTL
2024-12-17 15:02:23 INFO::Range of locus: chr11:1194372-3642292
2024-12-17 15:02:23 INFO::focal molecular trait QTL positions:
2024-12-17 15:02:23 INFO::Limit PIPs to credible sets

finemap_res_rm_gene_region <- finemap_res_rm_gene[finemap_res_rm_gene$region_id == region_id,]
finemap_res_ldmm_removesnp_gene_region <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$region_id == region_id,]
merged_region_gene <- merge(finemap_res_rm_gene_region,finemap_res_ldmm_removesnp_gene_region,by = "id")
merged_region_gene <- merged_region_gene[,c("id","gene_name.x","z.x","susie_pip.x","cs.x","z.y","susie_pip.y","cs.y")]
colnames(merged_region_gene) <- c("id","gene_name","z_regionmerge","susie_pip_regionmerge","cs_regionmerge","z_ldmismatch","susie_pip_ldmismatch","cs_ldmismatch")


ggplot(data = merged_region_gene, aes(x= z_regionmerge, y= z_ldmismatch)) +
  geom_point() +
  ggtitle("Comparing z-scores before/after removing the problematic SNPs") +
  theme_minimal()

DT::datatable(merged_region_gene[merged_region_gene$z_ldmismatch != merged_region_gene$z_regionmerge,],caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Genes with different z before / after removing the problematic SNPs'),options = list(pageLength = 10) )

region_id <- "16_3951195_5068344"

print("locus plot -- after region merge")

[1] "locus plot -- after region merge"

make_locusplot(finemap_res_rm,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:26 INFO::Limit to protein coding genes
2024-12-17 15:02:26 INFO::focal id: ENSG00000168101.14|Adipose_Subcutaneous_eQTL
2024-12-17 15:02:26 INFO::focal molecular trait: NUDT16L1 Adipose_Subcutaneous eQTL
2024-12-17 15:02:26 INFO::Range of locus: chr16:3951797-5067946
2024-12-17 15:02:26 INFO::focal molecular trait QTL positions: 4700273
2024-12-17 15:02:26 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: no LD")

[1] "locus plot -- LD mismatch: no LD"

make_locusplot(finemap_res_ldmm_nold,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_origin,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:28 INFO::Limit to protein coding genes
2024-12-17 15:02:28 INFO::focal id: ENSG00000103415.11|Artery_Tibial_eQTL
2024-12-17 15:02:28 INFO::focal molecular trait: HMOX2 Artery_Tibial eQTL
2024-12-17 15:02:28 INFO::Range of locus: chr16:3951921-5065327
2024-12-17 15:02:28 INFO::focal molecular trait QTL positions:
2024-12-17 15:02:28 INFO::Limit PIPs to credible sets

print("locus plot -- LD mismatch: snp removed")

[1] "locus plot -- LD mismatch: snp removed"

make_locusplot(finemap_res_ldmm_removesnp,
               region_id = region_id,
               ens_db = ens_db,
               weights = weights_updated,
               highlight_pip = 0.8,
               filter_protein_coding_genes = TRUE,
               filter_cs = TRUE,
               color_pval_by = "cs",
               color_pip_by = "cs",panel.heights = c(4,4,1,1))

2024-12-17 15:02:31 INFO::Limit to protein coding genes
2024-12-17 15:02:31 INFO::focal id: ENSG00000103415.11|Artery_Tibial_eQTL
2024-12-17 15:02:31 INFO::focal molecular trait: HMOX2 Artery_Tibial eQTL
2024-12-17 15:02:31 INFO::Range of locus: chr16:3951921-5065327
2024-12-17 15:02:31 INFO::focal molecular trait QTL positions:
2024-12-17 15:02:31 INFO::Limit PIPs to credible sets

finemap_res_rm_gene_region <- finemap_res_rm_gene[finemap_res_rm_gene$region_id == region_id,]
finemap_res_ldmm_removesnp_gene_region <- finemap_res_ldmm_removesnp_gene[finemap_res_ldmm_removesnp_gene$region_id == region_id,]
merged_region_gene <- merge(finemap_res_rm_gene_region,finemap_res_ldmm_removesnp_gene_region,by = "id")
merged_region_gene <- merged_region_gene[,c("id","gene_name.x","z.x","susie_pip.x","cs.x","z.y","susie_pip.y","cs.y")]
colnames(merged_region_gene) <- c("id","gene_name","z_regionmerge","susie_pip_regionmerge","cs_regionmerge","z_ldmismatch","susie_pip_ldmismatch","cs_ldmismatch")


ggplot(data = merged_region_gene, aes(x= z_regionmerge, y= z_ldmismatch)) +
  geom_point() +
  ggtitle("Comparing z-scores before/after removing the problematic SNPs") +
  theme_minimal()

DT::datatable(merged_region_gene[merged_region_gene$z_ldmismatch != merged_region_gene$z_regionmerge,],caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Genes with different z before / after removing the problematic SNPs'),options = list(pageLength = 10) )

SCZ-ieu-b-5102

trait <- "SCZ-ieu-b-5102"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

 1_27075376_29689034  2_47985862_49795119 11_62456299_66131160
                   2                    1                    3

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

 1_27075376_29689034  2_47985862_49795119 11_62456299_66131160
                   2                    1                    3

WBC-ieu-b-30

trait <- "WBC-ieu-b-30"

results_dir_origin <- paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/results/",trait,"/")
ctwas_res_origin <- readRDS(paste0(results_dir_origin,trait,".ctwas.res.RDS"))

finemap_res_origin <- ctwas_res_origin$finemap_res

Region merge

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/rm_",trait,".rdata"))

finemap_res_rm <- res_regionmerge$finemap_res
finemap_res_rm_boundary_genes <- finemap_res_rm[finemap_res_rm$id %in%selected_boundary_genes$id,]
finemap_res_rm_boundary_genes_pip <- finemap_res_rm_boundary_genes[,c("id","susie_pip","cs")]


finemap_res_origin_boundary_genes <- finemap_res_origin[finemap_res_origin$id %in%selected_boundary_genes$id,]
finemap_res_origin_boundary_genes_pip <- finemap_res_origin_boundary_genes[,c("id","susie_pip","cs")]

finemap_res_compare_regionmerge <- merge(finemap_res_origin_boundary_genes_pip,finemap_res_rm_boundary_genes_pip, by = "id")
colnames(finemap_res_compare_regionmerge) <- c("id","susie_pip_origin","cs_origin","susie_pip_reginmerge","cs_reginmerge")

DT::datatable(finemap_res_compare_regionmerge,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Selected boundary genes (susie_pip > 0.5)'),options = list(pageLength = 10) )

LD-mismatch

Diagnosis

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres02_", trait, ".rdata"))

pip_02 <- data.frame(
  "PIP Threshold" = "0.2",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_diagnosis_pipthres05_", trait, ".rdata"))


pip_05 <- data.frame(
  "PIP Threshold" = "0.5",
  "Number of Selected Regions" = length(selected_region_ids),
  "Number of Problematic Genes" = length(problematic_genes),
  "Number of Problematic Regions" = length(problematic_region_ids),
  "Number of Problematic SNPs" = length(res_ldmismatch$problematic_snps),
  "Number of Flipped SNPs" = length(res_ldmismatch$flipped_snps)
)


results_table <- rbind(pip_02, pip_05)

DT::datatable(results_table,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','LD mismatch diagnosis table for different gene cutoff'),options = list(pageLength = 10) )

Comparing 2 LD mismatch fixing methods

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_nold_",trait,".rdata"))
finemap_res_ldmm_nold <- res_ldmm_nold$finemap_res
load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_",trait,".rdata"))
finemap_res_ldmm_removesnp <- res_ldmm_removesnp$finemap_res

finemap_res_ldmm_nold_problematic_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$region_id %in% problematic_region_ids & finemap_res_ldmm_nold$type != "SNP",]
finemap_res_ldmm_removesnp_problematic_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$region_id %in% problematic_region_ids & finemap_res_ldmm_removesnp$type != "SNP",]

merge_2method <- merge(finemap_res_ldmm_nold_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p1 <- ggplot(data = merge_2method, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_noLD", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

finemap_res_rm_problematic_gene <- finemap_res_rm[finemap_res_rm$region_id %in% problematic_region_ids & finemap_res_rm$type != "SNP",]

merge_rm_ldmm_nold <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_nold_problematic_gene, by ="id")

p2 <- ggplot(data = merge_rm_ldmm_nold, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_noLD") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()


merge_rm_ldmm_removesnp <-  merge(finemap_res_rm_problematic_gene,finemap_res_ldmm_removesnp_problematic_gene, by ="id")

p3 <- ggplot(data = merge_rm_ldmm_removesnp, aes(x= susie_pip.x, y= susie_pip.y)) +
  geom_point() +
  labs(x="PIP_after_regionmerge", y="PIP_removesnp") +
  geom_abline(slope = 1, intercept = 0, col ="red") +
  ggtitle("problematic regions only, genes only") +
  theme_minimal()

grid.arrange(p1,p2,p3, ncol = 3)

Version	Author	Date
6b46378	XSun	2024-12-11
89a98e7	XSun	2024-12-10

Comparing z-scores and susie_pip

finemap_res_origin <- ctwas_res_origin$finemap_res
finemap_res_origin_gene <- finemap_res_origin[finemap_res_origin$type != "SNP",]

p1 <- ggplot(data = finemap_res_origin_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("Original ctwas results") +
  theme_minimal()


finemap_res_rm_gene <- finemap_res_rm[finemap_res_rm$type != "SNP",]

p2 <- ggplot(data = finemap_res_rm_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After region merge") +
  theme_minimal()


finemap_res_ldmm_nold_gene <- finemap_res_ldmm_nold[finemap_res_ldmm_nold$type !="SNP",]

p3 <- ggplot(data = finemap_res_ldmm_nold_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- noLD") +
  theme_minimal()

finemap_res_ldmm_removesnp_gene <- finemap_res_ldmm_removesnp[finemap_res_ldmm_removesnp$type !="SNP",]

p4 <- ggplot(data = finemap_res_ldmm_removesnp_gene, aes(x= abs(z), y= susie_pip)) +
  geom_point() +
  ggtitle("After LD mismatch fixed -- SNP removed") +
  theme_minimal()


grid.arrange(p1,p2,p3,p4, ncol = 4)

print("L - estimated in region merge step")

[1] "L - estimated in region merge step"

updated_data_res_regionmerge$updated_region_L[problematic_region_ids]

   1_51248054_53760589  1_153208353_154797927    2_84913556_87738988
                     1                      2                      2
 2_180448012_181401304  2_184415446_189017339  2_217530757_219589829
                     5                      1                      3
   3_49279539_51797999    5_68555033_71944629    6_86359782_88112422
                     1                      1                      1
 9_110015744_112068802   11_59013076_62456299 13_112918174_114344378
                     3                      3                      4
  17_38653091_40721152   19_43358303_44239955   19_48778970_51029311
                     5                      3                      3
  22_29255810_31043932   22_31043932_32268999 10_101189482_104935290
                     3                      1                      2

load(paste0("/project/xinhe/xsun/multi_group_ctwas/11.multi_group_1008/post_process_rm_ld/ldmismatch_pipthres05_removesnp_rescreenregion_",trait,".rdata"))
print("L - re-estimated after updating z_scores, region data")

[1] "L - re-estimated after updating z_scores, region data"

screen_res$screened_region_L[problematic_region_ids]

   1_51248054_53760589  1_153208353_154797927    2_84913556_87738988
                     1                      2                      2
 2_180448012_181401304  2_184415446_189017339  2_217530757_219589829
                     3                      1                      4
   3_49279539_51797999    5_68555033_71944629    6_86359782_88112422
                     1                      1                      1
 9_110015744_112068802   11_59013076_62456299 13_112918174_114344378
                     3                      3                      4
  17_38653091_40721152   19_43358303_44239955   19_48778970_51029311
                     5                      4                      3
  22_29255810_31043932   22_31043932_32268999 10_101189482_104935290
                     3                      1                      2

sessionInfo()

R version 4.2.0 (2022-04-22)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.3.13-el7-x86_64/lib/libopenblas_haswellp-r0.3.13.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] dplyr_1.1.4               gridExtra_2.3
 [3] ggplot2_3.5.1             EnsDb.Hsapiens.v86_2.99.0
 [5] ensembldb_2.20.2          AnnotationFilter_1.20.0
 [7] GenomicFeatures_1.48.3    AnnotationDbi_1.58.0
 [9] Biobase_2.56.0            GenomicRanges_1.48.0
[11] GenomeInfoDb_1.39.9       IRanges_2.30.0
[13] S4Vectors_0.34.0          BiocGenerics_0.42.0
[15] ctwas_0.4.20.9001

loaded via a namespace (and not attached):
  [1] colorspace_2.0-3            rjson_0.2.21
  [3] ellipsis_0.3.2              rprojroot_2.0.3
  [5] XVector_0.36.0              locuszoomr_0.2.1
  [7] fs_1.5.2                    rstudioapi_0.13
  [9] farver_2.1.0                DT_0.22
 [11] ggrepel_0.9.1               bit64_4.0.5
 [13] fansi_1.0.3                 xml2_1.3.3
 [15] codetools_0.2-18            logging_0.10-108
 [17] cachem_1.0.6                knitr_1.39
 [19] jsonlite_1.8.0              workflowr_1.7.0
 [21] Rsamtools_2.12.0            dbplyr_2.1.1
 [23] png_0.1-7                   readr_2.1.2
 [25] compiler_4.2.0              httr_1.4.3
 [27] assertthat_0.2.1            Matrix_1.5-3
 [29] fastmap_1.1.0               lazyeval_0.2.2
 [31] cli_3.6.1                   later_1.3.0
 [33] htmltools_0.5.2             prettyunits_1.1.1
 [35] tools_4.2.0                 gtable_0.3.0
 [37] glue_1.6.2                  GenomeInfoDbData_1.2.8
 [39] rappdirs_0.3.3              Rcpp_1.0.12
 [41] jquerylib_0.1.4             vctrs_0.6.5
 [43] Biostrings_2.64.0           rtracklayer_1.56.0
 [45] crosstalk_1.2.0             xfun_0.41
 [47] stringr_1.5.1               lifecycle_1.0.4
 [49] irlba_2.3.5                 restfulr_0.0.14
 [51] XML_3.99-0.14               zlibbioc_1.42.0
 [53] zoo_1.8-10                  scales_1.3.0
 [55] gggrid_0.2-0                hms_1.1.1
 [57] promises_1.2.0.1            MatrixGenerics_1.8.0
 [59] ProtGenerics_1.28.0         parallel_4.2.0
 [61] SummarizedExperiment_1.26.1 LDlinkR_1.2.3
 [63] yaml_2.3.5                  curl_4.3.2
 [65] memoise_2.0.1               sass_0.4.1
 [67] biomaRt_2.54.1              stringi_1.7.6
 [69] RSQLite_2.3.1               highr_0.9
 [71] BiocIO_1.6.0                filelock_1.0.2
 [73] BiocParallel_1.30.3         rlang_1.1.2
 [75] pkgconfig_2.0.3             matrixStats_0.62.0
 [77] bitops_1.0-7                evaluate_0.15
 [79] lattice_0.20-45             purrr_1.0.2
 [81] labeling_0.4.2              GenomicAlignments_1.32.0
 [83] htmlwidgets_1.5.4           cowplot_1.1.1
 [85] bit_4.0.4                   tidyselect_1.2.0
 [87] magrittr_2.0.3              R6_2.5.1
 [89] generics_0.1.2              DelayedArray_0.22.0
 [91] DBI_1.2.2                   withr_2.5.0
 [93] pgenlibr_0.3.3              pillar_1.9.0
 [95] whisker_0.4                 KEGGREST_1.36.3
 [97] RCurl_1.98-1.7              mixsqp_0.3-43
 [99] tibble_3.2.1                crayon_1.5.1
[101] utf8_1.2.2                  BiocFileCache_2.4.0
[103] plotly_4.10.0               tzdb_0.4.0
[105] rmarkdown_2.25              progress_1.2.2
[107] grid_4.2.0                  data.table_1.14.2
[109] blob_1.2.3                  git2r_0.30.1
[111] digest_0.6.29               tidyr_1.3.0
[113] httpuv_1.6.5                munsell_0.5.0
[115] viridisLite_0.4.0           bslib_0.3.1

6 Traits, 5 tissues, eQTL + sQTL + stQTL – compute ukbb LD, eqtl, sqtl from predictdb; stQTL from Munro et al; post-processing

XSun

2024-12-09

Introduction

aFib-ebi-a-GCST006414

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip

Examples for LD-mismatch fixing

LDL-ukb-d-30780_irnt

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip

IBD-ebi-a-GCST004131

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip

SBP-ukb-a-360

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip

Examples for LD-mismatch fixing

Genes identified after LD mismatch fixing but not before

SCZ-ieu-b-5102

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip

WBC-ieu-b-30

Region merge

LD-mismatch

Diagnosis

Comparing 2 LD mismatch fixing methods

Comparing z-scores and susie_pip
