Last updated: 2024-09-24

Checks: 6 1

Knit directory: multigroup_ctwas_analysis/

This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

R Markdown file: uncommitted changes

The R Markdown is untracked by Git. To know which version of the R Markdown file created these results, you’ll want to first commit it to the Git repo. If you’re still working on the analysis, you can ignore this warning. When you’re finished, you can run wflow_publish to commit the R Markdown file and build the HTML.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20231112)

The command set.seed(20231112) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: d7cd32f

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version d7cd32f. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


Ignored files:
    Ignored:    .Rhistory
    Ignored:    results/

Untracked files:
    Untracked:  analysis/LDL_predictdb_esQTL.Rmd
    Untracked:  analysis/multi_group_compare_predictdb_munro_4weights_8weights_update_thin1.Rmd
    Untracked:  analysis/multi_group_compare_predictdb_munro_updated_cs.Rmd
    Untracked:  analysis/multi_group_compare_predictdb_munro_updated_cs_thin1.Rmd

Unstaged changes:
    Modified:   analysis/index.Rmd

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

There are no past versions. Publish this analysis with wflow_publish() to start tracking its development.

Settings

6 modalities from Munro

Weight processing:

PredictDB:

all the PredictDB are converted from FUSION weights

drop_strand_ambig = TRUE,
scale_by_ld_variance = F (FUSION converted weights)
load_predictdb_LD = F,

Parameter estimation and fine-mapping

niter_prefit = 5,
niter = 30(default),
L: determined by uniform susie,
group_prior_var_structure = “shared_type”,
maxSNP = 20000,
min_nonSNP_PIP = 0.5,

weights from predictdb

Weight processing:

PredictDB (eqtl, sqtl)

drop_strand_ambig = TRUE,
scale_by_ld_variance = T
load_predictdb_LD = F,

Parameter estimation and fine-mapping

group_prior_var_structure = “shared_type”,
filter_L = TRUE,
filter_nonSNP_PIP = FALSE,
min_nonSNP_PIP = 0.5,
min_abs_corr = 0.1,

mem: 100g 5cores

Results

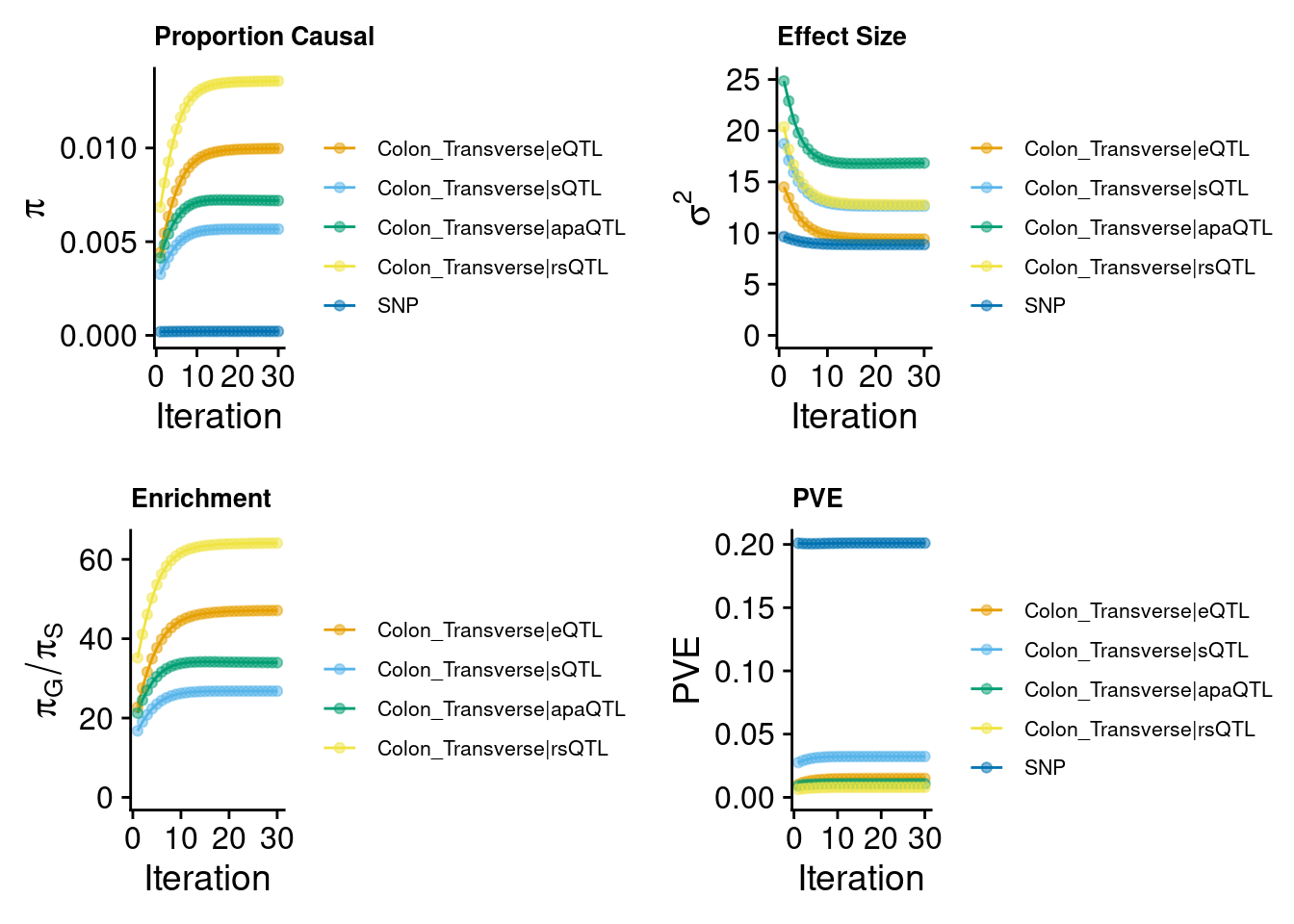

Four weights

predictdb eQTL + sQTL + Munro rsQTL + apaQTL

Warning: Expected 2 pieces. Missing pieces filled with `NA` in 849089 rows [131, 132,
133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148,
149, 150, ...].

2024-09-24 12:41:29 INFO::Annotating fine-mapping result ...
2024-09-24 12:41:29 INFO::Map molecular traits to genes
2024-09-24 12:41:29 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-09-24 12:41:35 INFO::Add gene positions
2024-09-24 12:41:35 INFO::Add SNP positions

2024-09-24 12:41:49 INFO::Limit gene results to credible sets

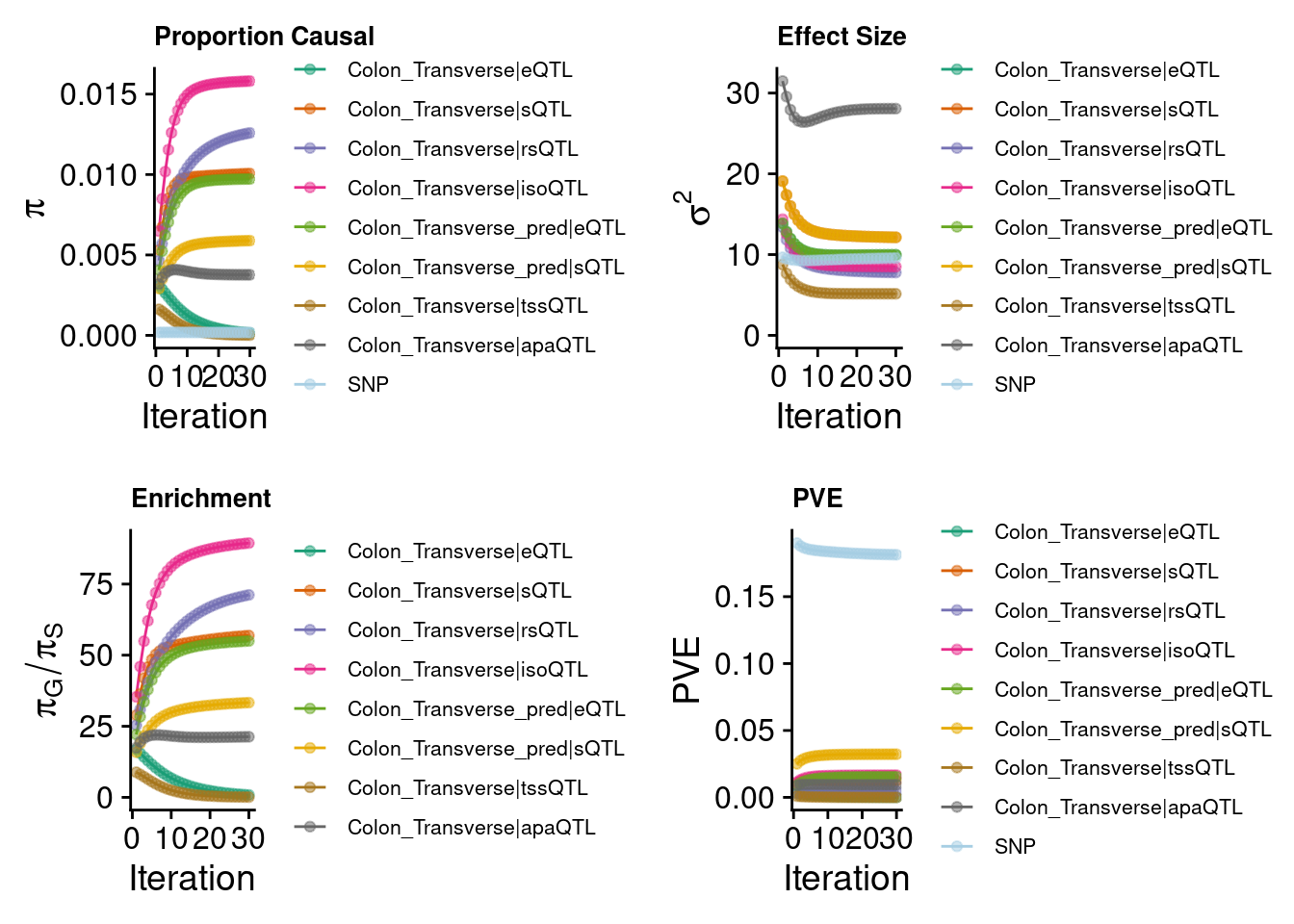

Eight weights

predictdb eQTL + sQTL + Munro 6 modalities

Warning: Expected 2 pieces. Missing pieces filled with `NA` in 872421 rows [243, 244,
245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 256, 257, 258, 259, 260,
261, 262, ...].

2024-09-24 12:42:26 INFO::Annotating fine-mapping result ...
2024-09-24 12:42:26 INFO::Map molecular traits to genes
2024-09-24 12:42:27 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-09-24 12:42:29 INFO::Add gene positions
2024-09-24 12:42:29 INFO::Add SNP positions

2024-09-24 12:42:40 INFO::Limit gene results to credible sets

Comparing results from 2 settings

[1] "all genes discovered by 4 weights setting were overlapped with 8 weights setting"

Unique genes reported by 8 weights setting

Neither of these two settings reported TNFRSF6B.

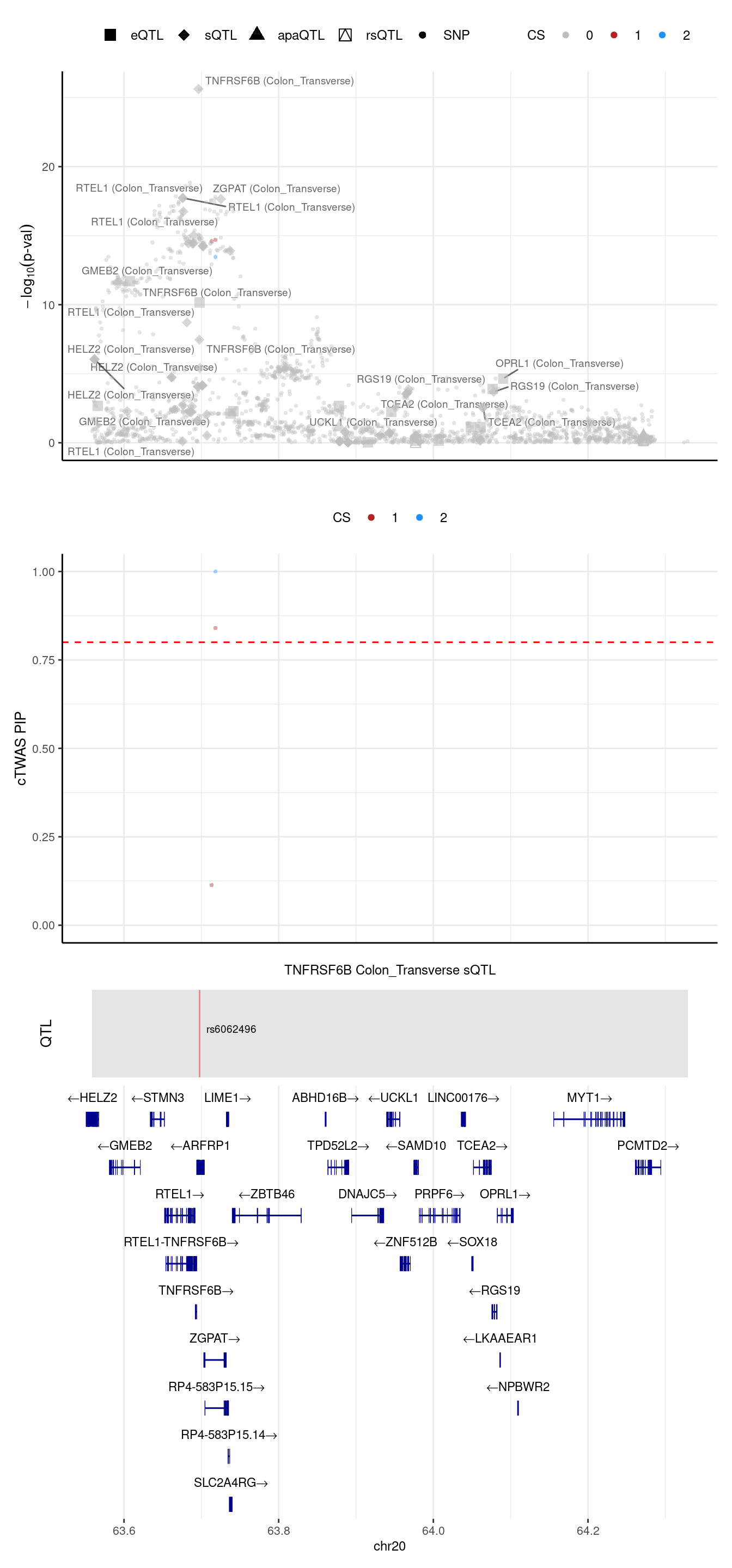

[1] "Locus plot -- 4 weights setting"

[1] "The estimated L = 2"

2024-09-24 12:42:42 INFO::Limit to protein coding genes
2024-09-24 12:42:42 INFO::focal id: intron_20_63695854_63696760|Colon_Transverse_sQTL
2024-09-24 12:42:42 INFO::focal molecular trait: TNFRSF6B Colon_Transverse sQTL
2024-09-24 12:42:42 INFO::Range of locus: chr20:63558727-64328976
2024-09-24 12:42:43 INFO::focal molecular trait QTL positions: 63697746
2024-09-24 12:42:43 INFO::Limit PIPs to credible sets

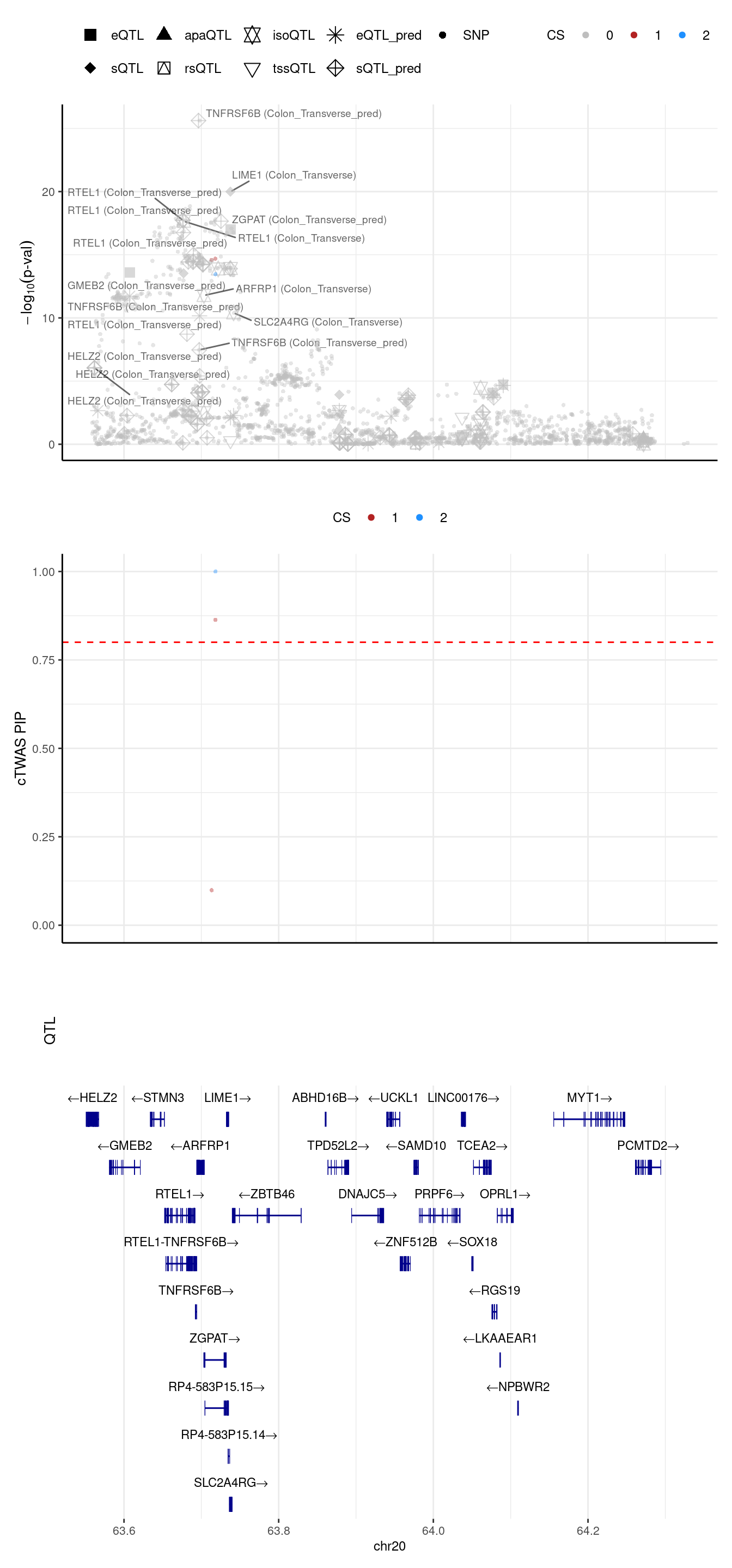

[1] "Locus plot -- 8 weights setting"

[1] "The estimated L = 2"

2024-09-24 12:42:47 INFO::Limit to protein coding genes
2024-09-24 12:42:47 INFO::focal id: intron_20_63695854_63696760|Colon_Transverse_sQTL
2024-09-24 12:42:47 INFO::focal molecular trait:
2024-09-24 12:42:47 INFO::Range of locus: chr20:63558727-64328976
2024-09-24 12:42:47 INFO::focal molecular trait QTL positions:
2024-09-24 12:42:47 INFO::Limit PIPs to credible sets

[1] "weights for "
[1] "ENSG00000243509:chr20:63695854:63696760:clu_44474_+|Colon_Transverse_sQTL"
              weight
rs6011040 -0.0211776
rs8957    -0.0255221
[1] "weights for "
[1] "ENSG00000243509.4|Colon_Transverse_pred_eQTL"
               weight
rs41298344 -0.1634486
rs55765053  0.0848684
[1] "weights for "
[1] "intron_20_63697191_63697328|Colon_Transverse_pred_sQTL"
              weight
rs55765053 0.2576402
[1] "weights for "
[1] "intron_20_63697522_63698280|Colon_Transverse_pred_sQTL"
                weight
rs74748720 -0.01402964
[1] "weights for "
[1] "intron_20_63695854_63696760|Colon_Transverse_pred_sQTL"
              weight
rs6062496 -0.0549018

The LD for the high pip SNPs in 4 weights setting and the sQTLs in 8 weights setting. The SNPs in row1 and row2 (column1 and column2) are the high pip SNPs in 4 weights setting.

We notice that, the 2 high pip SNPs are in LD themselves. And they are in LD with rs6011040 and rs8957, the sQTL for ENSG00000243509:chr20:63695854:63696760:clu_44474_+|splicing_Colon_Transverse, whose susie pip = 7.516698e-11 in 8 weights setting.

RS_number	rs6089961	rs202143810	rs41298344	rs55765053	rs6062496	rs74748720	rs6011040	rs8957
rs6089961	1.0	0.963	0.164	0.021	0.364	0.009	0.592	0.447
rs202143810	0.963	1.0	0.152	0.02	0.35	0.008	0.569	0.445
rs41298344	0.164	0.152	1.0	0.004	0.071	0.002	0.103	0.128
rs55765053	0.021	0.02	0.004	1.0	0.055	0.003	0.034	0.028
rs6062496	0.364	0.35	0.071	0.055	1.0	0.023	0.611	0.486
rs74748720	0.009	0.008	0.002	0.003	0.023	1.0	0.014	0.012
rs6011040	0.592	0.569	0.103	0.034	0.611	0.014	1.0	0.791
rs8957	0.447	0.445	0.128	0.028	0.486	0.012	0.791	1.0

However, the earlier 2 SNPs still have high pip

sQTL (predictdb) only

Warning: Expected 2 pieces. Missing pieces filled with `NA` in 837367 rows [89, 90, 91,
92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108,
...].

2024-09-24 12:43:27 INFO::Annotating fine-mapping result ...
2024-09-24 12:43:27 INFO::Map molecular traits to genes
2024-09-24 12:43:27 INFO::Split PIPs for molecular traits mapped to multiple genes
2024-09-24 12:43:29 INFO::Add gene positions
2024-09-24 12:43:29 INFO::Add SNP positions

2024-09-24 12:43:34 INFO::Limit gene results to credible sets

For the earlier example, TNFRSF6B.

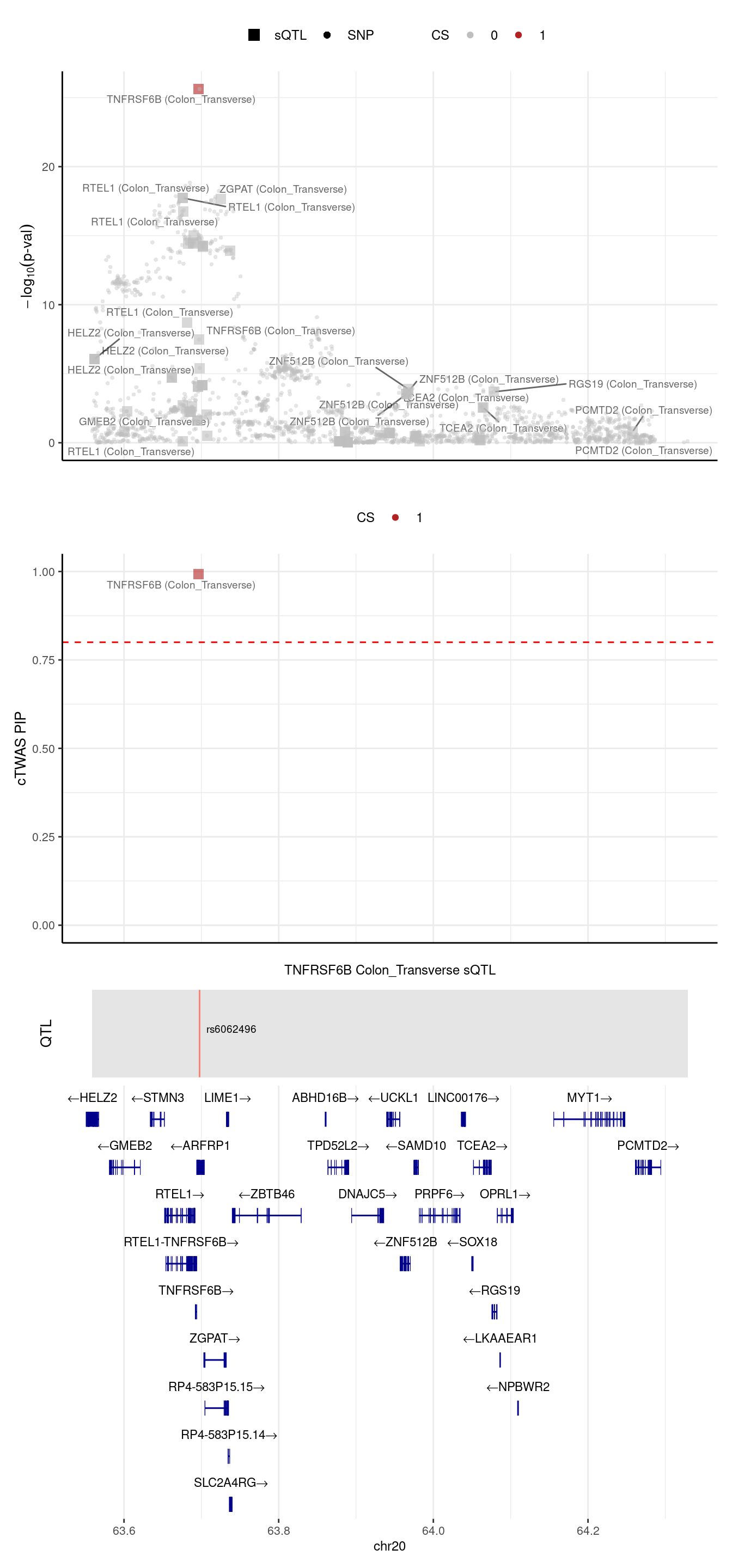

[1] "Locus plot -- sQTL setting"

[1] "The estimated L = 1"

2024-09-24 12:43:36 INFO::Limit to protein coding genes
2024-09-24 12:43:36 INFO::focal id: intron_20_63695854_63696760|Colon_Transverse_sQTL
2024-09-24 12:43:36 INFO::focal molecular trait: TNFRSF6B Colon_Transverse sQTL
2024-09-24 12:43:36 INFO::Range of locus: chr20:63558727-64328976
2024-09-24 12:43:36 INFO::focal molecular trait QTL positions: 63697746
2024-09-24 12:43:36 INFO::Limit PIPs to credible sets

TNFRSF6B and different settings

weights	pre-estimated L	genes with PIP > 0.8	SNPs with PIP > 0.8
predictdb eQTL + sQTL	2	/	rs6089961, rs202143810
predictdb eQTL + sQTL	set L=1 manually	TNFRSF6B	/
predictdb eQTL + sQTL	set L=10 manually	ARFRP: combined pip > 0.8	rs6089961，rs202143810
predictdb sQTL	1	TNFRSF6B	/
predictdb eQTL + sQTL + Munro rsQTL + apaQTL	2	/	rs6089961, rs202143810
predictdb eQTL + sQTL + Munro 6 modalities	2	/	rs6089961, rs202143810
Munro 6 modalities, region merge	3	/	rs6089961, rs202143810

IBD GWAS only, uniform prior

L=1~10, rs6062496 is the only SNP with PIP > 0.8 & in CS. The PIP for this SNP is 1. For the other two SNPs, rs6089961 and rs202143810, the highest PIP is 0.002.

sessionInfo()

R version 4.2.0 (2022-04-22)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.3.13-el7-x86_64/lib/libopenblas_haswellp-r0.3.13.so

locale:
[1] C

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] EnsDb.Hsapiens.v86_2.99.0 ensembldb_2.20.2
 [3] AnnotationFilter_1.20.0   GenomicFeatures_1.48.3
 [5] AnnotationDbi_1.58.0      Biobase_2.56.0
 [7] GenomicRanges_1.48.0      GenomeInfoDb_1.39.9
 [9] IRanges_2.30.0            S4Vectors_0.34.0
[11] BiocGenerics_0.42.0       forcats_0.5.1
[13] stringr_1.5.1             dplyr_1.1.4
[15] purrr_1.0.2               readr_2.1.2
[17] tidyr_1.3.0               tibble_3.2.1
[19] ggplot2_3.5.1             tidyverse_1.3.1
[21] data.table_1.14.2         ctwas_0.4.14

loaded via a namespace (and not attached):
  [1] colorspace_2.0-3            rjson_0.2.21
  [3] ellipsis_0.3.2              rprojroot_2.0.3
  [5] XVector_0.36.0              locuszoomr_0.2.1
  [7] fs_1.5.2                    rstudioapi_0.13
  [9] farver_2.1.0                DT_0.22
 [11] ggrepel_0.9.1               bit64_4.0.5
 [13] lubridate_1.8.0             fansi_1.0.3
 [15] xml2_1.3.3                  codetools_0.2-18
 [17] logging_0.10-108            cachem_1.0.6
 [19] knitr_1.39                  jsonlite_1.8.0
 [21] workflowr_1.7.0             Rsamtools_2.12.0
 [23] broom_0.8.0                 dbplyr_2.1.1
 [25] png_0.1-7                   compiler_4.2.0
 [27] httr_1.4.3                  backports_1.4.1
 [29] assertthat_0.2.1            Matrix_1.5-3
 [31] fastmap_1.1.0               lazyeval_0.2.2
 [33] cli_3.6.1                   later_1.3.0
 [35] htmltools_0.5.2             prettyunits_1.1.1
 [37] tools_4.2.0                 gtable_0.3.0
 [39] glue_1.6.2                  GenomeInfoDbData_1.2.8
 [41] rappdirs_0.3.3              Rcpp_1.0.12
 [43] cellranger_1.1.0            jquerylib_0.1.4
 [45] vctrs_0.6.5                 Biostrings_2.64.0
 [47] rtracklayer_1.56.0          crosstalk_1.2.0
 [49] xfun_0.41                   rvest_1.0.2
 [51] lifecycle_1.0.4             irlba_2.3.5
 [53] restfulr_0.0.14             XML_3.99-0.14
 [55] zlibbioc_1.42.0             zoo_1.8-10
 [57] scales_1.3.0                gggrid_0.2-0
 [59] hms_1.1.1                   promises_1.2.0.1
 [61] MatrixGenerics_1.8.0        ProtGenerics_1.28.0
 [63] parallel_4.2.0              SummarizedExperiment_1.26.1
 [65] LDlinkR_1.2.3               yaml_2.3.5
 [67] curl_4.3.2                  memoise_2.0.1
 [69] sass_0.4.1                  biomaRt_2.54.1
 [71] stringi_1.7.6               RSQLite_2.3.1
 [73] highr_0.9                   BiocIO_1.6.0
 [75] filelock_1.0.2              BiocParallel_1.30.3
 [77] rlang_1.1.2                 pkgconfig_2.0.3
 [79] matrixStats_0.62.0          bitops_1.0-7
 [81] evaluate_0.15               lattice_0.20-45
 [83] labeling_0.4.2              GenomicAlignments_1.32.0
 [85] htmlwidgets_1.5.4           cowplot_1.1.1
 [87] bit_4.0.4                   tidyselect_1.2.0
 [89] magrittr_2.0.3              R6_2.5.1
 [91] generics_0.1.2              DelayedArray_0.22.0
 [93] DBI_1.2.2                   withr_2.5.0
 [95] haven_2.5.0                 pgenlibr_0.3.3
 [97] pillar_1.9.0                KEGGREST_1.36.3
 [99] RCurl_1.98-1.7              mixsqp_0.3-43
[101] modelr_0.1.8                crayon_1.5.1
[103] utf8_1.2.2                  BiocFileCache_2.4.0
[105] plotly_4.10.0               tzdb_0.4.0
[107] rmarkdown_2.25              progress_1.2.2
[109] readxl_1.4.0                grid_4.2.0
[111] blob_1.2.3                  git2r_0.30.1
[113] reprex_2.0.1                digest_0.6.29
[115] httpuv_1.6.5                munsell_0.5.0
[117] viridisLite_0.4.0           bslib_0.3.1

Comparing predictdb & Munro: predictdb eQTL + sQTL + Munro rsQTL + apaQTL VS all 8 weights – updated functions – thin method V1

XSun

2024-09-23
