Settings
6 modalities from Munro
- Weight processing:
PredictDB:
all the PredictDB are converted from FUSION weights
- drop_strand_ambig = TRUE,
- scale_by_ld_variance = F (FUSION converted weights)
- load_predictdb_LD = F,
- Parameter estimation and fine-mapping
- niter_prefit = 5,
- niter = 30(default),
- L: determined by uniform susie,
- group_prior_var_structure = “shared_type”,
- maxSNP = 20000,
- min_nonSNP_PIP = 0.5,
weights from predictdb
- Weight processing:
PredictDB (eqtl, sqtl)
- drop_strand_ambig = TRUE,
- scale_by_ld_variance = T
- load_predictdb_LD = F,
- Parameter estimation and fine-mapping
- group_prior_var_structure = “shared_type”,
- filter_L = TRUE,
- filter_nonSNP_PIP = FALSE,
- min_nonSNP_PIP = 0.5,
- min_abs_corr = 0.1,
mem: 100g 5cores
Results

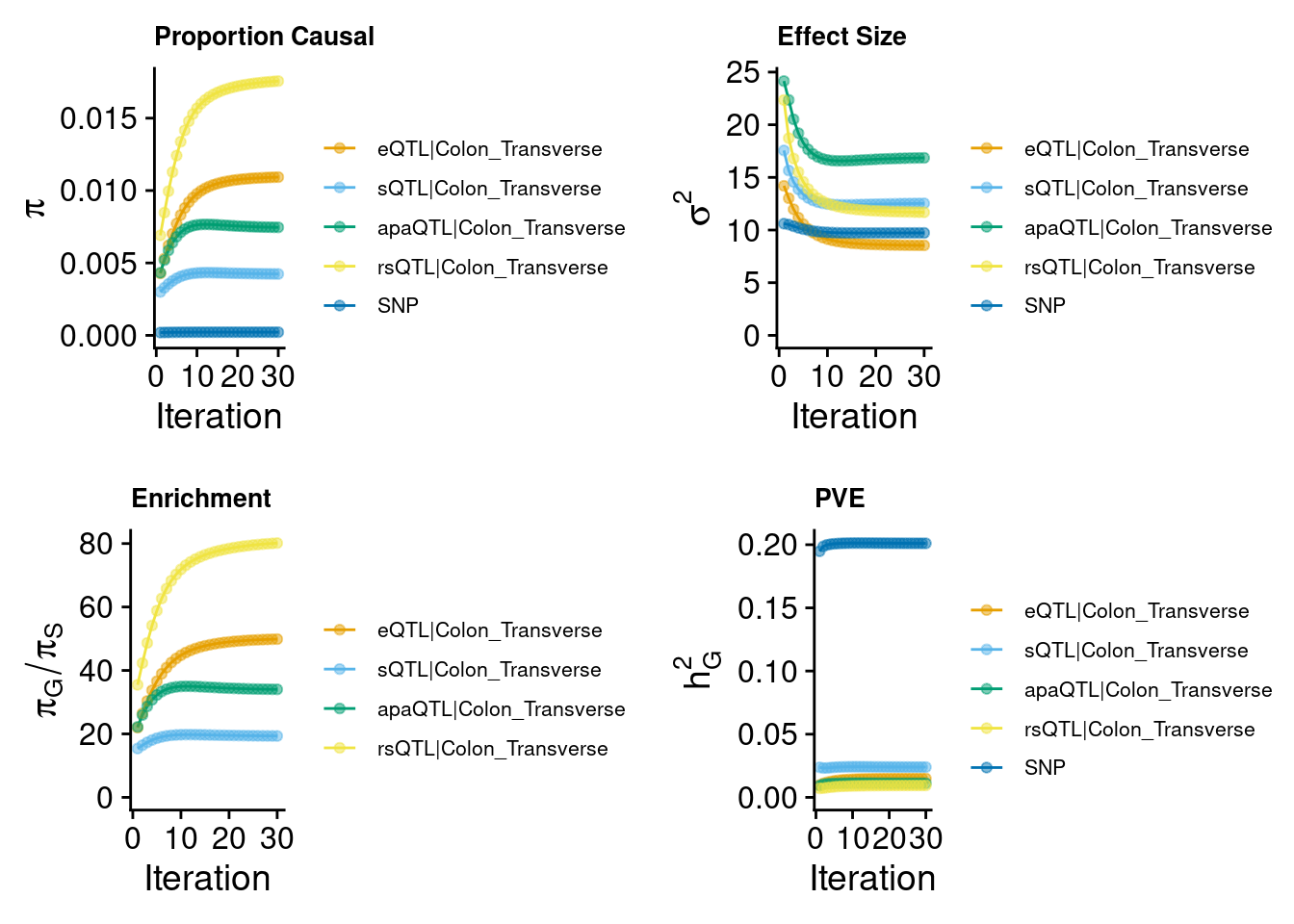

Four weights
predictdb eQTL + sQTL + Munro rsQTL + apaQTL
| Version | Author | Date |
|---|---|---|
| a581199 | XSun | 2024-09-09 |
2024-09-12 17:09:22 INFO::Annotating ctwas finemapping result ...
2024-09-12 17:09:32 INFO::add gene_name and gene_type
2024-09-12 17:09:36 INFO::split PIPs for traits mapped to multiple genes
2024-09-12 17:09:36 INFO::use gene mid positions

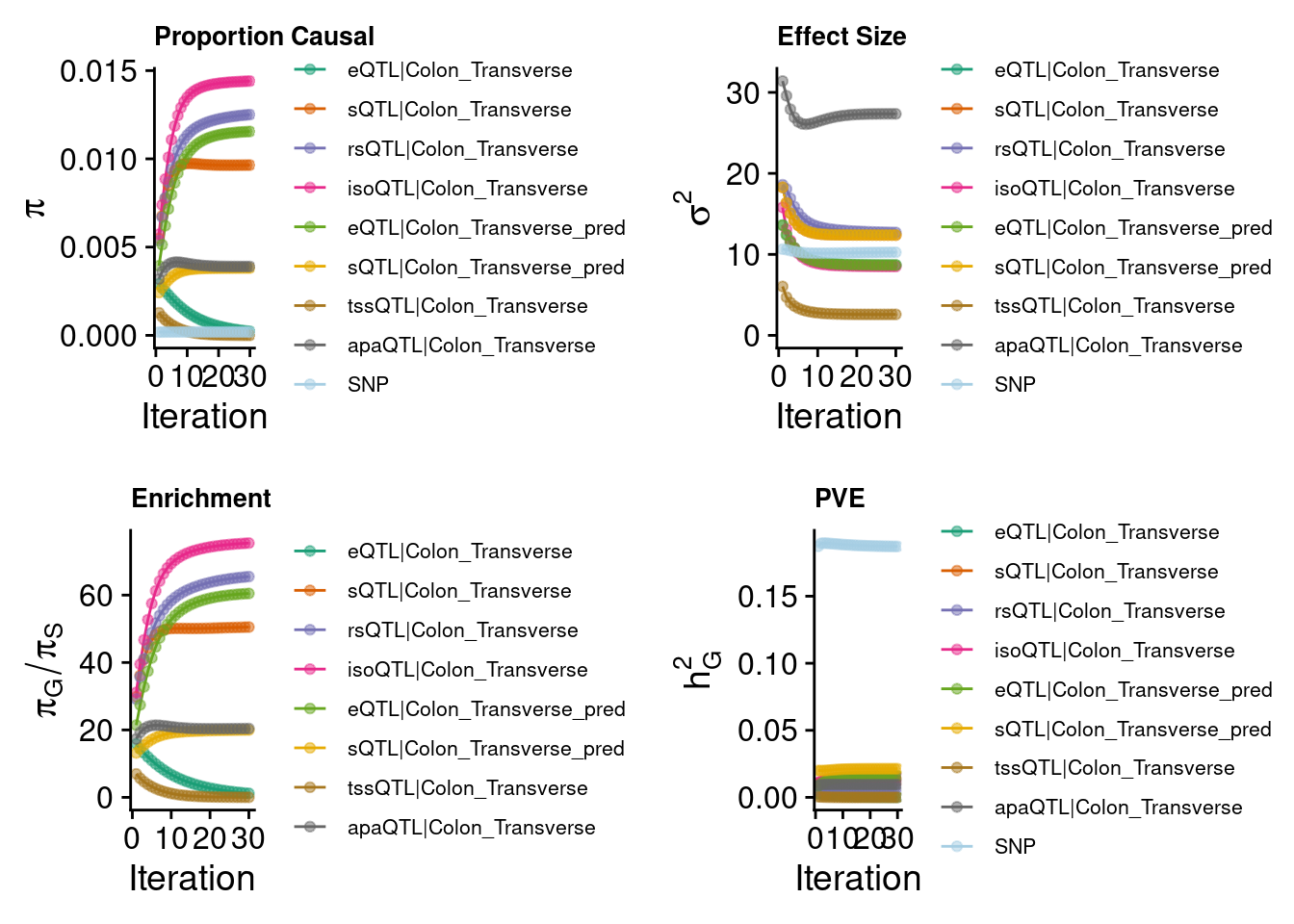

2024-09-12 17:09:36 INFO::add SNP positionsEight weights
predictdb eQTL + sQTL + Munro 6 modalities
| Version | Author | Date |
|---|---|---|
| a581199 | XSun | 2024-09-09 |
2024-09-12 17:09:57 INFO::Annotating ctwas finemapping result ...
2024-09-12 17:10:01 INFO::add gene_name and gene_typeWarning in left_join(., gene_annot, by = "gene_id", multiple = "all"): Detected an unexpected many-to-many relationship between `x` and `y`.
i Row 185 of `x` matches multiple rows in `y`.
i Row 3411 of `y` matches multiple rows in `x`.
i If a many-to-many relationship is expected, set `relationship =
"many-to-many"` to silence this warning.2024-09-12 17:10:02 INFO::split PIPs for traits mapped to multiple genes
2024-09-12 17:10:02 INFO::use gene mid positions
2024-09-12 17:10:02 INFO::add SNP positionsComparing results from 2 settings
[1] "all genes discovered by 4 weights setting were overlapped with 8 weights setting"Unique genes reported by 8 weights setting
We notice TNFRSF6B PIP was from predictdb sQTL, it should be discovered in the 4 weights setting. And this gene has some known roles in IBD.
https://pubmed.ncbi.nlm.nih.gov/23965943/
https://jbiomedsci.biomedcentral.com/articles/10.1186/s12929-017-0347-7
https://www.nature.com/articles/s41598-021-88489-w

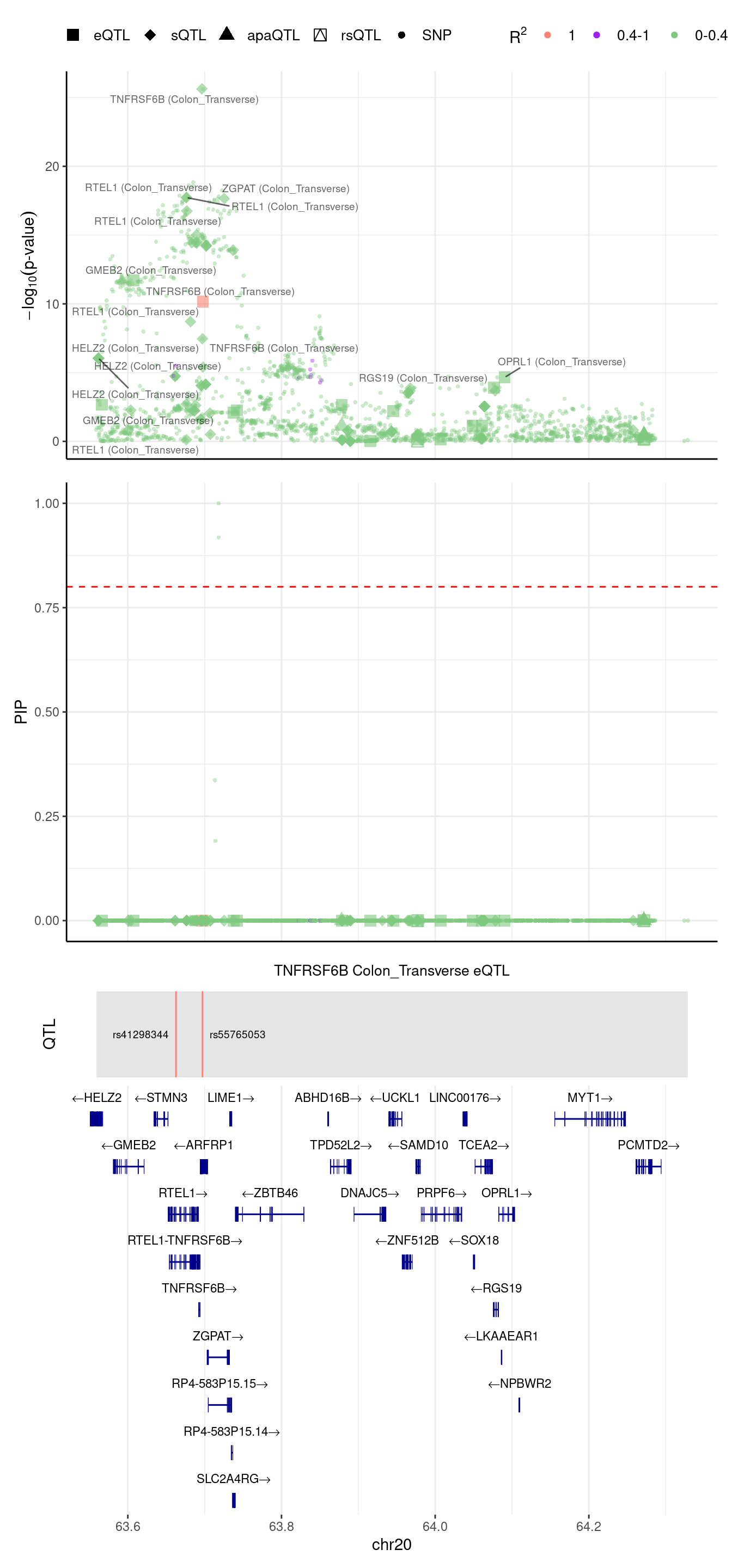

[1] "Locus plot -- 4 weights setting"[1] "The estimated L = 3"2024-09-12 17:10:08 INFO::focal gene: TNFRSF6B
2024-09-12 17:10:08 INFO::focal id: ENSG00000243509.4|expression_Colon_Transverse
2024-09-12 17:10:08 INFO::plot locus range: chr20 63558727,64328976
2024-09-12 17:10:09 INFO::TNFRSF6B Colon_Transverse eQTL QTLs
2024-09-12 17:10:09 INFO::QTL positions: 63662692,63697127

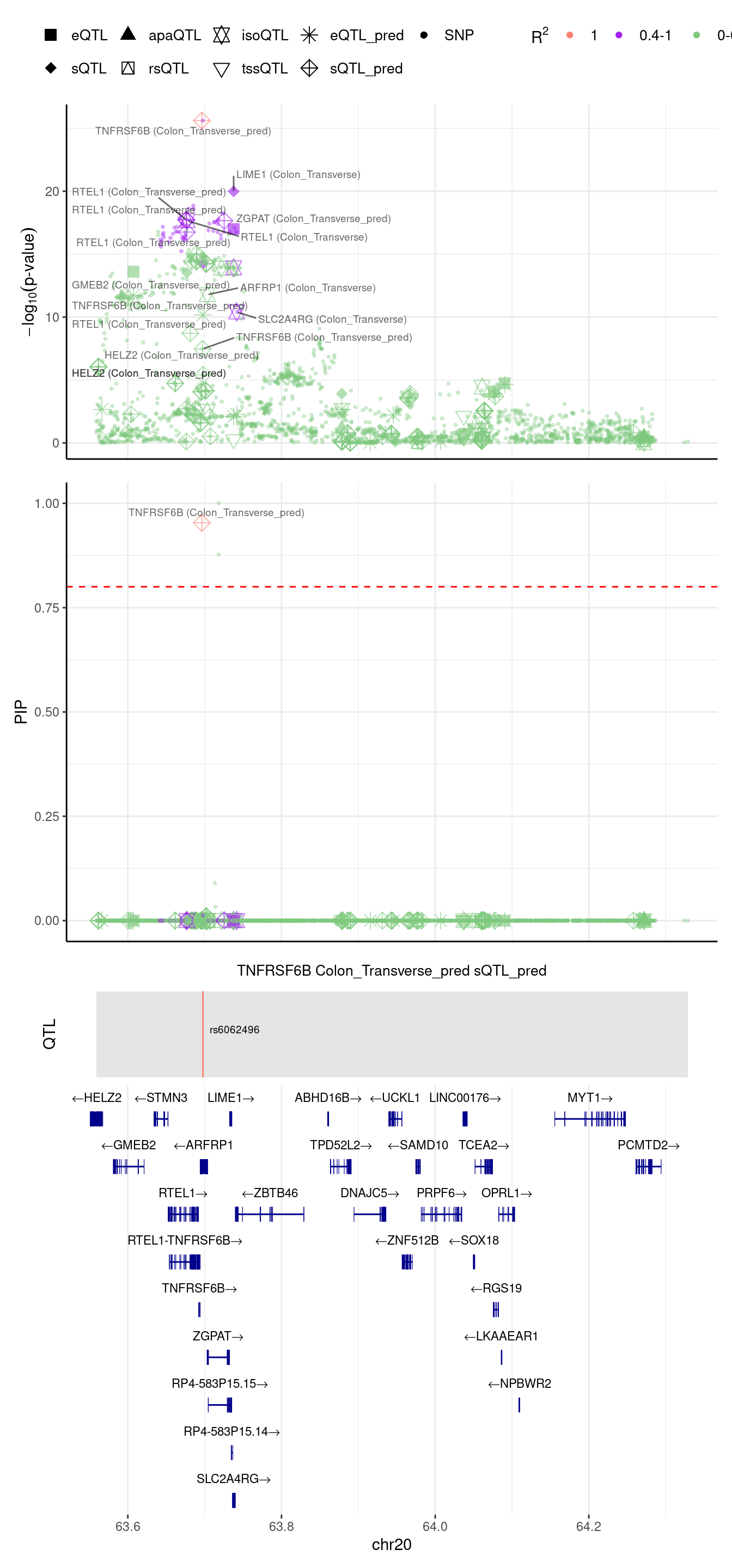

[1] "Locus plot -- 8 weights setting"[1] "The estimated L = 3"2024-09-12 17:10:13 INFO::focal gene: TNFRSF6B
2024-09-12 17:10:13 INFO::focal id: intron_20_63695854_63696760|splicing_Colon_Transverse
2024-09-12 17:10:13 INFO::plot locus range: chr20 63558727,64328976
2024-09-12 17:10:13 INFO::TNFRSF6B Colon_Transverse_pred sQTL_pred QTLs
2024-09-12 17:10:13 INFO::QTL positions: 63697746
[1] "weights for "
[1] "ENSG00000243509:chr20:63695854:63696760:clu_44474_+|splicing_Colon_Transverse"
weight
rs6011040 -0.0211776
rs8957 -0.0255221
[1] "weights for "
[1] "ENSG00000243509.4|expression_Colon_Transverse"
weight
rs41298344 -0.1634486
rs55765053 0.0848684
[1] "weights for "
[1] "intron_20_63697191_63697328|splicing_Colon_Transverse"
weight
rs55765053 0.2576402
[1] "weights for "
[1] "intron_20_63697522_63698280|splicing_Colon_Transverse"
weight
rs74748720 -0.01402964
[1] "weights for "
[1] "intron_20_63695854_63696760|splicing_Colon_Transverse"
weight
rs6062496 -0.0549018The LD for the high pip SNPs in 4 weights setting and the sQTLs in 8 weights setting. The SNPs in row1 and row2 (column1 and column2) are the high pip SNPs in 4 weights setting.
We notice that, the 2 high pip SNPs are in LD themselves. And they are in LD with rs6011040 and rs8957, the sQTL for ENSG00000243509:chr20:63695854:63696760:clu_44474_+|splicing_Colon_Transverse, whose susie pip = 7.516698e-11 in 8 weights setting.
| RS_number | rs6089961 | rs202143810 | rs41298344 | rs55765053 | rs6062496 | rs74748720 | rs6011040 | rs8957 |
|---|---|---|---|---|---|---|---|---|
| rs6089961 | 1.0 | 0.963 | 0.164 | 0.021 | 0.364 | 0.009 | 0.592 | 0.447 |
| rs202143810 | 0.963 | 1.0 | 0.152 | 0.02 | 0.35 | 0.008 | 0.569 | 0.445 |
| rs41298344 | 0.164 | 0.152 | 1.0 | 0.004 | 0.071 | 0.002 | 0.103 | 0.128 |
| rs55765053 | 0.021 | 0.02 | 0.004 | 1.0 | 0.055 | 0.003 | 0.034 | 0.028 |
| rs6062496 | 0.364 | 0.35 | 0.071 | 0.055 | 1.0 | 0.023 | 0.611 | 0.486 |
| rs74748720 | 0.009 | 0.008 | 0.002 | 0.003 | 0.023 | 1.0 | 0.014 | 0.012 |
| rs6011040 | 0.592 | 0.569 | 0.103 | 0.034 | 0.611 | 0.014 | 1.0 | 0.791 |
| rs8957 | 0.447 | 0.445 | 0.128 | 0.028 | 0.486 | 0.012 | 0.791 | 1.0 |
However, the earlier 2 SNPs still have high pip

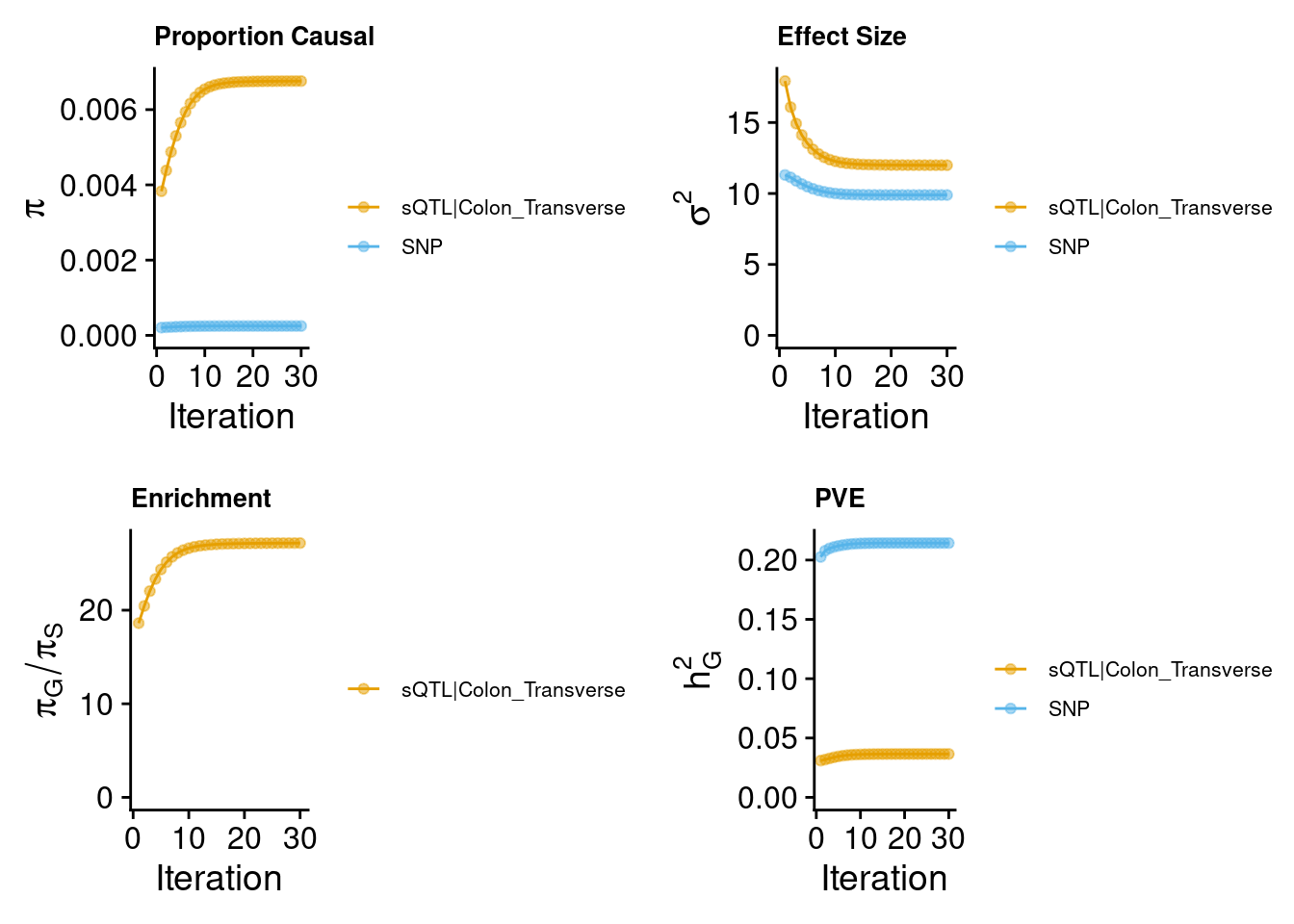

sQTL (predictdb) only
| Version | Author | Date |
|---|---|---|
| 6c40cbe | XSun | 2024-09-12 |
2024-09-12 17:10:31 INFO::Annotating ctwas finemapping result ...
2024-09-12 17:10:36 INFO::add gene_name and gene_type
2024-09-12 17:10:36 INFO::split PIPs for traits mapped to multiple genes
2024-09-12 17:10:36 INFO::use gene mid positions
2024-09-12 17:10:36 INFO::add SNP positionsFor the earlier example, TNFRSF6B.
[1] "Locus plot -- sQTL setting"[1] "The estimated L = 3"2024-09-12 17:10:39 INFO::focal gene: TNFRSF6B
2024-09-12 17:10:39 INFO::focal id: intron_20_63695854_63696760|splicing_Colon_Transverse
2024-09-12 17:10:39 INFO::plot locus range: chr20 63558727,64328976
2024-09-12 17:10:39 INFO::TNFRSF6B Colon_Transverse sQTL QTLs
2024-09-12 17:10:39 INFO::QTL positions: 63697746
| Version | Author | Date |
|---|---|---|
| 6c40cbe | XSun | 2024-09-12 |
TNFRSF6B and different settings
rs202143810
| weights | pre-estimated L | genes with PIP > 0.8 | SNPs with PIP > 0.8 |
|---|---|---|---|
| predictdb eQTL + sQTL | 3 | / | rs6089961, rs202143810 |
| predictdb eQTL + sQTL | set L=1 manually | TNFRSF6B | / |
| predictdb eQTL + sQTL | set L=10 manually | ARFRP: combined pip > 0.8 | rs202143810 |
| predictdb sQTL | 3 | TNFRSF6B | rs6089961, rs202143810 |
| predictdb eQTL + sQTL + Munro rsQTL + apaQTL | 3 | / | rs6089961, rs202143810 |
| predictdb eQTL + sQTL + Munro rsQTL + apaQTL | set L=10 manually | ARFRP: combined pip > 0.8 | rs6089961, rs202143810 |
| predictdb eQTL + sQTL + Munro 6 modalities | 3 | TNFRSF6B | rs6089961, rs202143810 |
| Munro 6 modalities, region merge | 4 | / | rs6089961, rs202143810 |
