Introduction

Data source

Normalized RNA phenotype were shared by Munro et al

Covariates are downloaded from https://pantry.pejlab.org/

Genotype are from gtex v8, we imputed the missing genotype using beagle

Workflow

Scaling and covariates

We first regressed out the covariates from both the phenotype and genotype matrices. Afterward, we scaled the matrices to ensure comparability across samples.

Cross validation

We utilized the processed RNA phenotype and genotype data for cross-validation.

For RNA phenotype in each tissue, we partitioned the available samples into training (80%) and testing (20%) datasets.

The analysis was limited to the RNA phenotypes that are included in the Munro’s weights

Training Phase

For each RNA molecular, we performed the following steps:

Variant Selection: We defined a ±50 kb window around the transcription start site (TSS) of each gene, following Munro et al. Variants located within this window were selected for analysis.
Fine-Mapping with SuSiE: We applied SuSiE on with L = 1 and L = 5 to the processed RNA phenotype and genotype and identified the top variants from the credible sets.
Effect Size Estimation:

We employed two methods to estimate effect sizes:

**Linear Regression:**

For the selected variants, we re-fitted a multiple linear regression model:

model <- lm(rna_select_train ~ geno_snpselect_train)
effect_sizes <- coef(model)

**Elastic-Net Model:**

This method was applied only to RNA phenotypes with more than one QTL:

enet = cv.glmnet(
x = geno_snpselect_train,
y = rna_select_train,
alpha = 0.5,
nfolds = 10,
standardize = FALSE,
penalty.factor = (1 - snp_pip)
)

effect_sizes <- coef(enet)

The estimated coefficients from this model were used as effect sizes for the selected SNPs.

Testing Phase

Using the trained effect sizes, we predicted RNA phenotypes in the testing dataset and evaluated model performance.

Evaluation

We used r2 to evaluate the performance of the prediction model

\[ R^2 = 1 - \frac{\sum (y_{\text{test}} - y_{\text{pred}})^2}{\sum (y_{\text{test}} - \bar{y}_{\text{test}})^2} \]

\(y_{\text{test}}\): Observed values in the test set,
\(y_{\text{pred}}\): Predicted values,
\(\bar{y}_{\text{test}}\): Mean of the test set observed values.

We pooled all cross-validated predictions into a single vector to get a global \(R^2\) for each RNA phenotype.

library(RSQLite)
library(ggplot2)
library(gridExtra)
library(dplyr)
library(tidyr)

name_mapping <- read.table("/project2/xinhe/shared_data/multigroup_ctwas/weights/files_Munro/Munro_name_mapping.txt")
colnames(name_mapping) <- c("Munro_name","gtex_name")

Comparing L=1 and L=5

RNA stability

qtl = "stability"

L=1
folder_pred_L1 <- paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale_allqtl/",qtl,"/L",L,"/rsq_summary_fusionscale_allqtl/")
folder_sample_L1<- paste0("/project/xinhe/xsun/weights_training/cv/samples/",qtl,"/")

L=5
folder_pred_L5 <- paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale_allqtl/",qtl,"/L",L,"/rsq_summary_fusionscale_allqtl/")
folder_sample_L5<- paste0("/project/xinhe/xsun/weights_training/cv/samples/",qtl,"/")
folder_round1 <- paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale/",qtl,"/L",L,"/round1/")

sum <- c()
p <- list()
for (tissue in name_mapping$Munro_name) {

  if(!file.exists(paste0(folder_pred_L1,tissue,"_rsq_fusion_lm.RDS")) | !file.exists(paste0(folder_pred_L5,tissue,"_rsq_fusion_lm.RDS"))) next

  tissue_gtex <- name_mapping$gtex_name[which(name_mapping$Munro_name == tissue)]

  ## sample size
  sample_test <- readRDS(paste0(folder_round1,tissue,"_samples_testing.RDS"))
  sample_test <- length(sample_test)
  sample_train <- readRDS(paste0(folder_round1,tissue,"_samples_training.RDS"))
  sample_train <- length(sample_train)
  sample_total <- sample_test + sample_train

  ## L=1
  rsq_L1 <- readRDS(paste0(folder_pred_L1, tissue, "_rsq_fusion_lm.RDS"))
  n_withcs_L1 <- nrow(rsq_L1)
  n_posrsq_L1 <- sum(rsq_L1$rsq>0,na.rm = T)

  ## L=5
  rsq_L5 <- readRDS(paste0(folder_pred_L5, tissue, "_rsq_fusion_lm.RDS"))
  n_withcs_L5 <- nrow(rsq_L5)
  n_posrsq_L5 <- sum(rsq_L5$rsq>0,na.rm = T)

  n_overlap_withcs <- sum(rsq_L1$gene %in% rsq_L5$gene)
  n_overlap_posrsq <- sum(rsq_L1$gene[rsq_L1$rsq > 0] %in% rsq_L1$gene[rsq_L5$rsq > 0])

  ## total rna & average qtl
  weights <- readRDS(paste0(folder_round1, tissue, "_training_effectsizes.RDS"))
  n_rna <- length(weights)

  weights_nonnull <- Filter(Negate(is.null), weights)
  avg_qtl <- mean(unlist(lapply(weights_nonnull,length)),na.rm = T)

  tmp_tissue <- c(tissue_gtex,sample_total, n_rna, n_withcs_L1, n_withcs_L5,round(avg_qtl,digits = 4), n_overlap_withcs, n_posrsq_L1, n_posrsq_L5, n_overlap_posrsq)
  sum <- rbind(sum, tmp_tissue)

  rsq_L1_df <- data.frame(id = rsq_L1$gene, rsq_L1 = rsq_L1$rsq, count_L1 = rsq_L1$count)
  rsq_L5_df <- data.frame(id = rsq_L5$gene, rsq_L5 = rsq_L5$rsq, count_L5 = rsq_L5$count)

  rsq_merge <- merge(rsq_L1_df, rsq_L5_df , by = "id")

  p[[tissue_gtex]] <-  ggplot(rsq_merge, aes(x=rsq_L1, y=rsq_L5, color=factor(count_L5))) +
    geom_point(size =1) +
    labs(x = "rsq-L1", y="rsq-L5", color = "Count_L5") +
    geom_abline(slope = 1, intercept = 0, col="red") +
    ggtitle(tissue_gtex) +
    scale_color_brewer(palette = "Set1") +
    theme_minimal()

}

sum <- as.data.frame(sum)
rownames(sum) <- NULL
colnames(sum) <- c("tissue","sample_size_total", "n_rna_total", "n_rna_withcs_L1", "n_rna_withcs_L5", "avg_qtl_L5", "n_overlap_withcs", "n_rna_rsq+_L1", "n_rna_rsq+_L5", "n_overlap_rsq+")
sum <- sum[order(as.numeric(sum$sample_size_total),decreasing = T),]

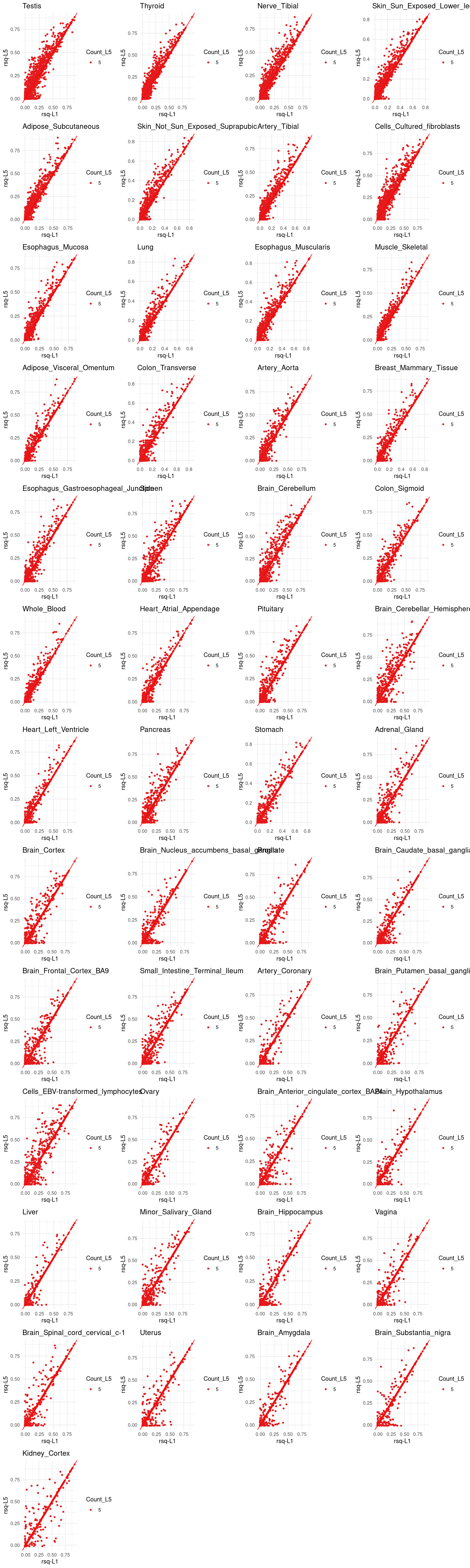

grid.arrange(grobs = p, ncol = 4)

DT::datatable(sum,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Comparing L=1 & L=5'),options = list(pageLength = 10) )

Comparing with Munro’s prediction model

RNA stability – L=1

qtl = "stability"
L=1

folder_pred <-  paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale_allqtl/",qtl,"/L",L,"/rsq_summary_fusionscale_allqtl/")
folder_round1<- paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale/",qtl,"/L",L,"/round1/")

sum <- c()
for (tissue in name_mapping$Munro_name) {

   if(!file.exists(paste0(folder_pred,tissue,"_rsq_fusion_lm.RDS"))) next

  tissue_gtex <- name_mapping$gtex_name[which(name_mapping$Munro_name == tissue)]

  ### our weights
  file_rna_pheno <- paste0("/project/xinhe/xsun/weights_training/data/rna_pheno_norm/",tissue,".",qtl,".norm.bed.gz")
  n_rna <- as.integer(system(sprintf("zcat %s | wc -l", file_rna_pheno), intern = TRUE)) - 1

  weights <- readRDS(paste0(folder_round1, tissue, "_training_effectsizes.RDS"))

  rsq <- readRDS(paste0(folder_pred, tissue, "_rsq_fusion_lm.RDS"))
  n_withcs <- nrow(rsq)
  n_posrsq <- sum(rsq$rsq>0,na.rm = T)

  ### sample size
  sample_test <- readRDS(paste0(folder_round1,tissue,"_samples_testing.RDS"))
  sample_test <- length(sample_test)
  sample_train <- readRDS(paste0(folder_round1,tissue,"_samples_training.RDS"))
  sample_train <- length(sample_train)
  sample_total <- sample_test + sample_train

  ### Munro's weights
  df_munro <- read.table(paste0("/project/xinhe/xsun/weights_training/data/weights_munro/",qtl,"/",tissue,".",qtl,".twas_weights.profile"), header = T)
  n_rna_withweights_munro <- nrow(df_munro)
  ### overlap
  n_overlap_withcs <- sum(rsq$gene %in% df_munro$id)
  n_overlap_posrsq <- sum(rsq$gene[rsq$rsq>0] %in% df_munro$id,na.rm=T)

  tmp_tissue <- c(tissue_gtex,sample_total,n_rna,n_rna_withweights_munro, n_withcs,n_overlap_withcs,n_posrsq,n_overlap_posrsq)

  sum <- rbind(sum, tmp_tissue)
}

sum <- as.data.frame(sum)
rownames(sum) <- NULL
colnames(sum) <- c("tissue","sample_size_total","n_rna_total","n_munro_weights","n_rna_withsusie_cs","overlap_cs_munro","n_rna_rsq+","overlap_rsq+_munro")

sum <- sum[order(as.numeric(sum$sample_size_total),decreasing = T),]

DT::datatable(sum,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Summary for the prediction models'),options = list(pageLength = 10) )

folder_munroweights<- paste0("/project/xinhe/xsun/weights_training/data/weights_munro/",qtl,"/")

p <- list()
p2 <- list()
for (tissue in name_mapping$Munro_name) {

  if(!file.exists(paste0(folder_pred,tissue,"_rsq_fusion_lm.RDS"))) next

  tissue_gtex <- name_mapping$gtex_name[which(name_mapping$Munro_name == tissue)]

  ### our weights

  rsq <- readRDS(paste0(folder_pred, tissue, "_rsq_fusion_lm.RDS"))
  rsq <- data.frame(id = rsq$gene, rsq = rsq$rsq, count=rsq$count)

  ### Munro's weights

  summary_munro <- read.table(paste0(folder_munroweights,tissue,".",qtl,".twas_weights.profile"),header = T)

  merged_df <- merge(rsq, summary_munro, by= "id")
  merged_df <- merged_df %>%
    filter(!is.na(rsq) & !is.na(lasso.r2) & !is.na(count) & is.finite(rsq) & is.finite(lasso.r2))

  p[[tissue_gtex]] <- ggplot(merged_df, aes(x=rsq, y=lasso.r2, color=factor(count))) +
    geom_point(size =1) +
    labs(x = "rsq-topsnpfromsusie", y="rsq-lasso-munro", color ="Count") +
    geom_abline(slope = 1, intercept = 0, col="red") +
    ggtitle(tissue_gtex) +
    scale_color_brewer(palette = "Set1") +
    theme_minimal()

  df <- merged_df %>% pivot_longer(cols = c("rsq","lasso.r2"), names_to = "variable", values_to = "value") %>%
    mutate(variable = recode(variable,
                             rsq = "rsq_susie",
                             lasso.r2 = "rsq_lasso_munro"))

  p2[[tissue_gtex]] <- ggplot(df, aes(x=variable, y=value)) +
    geom_boxplot() +
    labs(x="", y ="rsq", title = tissue_gtex) +
    theme_minimal()

}

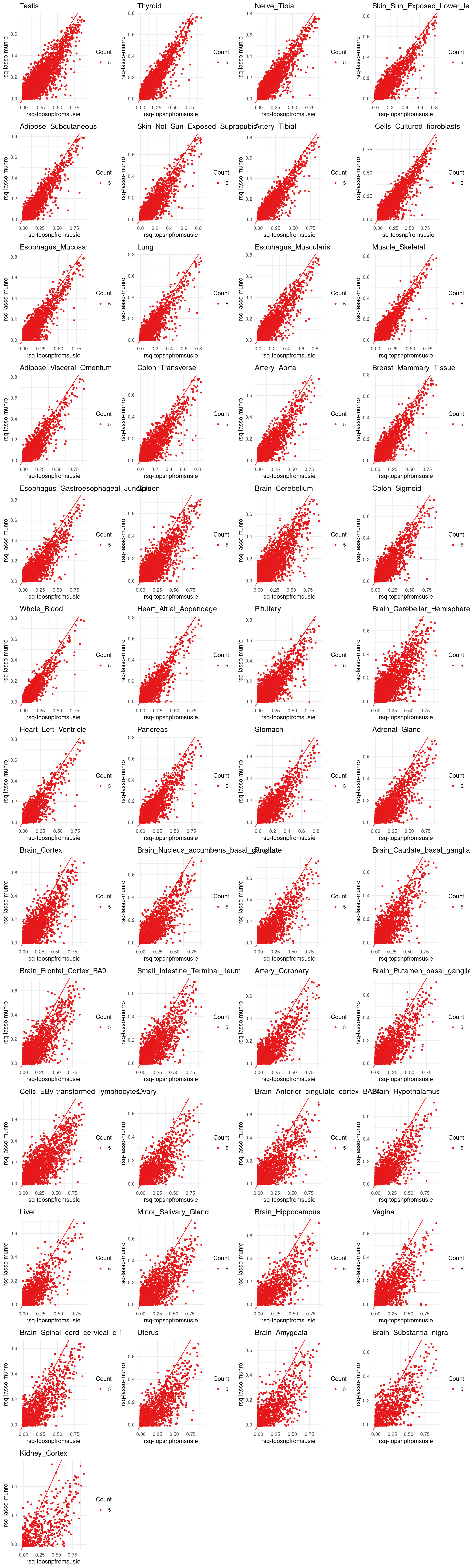

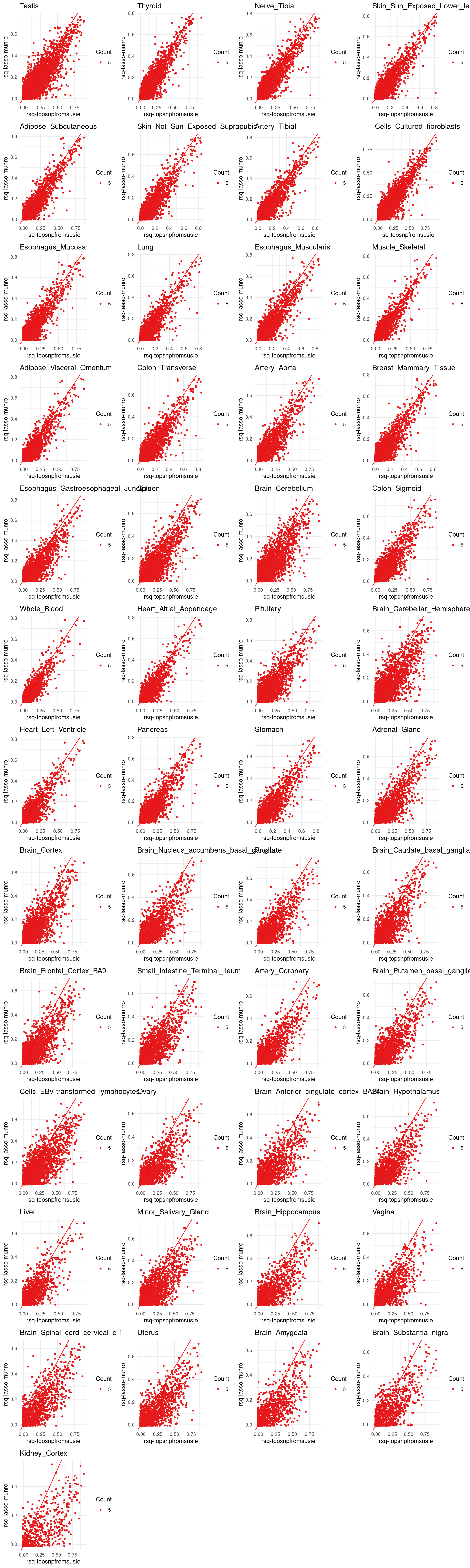

grid.arrange(grobs = p, ncol = 4)

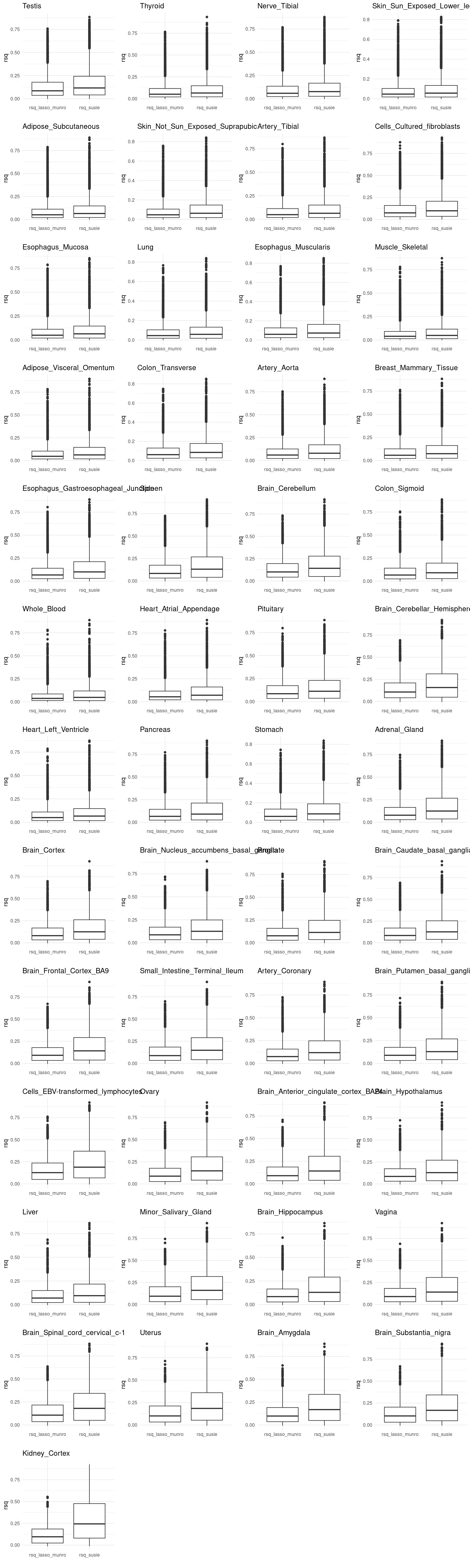

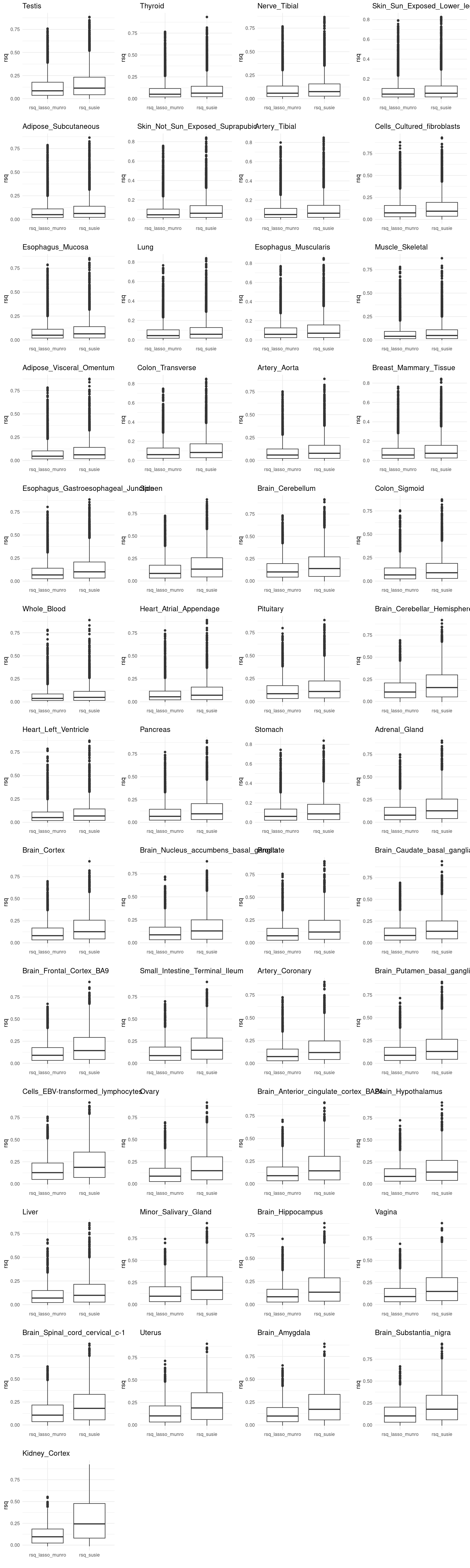

grid.arrange(grobs = p2, ncol = 4)

RNA stability – L=5

qtl = "stability"
L=5

folder_pred <-  paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale_allqtl/",qtl,"/L",L,"/rsq_summary_fusionscale_allqtl/")
folder_round1<- paste0("/project/xinhe/xsun/weights_training/cv/multiplesets_fusionscale/",qtl,"/L",L,"/round1/")

sum <- c()
for (tissue in name_mapping$Munro_name) {

   if(!file.exists(paste0(folder_pred,tissue,"_rsq_fusion_lm.RDS"))) next

  tissue_gtex <- name_mapping$gtex_name[which(name_mapping$Munro_name == tissue)]

  ### our weights
  file_rna_pheno <- paste0("/project/xinhe/xsun/weights_training/data/rna_pheno_norm/",tissue,".",qtl,".norm.bed.gz")
  n_rna <- as.integer(system(sprintf("zcat %s | wc -l", file_rna_pheno), intern = TRUE)) - 1

  weights <- readRDS(paste0(folder_round1, tissue, "_training_effectsizes.RDS"))

  rsq <- readRDS(paste0(folder_pred, tissue, "_rsq_fusion_lm.RDS"))
  n_withcs <- nrow(rsq)
  n_posrsq <- sum(rsq$rsq>0,na.rm = T)

  ### sample size
  sample_test <- readRDS(paste0(folder_round1,tissue,"_samples_testing.RDS"))
  sample_test <- length(sample_test)
  sample_train <- readRDS(paste0(folder_round1,tissue,"_samples_training.RDS"))
  sample_train <- length(sample_train)
  sample_total <- sample_test + sample_train

  ### Munro's weights
  df_munro <- read.table(paste0("/project/xinhe/xsun/weights_training/data/weights_munro/",qtl,"/",tissue,".",qtl,".twas_weights.profile"), header = T)
  n_rna_withweights_munro <- nrow(df_munro)
  ### overlap
  n_overlap_withcs <- sum(rsq$gene %in% df_munro$id)
  n_overlap_posrsq <- sum(rsq$gene[rsq$rsq>0] %in% df_munro$id,na.rm=T)

  tmp_tissue <- c(tissue_gtex,sample_total,n_rna,n_rna_withweights_munro, n_withcs,n_overlap_withcs,n_posrsq,n_overlap_posrsq)

  sum <- rbind(sum, tmp_tissue)
}

sum <- as.data.frame(sum)
rownames(sum) <- NULL
colnames(sum) <- c("tissue","sample_size_total","n_rna_total","n_munro_weights","n_rna_withsusie_cs","overlap_cs_munro","n_rna_rsq+","overlap_rsq+_munro")

sum <- sum[order(as.numeric(sum$sample_size_total),decreasing = T),]

DT::datatable(sum,caption = htmltools::tags$caption( style = 'caption-side: left; text-align: left; color:black;  font-size:150% ;','Summary for the prediction models'),options = list(pageLength = 10) )

folder_munroweights<- paste0("/project/xinhe/xsun/weights_training/data/weights_munro/",qtl,"/")

p <- list()
p2 <- list()
for (tissue in name_mapping$Munro_name) {

  if(!file.exists(paste0(folder_pred,tissue,"_rsq_fusion_lm.RDS"))) next

  tissue_gtex <- name_mapping$gtex_name[which(name_mapping$Munro_name == tissue)]

  ### our weights

  rsq <- readRDS(paste0(folder_pred, tissue, "_rsq_fusion_lm.RDS"))
  rsq <- data.frame(id = rsq$gene, rsq = rsq$rsq, count=rsq$count)

  ### Munro's weights

  summary_munro <- read.table(paste0(folder_munroweights,tissue,".",qtl,".twas_weights.profile"),header = T)

  merged_df <- merge(rsq, summary_munro, by= "id")
  merged_df <- merged_df %>%
    filter(!is.na(rsq) & !is.na(lasso.r2) & !is.na(count) & is.finite(rsq) & is.finite(lasso.r2))

  p[[tissue_gtex]] <- ggplot(merged_df, aes(x=rsq, y=lasso.r2, color=factor(count))) +
    geom_point(size =1) +
    labs(x = "rsq-topsnpfromsusie", y="rsq-lasso-munro", color ="Count") +
    geom_abline(slope = 1, intercept = 0, col="red") +
    ggtitle(tissue_gtex) +
    scale_color_brewer(palette = "Set1") +
    theme_minimal()

  df <- merged_df %>% pivot_longer(cols = c("rsq","lasso.r2"), names_to = "variable", values_to = "value") %>%
    mutate(variable = recode(variable,
                             rsq = "rsq_susie",
                             lasso.r2 = "rsq_lasso_munro"))

  p2[[tissue_gtex]] <- ggplot(df, aes(x=variable, y=value)) +
    geom_boxplot() +
    labs(x="", y ="rsq", title = tissue_gtex) +
    theme_minimal()

}

grid.arrange(grobs = p, ncol = 4)

grid.arrange(grobs = p2, ncol = 4)

sessionInfo()

R version 4.2.0 (2022-04-22)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.3.13-el7-x86_64/lib/libopenblas_haswellp-r0.3.13.so

locale:
[1] C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] tidyr_1.3.0   dplyr_1.1.4   gridExtra_2.3 ggplot2_3.5.1 RSQLite_2.3.1

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.0   xfun_0.41          bslib_0.3.1        purrr_1.0.2
 [5] colorspace_2.0-3   vctrs_0.6.5        generics_0.1.2     htmltools_0.5.2
 [9] yaml_2.3.5         utf8_1.2.2         blob_1.2.3         rlang_1.1.2
[13] jquerylib_0.1.4    later_1.3.0        pillar_1.9.0       glue_1.6.2
[17] withr_2.5.0        DBI_1.2.2          bit64_4.0.5        RColorBrewer_1.1-3
[21] lifecycle_1.0.4    stringr_1.5.1      munsell_0.5.0      gtable_0.3.0
[25] workflowr_1.7.0    htmlwidgets_1.5.4  evaluate_0.15      memoise_2.0.1
[29] labeling_0.4.2     knitr_1.39         fastmap_1.1.0      crosstalk_1.2.0
[33] httpuv_1.6.5       fansi_1.0.3        highr_0.9          Rcpp_1.0.12
[37] DT_0.22            promises_1.2.0.1   scales_1.3.0       cachem_1.0.6
[41] jsonlite_1.8.0     farver_2.1.0       fs_1.5.2           bit_4.0.4
[45] digest_0.6.29      stringi_1.7.6      rprojroot_2.0.3    grid_4.2.0
[49] cli_3.6.1          tools_4.2.0        magrittr_2.0.3     sass_0.4.1
[53] tibble_3.2.1       pkgconfig_2.0.3    rmarkdown_2.25     rstudioapi_0.13
[57] R6_2.5.1           git2r_0.30.1       compiler_4.2.0

Training stability weights using FUSION pipeline

XSun

2025-04-01
